Camera IP EYENOR ENC-HBU5Z-200R-45 | Made in UK

MODEL

Model No.

ENC-HBU5Z-200R-45

Type

2MP 60fps Starlight IP H.265 Bullet Camera

Image Sensor

1/1.8″, 2Megapixel, Progressive scan CMOS

CAMERA

Lens

6.5 ~ 143 mm, AF automatic focusing and motorized zoom lens

Angle of View (H)

59° ~ 3°

Zoom/Focus

22X Optical Zoom / Auto Focus

Shutter

Auto/Manual, 1~1/100000 s

Min. Illumination

Colour: 0.0005Lux @(F1.5), 0 Lux with IR

AGC

Auto/Manual

IR Range

Up to 200M

Day/Night

IR-Cut filter with auto switch (ICR)

Iris

Auto/Manual, F1.5~F3.4, DC-Iris

Defog

Digital Defog

S/N

>52dB

WDR

120dB

Digital Noise Reduction

2D/3D DNR

VIDEO

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Main Stream: 2MP (1920*1080), Max 60fps;
Sub Stream: 2MP (1920*1080), Max 60fps;
Third Stream: D1 (720*576), Max 60fps

Corridor Mode

Supported

ROI

Supported

HLC

Supported

BLC

Supported

OSD

Up to 8 OSDs

Motion Detection

Up to 4 areas

Privacy Mask

Up to 8 areas

Behavior Detection

Intrusion, Crossing line, Motion detection

SMART

Exception Detection

Audio detection

Intelligent Identification

Face detection, Defocus, Scene Change, Abandoned Object, Missing Object

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

AUDIO

Audio Compression

G.711U/G.711A

Two-way audio

Supported

Suppression

Supported

Sampling Rate

8 KHZ

Protocols

IPV6, IPV4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS,
SMTP, 802.1x, SNMP

NETWORK/INTERFACE

Compatible Integration

ONVIF(Profile S/G), API

Audio I/O

1/1

Alarm I/O

2/1

Serial Port

1 RS485

Network

1 RJ45 10M/100M Base-TX Ethernet

BNC Output

Supported

GENERAL

Power Supply

24 V AC ±25%, PoE+ (IEEE802.3at)

Power consumption: Max 21W

Operating Temperature

-40°C ~ +60°C, Humidity ≤ 95% RH (Non-condensing)

Storage

Micro SD, Up to 256 GB

Network Storage

ANR

Ingress Protection

IP67

Reset Button

Supported

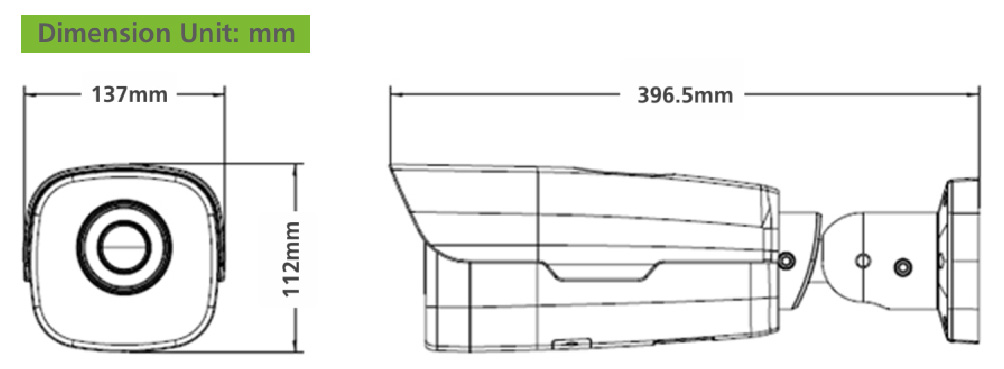

Dimensions

396.5x137x112mm

Weight

3.7Kg
