Overview
Day/night functionality,Smart IR , up to 30M,IR anti-reflection window to increase the infrared transmittance, 2D/3D DNR (Digital Noise Reduction), H.265+,H.265, H.264, MJPEG,Triple streams, ONVIF (Profile S/G), 3-Axis, IP67, IK10
Specification
MODEL |
Model No. |
ENV-HVD5V-30R-16 |
|
Type |
2MP IR IP H.265 Vandal Proof Dome Camera |
||
|
Image Sensor |
1/2.7″, 2 MP, Progressive scan CMOS |
|
CAMERA
|
Lens |
2.8~12mm varifocal lens |
|
Angle of View (H) |
112.7°~28.1° |
||
Zoom/Focus |
Manual(Varifocal) |
||
Shutter |
Auto/Manual, 1~1/100000s |
||
Min. Illumination |
Colour: 0.02Lux (F1.6) BW: 0 Lux with IR |
||
AGC |
Auto/Manual |
||
IR Range |
30M |
||
Day/Night |
IR-Cut filter with auto switch (ICR) |
||
Defog |
Digital Defog |
||
WDR |
dWDR |
||
VIDEO & AUDIO
|
Max. Resolution |
1920 x 1080 |
|
Video Compression |
H.265+, H.265, H.264, MJPEG |
||
Frame Rate |
Main Stream:1080P (1920×1080): Max. 30 fps; |
||
Video Streaming |
Triple |
||
Corridor Mde |
Supported |
||
2D/3D DNR |
Supported |
||
HLC/BLC |
Supported |
||
OSD |
Up to 4 OSDs |
||
Privacy Mask |
Up to 4 areas |
||
ROI |
Up to 2 areas |
||
Motion Detection |
Up to 4 areas |
||
INTERFACE
|
Protocols |
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, |
|
Compatibility |
ONVIF (Profile S/G), API |
||
Network |
10M/100MBase-TX Ethernet |
||
GENERAL
|
Power |
DC12V±25%, PoE (IEEE802.3 af) |
|
Edge Storage |
Micro SD Card, Up to 256GB |
||
Working Environment |
-40°C ~ +60°C, Humidity 10%~95% RH (non-condensing) |
||
Ingress Protection |
IP67 |
||
Vandal Resistant |
IK10 |
||

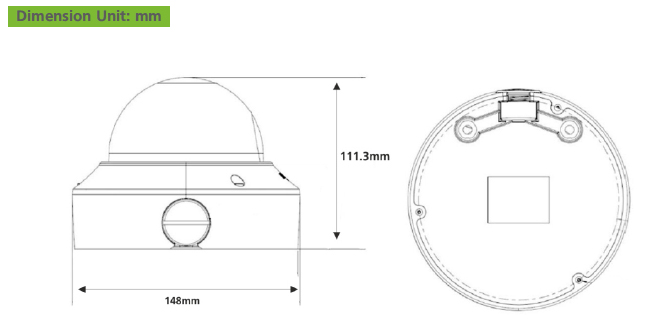

Dimensions |
148x148x111.3 mm |
||
Weight |
0.92Kg |
Ordering Information
Part Number | Description | Standard Quantity |
ENV-HVD5V-30R-16 |
2MP IR IP H.265 Vandal Proof Dome Camera with 2.8 to 12mm Varifocal Lens, PoE,SD Card slot and 30M IR Support |
1 |
Downloads
Datasheet | 302.40KB | DOWNLOAD |
