Overview
Day/Night functionality, Smart IR, Up to 30M, 2D/3D DNR,H.265+, H.265, H.264, MJPEG,Corridor Mode, Triple Streams,ONVIF (Profile S/G), 3-Axis, IP67
Specification
Model |
Model No. |
ENV-HCDAF-30R-15 |
Type |
8MP IR IP H.265 Compact Dome Camera |
|
|
Image Sensor |
1/2.5″, 8.MP, progressive scan, CMOS |
CAMERA |
Lens |
2.8mm(Optional 4mm) |
Angle of View (H) |
118.1° (91.6° for 4mm) |
|
Shutter |
Auto/Manual, 1~1/100000 s |
|
Min. Illumination |
Colour: 0.05 Lux( F2.0), 0 Lux with IR |
|
AGC |
Auto/Manual |
|
Day/Night |
IR Cut Filter with auto switch (ICR) |
|
Digital Noise Reduction |
2D/3D |
|
S/N |
>52dB |
|
IR Range |
Up to 30M |
|
WDR |
120dB |
|
Defog |
Digital Defog |
|
VIDEO
|
Max. Resolution |
3840×2160 |
Video Compression |
H.265+, H.265, H.264,MJPEG |
|
Frame Rate |
Main Stream: 8MP (3840*2160), Max 20fps; Third Stream:D1(720*576),Max 30fps |
|
Video Streaming |
Triple |
|
Corridor Mode |
Supported |
|
HLC/BLC |
Supported |
|
OSD |
Up to 8 OSDs |
|
Privacy Mask |
Up to 8 areas |
|
ROI |
UP to 8 areas |
|
Motion Detection |
UP to 4 areas |
|
INTERFACE
|
Protocols |
IPV6, IPV4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS |
Compatibility |
ONVIF Profile (S/G), API |
|
Network |
10/100M Base-TX Ethernet |
|
SMART |
Behaviour Detection |
Intrusion, Cross line, Motion detection |
Intelligrnt Identification |
Face Detection, Defocus, Scene Change |
|
Statistical Analysis |
People Counting |
|
General Function |
Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication,User Authentication |
|
|
Power |
12V DC , PoE (IEEE802.3af) Power Consumption: Max 5.5W |
Working Environment |
-30°C ~ 60°C, Humidity:: ≤95% RH (non-condensing) |
|

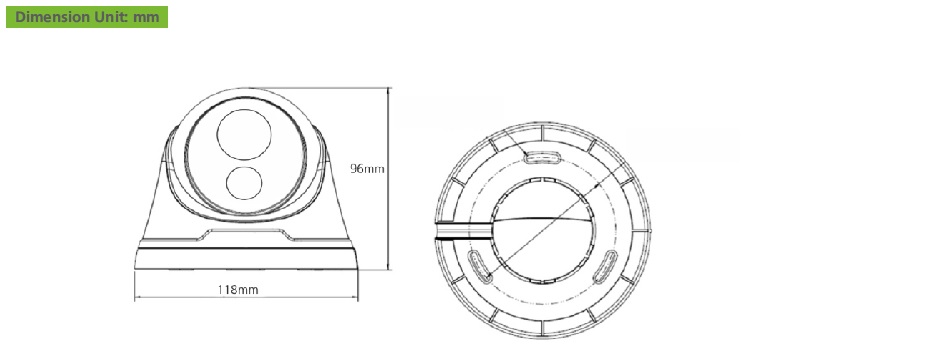

Dimensions |
126x126x94mm |
|
Weight |
0.45Kg |
|
Ingress Protection |
IP67 |
Ordering Information
Part Number | Description | Standard Quantity |
ENV-HCDAF-30R-15 |
8MP IR IP H.265 Compact Dome camera with 2.8mm(Optional 4mm) Fixed Lens, POE,WDR, Smart Analytics and 30M IR support |
1 |
Downloads
Datasheet | 744.35KB | DOWNLOAD |
