Camera IP EYENOR ENC-HCD5F-30R-68 | Made in UK

MODEL

Model No.

ENC-HCD5F-30R-68

Type

2MP H.265 IR IP Eyeball Camera

CAMERA

Image Sensor

1/2.7″, Progressive Scan, CMOS

Lens

2.8mm(3.6mm optional) Fixed lens

Angle of View (H)

105°

Shutter

Auto/Manual, 1/5-1/20,000s

Min. Illumination

Colour: 0.01 Lux @F1.2
B/W: 0 Lux @(IR LED ON)

AGC

Auto/Manual

Day/Night

IR-Cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>55dB

IR Range

Up to 20M

Defog

Digital Defog

WDR

120dB

VIDEO

 Max Resolution

 1920×1080

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

 Main Stream: 1920×1080/1280×720 @25/30fps
Sub Stream: D1/VGA/640×360/CIF/QVGA @25/30fps
Third Stream: VGA/CIF/QVGA @25/30fps

Streaming Capability

Triple Stream

ROI

Supported

EIS

Supported

HLC

Supported

Privacy Mask

Supported

Motion Detection

Supported

SMART

Behavior Detection

Perimeter, Single Virtual Fences, Double Virtual Fences

Intelligent Identification

Loiter, Multi Loiter, Missing Object, Abandoned Object

Statistical Analysis

Abnormal Speed, Converse, Illegal Parking, Signal Bad

NETWORK

Protocols

IPv4, IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP

Compatibility

ONVIF (Profile S,G)

 Network

 1 Ethernet (10/100 Base-T) RJ-45 Connector

NETWORK

Power

DC12V/POE

Power Consumption

Max 4.5W

Working Environment

-30°C ~ 50°C Humidity: ≤90% RH

Ingress Protection

 IP67

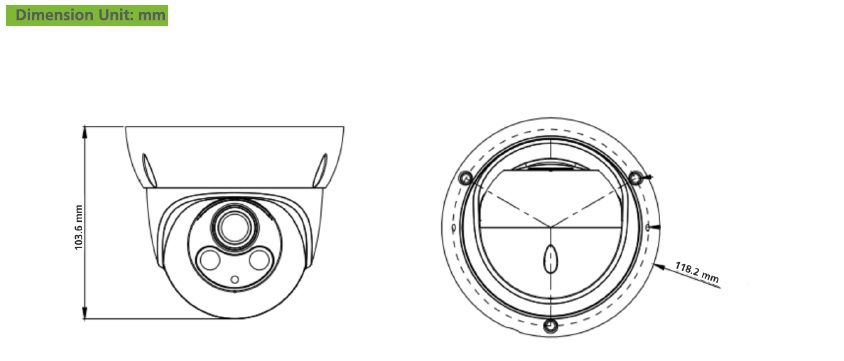

Dimensions

118.2×118.2×103.6mm

Weight

0.6Kg
