Camera IP EYENOR ENC-HCD5F-25R-61 | Made in UK

MODEL

Model No.

ENC-HCD5F-25R-61

Type

2MP H.265 IR IP Compact Dome Camera

CAMERA

Image Sensor

1/2.9″, Progressive Scan, 2.0 Megapixel, CMOS

Lens

3.6mm (2.8mm optional)

Angle of View (H)

80°

Shutter

Auto/Manual, 1/5-1/20,000s

Min. Illumination

Colour: 0.01 Lux @F1.2
B/W: 0 Lux @(IR LED ON)

AGC

Auto/Manual

Day/Night

IR-Cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>55dB

IR Range

Up to 25M

Defog

Digital Defog

WDR

dWDR

VIDEO

 Max Resolution

 1920×1080

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

 Main Stream: 1920×1080/1280×720 @25/30fps
Sub Stream: 704×576/640×360/480×360/352×288 @25/30fps

Streaming Capability

Up to 2 streams

ROI

Supported

HLC/BLC

Supported

Privacy Mask

Supported

Motion Detection

Supported

 Smart Function

 Virtual Fence, Face Detection, Human Detection,  Advanced motion detection

INTERFACE

Protocols

IPv6, IPv4, HTTP, HTTPS, TCP/UDP, RTSP/ RTP/RTCP, DHCP, NTP, SMTP, DNS, UPnP, SNMP

Compatibility

ONVIF (Profile S/G)

Network

 1 Ethernet (10/100 Base-T) RJ-45 Connector

GENERAL

Power

DC12V/POE (IEEE 802.3af)

Power Consumption

3.5W

Working Environment

-15°C ~ 55°C Humidity:≤ 90 % RH

Ingress Protection

 IP66

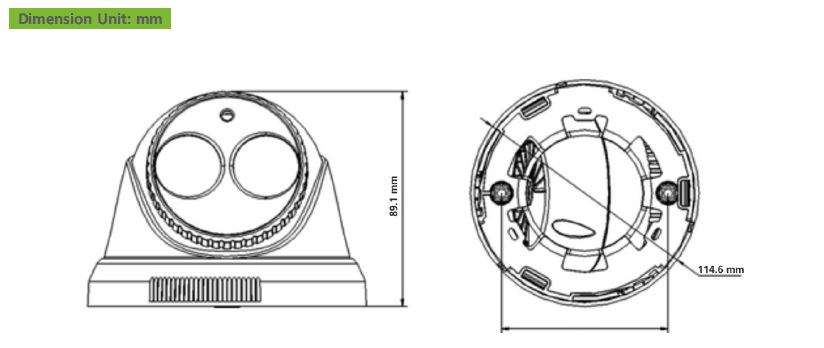

 Dimensions

114.6×114.6×89.1mm

 Weight

 0.3Kg
