Camera IP EYENOR ENC-HVD5M-30R-70 | Made in UK

MODEL

Model No.

ENC-HVD5M-30R-70

Type

2MP H.265 IR IP Vandal Proof Dome camera

CAMERA

Image Sensor

1/2″,Progressive scan, 2.0 Megapixel, CMOS

Lens

3.6 to 11mm Motorized lens

Angle of View (H)

102.3° ~ 44°

Shutter

Auto/Manual, 1/5~1/20000 s

Min. Illumination

Color: 0.001Lux @F1.2
B/W: 0 Lux @(IR LED ON)

AGC

Auto/Manual

Day/Night

IR-Cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>55dB

Smart IR

Up to 30M

Defog

Digital Defog

WDR

120dB

VIDEO

 Max Resolution

1920 x 1080

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Main Stream: : 1920×1080/1280×720 @50/60fps
Sub Stream: D1/VGA/640×360/CIF/QVGA @25/30fps
Third Stream: VGA/CIF/QVGA @25/30fps

Streaming Capability

Triple Stream

EIS/ROI

Supported

HLC/BLC

Supported

Privacy Mask

Supported

Motion Detection

Supported

 Audio Compression

 G.711U/G.711A

SMART

Behavior Detection

Perimeter, Single Virtual Fences, Double Virtual Fences

Intelligent Identification

Loiter, Multi Loiter, Missing Object, Abandoned Object

Statistical Analysis

Abnormal Speed, Converse, Illegal Parking, Signal Bad

INTERFACE

Protocols

IPv4, IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP

Compatibility

ONVIF (Profile S,G)

 CVBS Output

 Supported

 RS485

 Supported

Network

1 Ethernet (10/100 Base-T) RJ-45 Connector

Audio I/O

1/1

Alarm I/O

1/1

NETWORK

Power

DC12V/AC24V/POE (IEEE 802.3af)

Power Consumption

Max 6W

Edge Storage

Micro SD, Upto 128GB

Reset Button

 Supported

Working Environment

-40°C ~ 60°C Humidity: ≤90% RH

Ingress Protection

IP67

Vandal Resistant

IK10

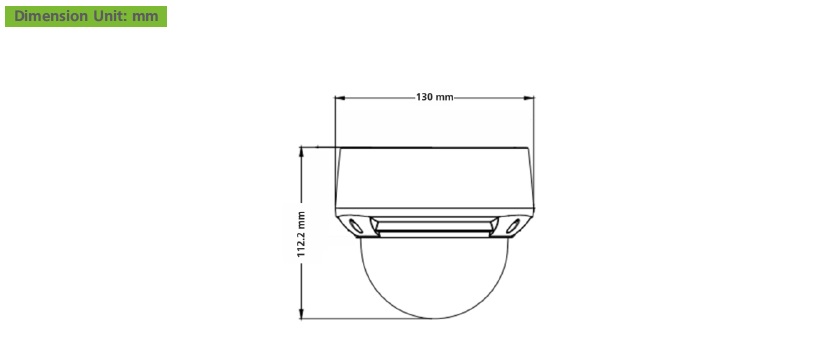

Dimensions

130x130x112mm

Weight

0.9Kg
