Overview
Day/night functionality, Smart IR, up to 50M IR Distance, Up to 120 dB Optical WDR (Wide Dynamic Range), H.265+, H.265, H.264, MJPEG, Triple streams, ROI (Region of Interest), 2D/3D DNR (Digital Noise Reduction), Embedded smart algorithm, Corridor mode, ONVIF Conformance, Support PoE power supply, IP67
Specification
Model |
Model No. |
ENV-HBU5M-50R-10 |
Type |
2MP IR IP H.265 Bullet camera |
|
CAMERA |
Image Sensor |
1/2.9″, 2 Megapixel, Progressive scan CMOS |
Lens |
2.8~12mm |
|
Angle of View (H) |
94.0° ~28° |
|
Shutter |
Auto/Manual, 1~1/100000 s |
|
Min. Illumination |
Colour: 0.02 [email protected] (F1.6), 0 Lux with IR on |
|
IR Range |
Up to 50M IR Range |
|
Day/Night |
IR-cut filter with auto switch (ICR) : 50M IR Distance |
|
S/N |
>52dB |
|
WDR |
120dB |
|
Zoom/Focus |
AF automatic focusing and motorized zoom lens | |
VIDEO & AUDIO
|
Max.Resolution |
1920×1080 |
Video Compression |
H.265+, H.265, H.264, MJPEG |
|
Frame Rate |
Main Stream:2MP (1920×1080): Max. 30 fps; |
|
Video Streaming |
Triple |
|
Corridor Mode |
Supported |
|
ROI |
Up to 8 areas |
|
HLC & BLC |
Supported |
|
OSD |
Up to 8 OSDs |
|
Privacy Mask |
Up to 8 areas |
|
Audio Compression |
G.711U/G.711A |
|
Two-way Audio |
Supported |
|
Audio I/O |
1/1 |
|
Alarm I/O |
1/1 |
|
NETWORK & INTERFACE |
Protocol |
IPV6, IPV4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP,802.1x, SNMP |
Compatibility |
ONVIF (Profile S,G), API |
|
Network |
1 RJ45 10M/100M Base-TX Ethernet |
|
GENERAL |
Power |
12 V DC, PoE (IEEE802.3 af) |
Power Consumption: Max 9W |
||
Edge Storage |
Micro SD, up to 256 GB, ANR Support |
|
Ingress Protection |
IP67 |
|
Working Environment |
-30°C ~ +60°C, Humidity ≤ 95% RH(non-condensing) |
|

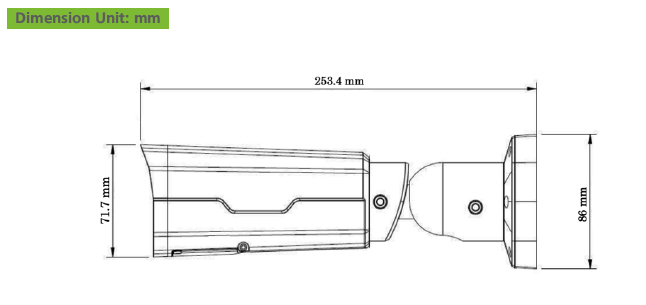

Dimensions |
253.4 x 86 x 71.7 mm |
|
Weight |
1.0 Kg |
Ordering Information
Part Number | Description | Standard Quantity |
ENV-HBU5M-50R-10 |
2MP IR IP H.265 Bullet Camera with 2.8 to 12mm Motorized Lens, PoE, SD card slot, WDR and 50M IR Support |
1 |
Downloads
Datasheet | 351.82KB | DOWNLOAD |
