Camera IP EYENOR ENC-HVDAM-30R-20 | Made in UK

MODEL

Model No.

ENC-HVDAM-30R-20

Type

8MP 4K IR IP H.265 Vandal Proof Dome Camera

Image Sensor

1/2″, Progressive scan ,8.0 Megapixel, CMOS

CAMERA

Lens

2.8~12mm (Motorized Lens)

Angle of View (H)

114.8° ~47.3°

Shutter

Auto/Manual, 1~1/100000s

Min. Illumination

Colour: 0.003 Lux @F1.5
BW: 0Lux with IR

AGC

Auto/Manual

Day/Night

IR-Cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>52dB

Defog

Digital Defog

IR Range

Up to 30M

WDR

120dB

VIDEO

 Max Resolution

 3840×2160

Video Compression

H.265+, H.264, MJPEG

Frame Rate

Main Stream: 8MP (3840*2160), Max 20fps; 5MP (2592*1944), Max 30fps; 5MP (2944*1656), Max 30fps;
4MP (2560*1440), Max 30fps; 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps

Corridor Mode

Supported

HLC/BLC

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

 Audio Compression

 G.711U/G.711A

 Two-Way Audio

 Supported

Behavior Detection

Intrusion, Crossing line, Motion detection

SMART

Intelligent Identification

Face detection, Audio Detection, Defocus, Scene Change

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

NETWORK

Protocols

Ipv6, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS,
SMTP, 802.1x, SNMP, QoS

Compatibility

 ONVIF (Profile S/G), API

Network

RJ45 10M/100M Base-TX Ethernet

INTERFACE

Audio I/O

1/1

Alarm I/O

1/1

BNC

Supported

GENERAL

Power Supply

12 V DC ±25%, PoE (IEEE802.3 af)

Power consumption: Max. 8W

Operating Temperature

-40°C ~ 60°C, Humidity £95% RH (Non-condensing)

Storage

Micro SD, Up to 256 GB

Network Storage

ANR

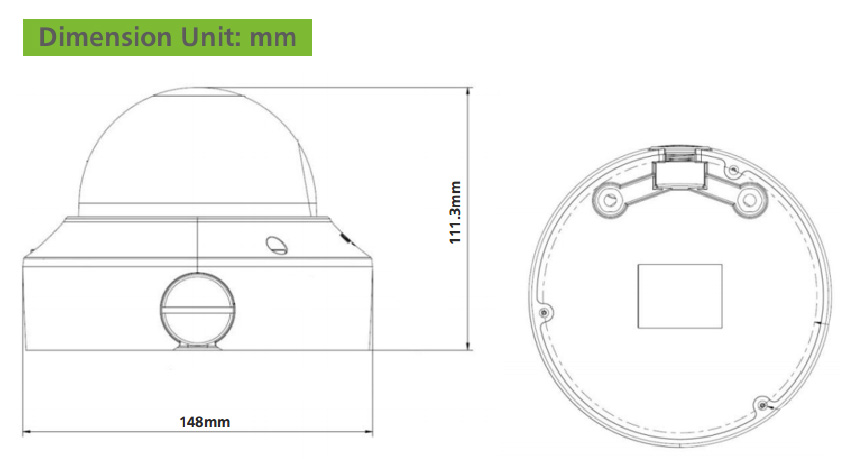

Dimensions

 148x148x111.3 mm

 Weight

 0.92Kg

Vandal Resistant

 IK10

Ingress Protection

 IP67

Reset Button

 Supported
