Camera IP EYENOR ENC-HCDAF-30R-11 | Made in UK

MODEL

Model No.

ENC-HCDAF-30R-11

Type

8MP 4K IR IP H.265 Compact Dome Camera

CAMERA

Image Sensor

1/2.5″, 8.0 Megapixel, Progressive Scan, CMOS

Lens

2.8mm (4.0mm Optional)

Angle of View (H)

118.1° (91.6°for 4mm)

Shutter

Auto/Manual, 1~1/100000 s

Min. Illumination

Colour: 0.05 Lux @F2.0
0 Lux with IR

AGC

Auto/Manual

Day/Night

IR-Cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>52dB

IR Range

Up to 30M IR range

Defog

Digital Defog

WDR

120dB

VIDEO

Video Compression

H.265+, H.264, MJPEG

Frame Rate

Main Stream:8MP (3840*2160): Max. 20 fps
Sub Stream:1080P (1920*1080): Max. 30 fps;
Third Stream:D1(720*576) : Max. 30 fps

Corridor Mode

Supported

ROI

Up to 8 areas

HLC/BLC

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

Motion Detection

Up to 4 areas

SMART

Behavior Detection

Intrusion, Crossing line, Motion detection

Intelligent Identification

Face detection, Defocus, Scene Change

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

NETWORK

Network Protocols

IPV6, IPV4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP,HTTPS, SMTP, SSL, QoS

Compatibility

ONVIF (Profile S,G), API

Network

1 RJ45 10M/100M Base-TX Ethernet

NETWORK

Power

12 V DC±25%, PoE (IEEE802.3 af), Power consumption: Max. 5.5W

Operating Temperature

-30°C ~ +60°C Humidity: £95% RH (non-condensing)

Ingress Protection

IP67

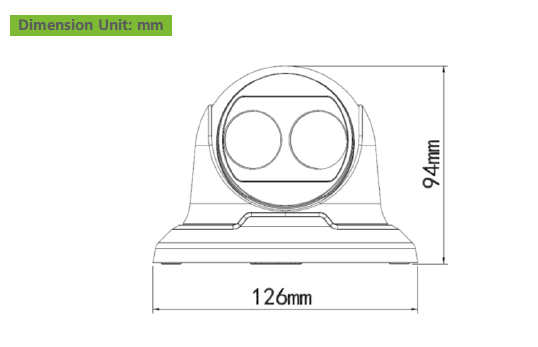

Dimensions

126x126x94 mm

Weight

0.45Kg
