Camera IP EYENOR ENC-HVDAZ-30R-20 | Made in UK

MODEL

Model No.

ENC-HVDAZ-30R-20

Type

8MP IR IP H.265 Vandal Proof Dome Camera

Image Sensor

1/2.5″, Progressive scan, 8.0 Megapixel, CMOS

CAMERA

Lens

2.8~12mm (Motorized Lens)

Angle of View (H)

79.6°  ~34.9°

Shutter

Auto/Manual, 1~1/100000s

Min. Illumination

Colour: 0.02 [email protected] (F1.6)

BW:0Lux with IR

AGC

Auto/Manual

Day/Night

IR-Cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>55dB

IR Range

Up to 30M

WDR

120dB

VIDEO

 MAx Resolution

 3840×2160

Video Compression

H.265+, H.264, MJPEG

Frame Rate

Main Stream: 8MP (3840*2160), Max 30fps; 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps

Corridor Mode

Supported

HLC/BLC

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

 Audio compression

 G.711U/G.711A

 Two way Audio

 Supported

SMART

Behavior Detection

Intrusion, Crossing line, Motion detection

Intelligent Identification

Face detection, Defocus, Scene Change,Missing Object, Abandoned Objec

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection,RTSP Authentication, User Authentication

NETWORK

Protocols

IPv6, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS,
SMTP, 802.1x, SNMP, QoS

Compatibilty

ONVIF (Profile S/G), API

Network

RJ45, 10M/100M Base-TX Ethernet

INTERFACE

Audio I/O

1/1

Alarm I/O

1/1

BNC

Supported

GENERAL

Power Supply

12 V DC ±25%, PoE (IEEE802.3 af)

Power consumption: Max. 8.7W

Operating Temperature

40°C ~ 60°C, Humidity £95% RH (Non-condensing)

Storage

Micro SD, up to 256GB

Network Storage

ANR

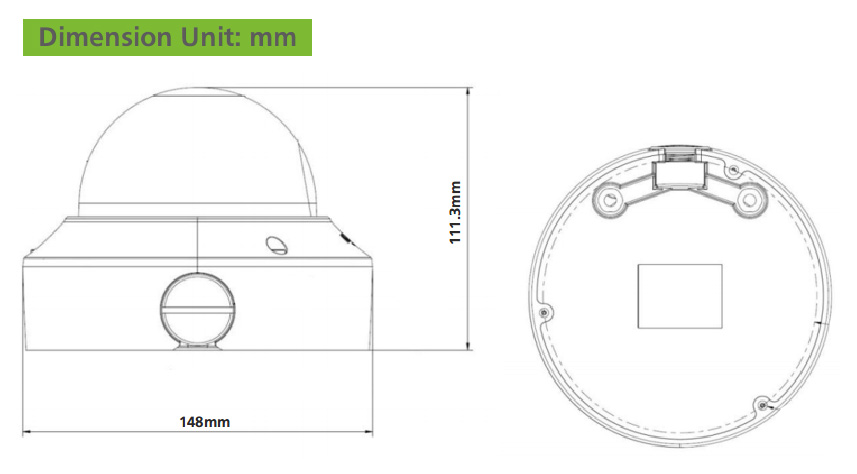

Dimensions

 148x148x111.3 mm

 Weight

 0.92Kg

 Ingress Protection

 IP67

 Vandal Resisatnt

 IK10

 Reset Button

 Supported
