Overview
Day/night functionality, Smart IR, Up to 30M, 2D/3D DNR, H.265+, H.265, H.264, MJPEG, Triple streams, ROI, ONVIF (Profile S/G), IP67, IK10
Specification
Model |
Model No. |
ENV-WVD5F-30R-09 |
Type |
2MP IR IP H.265 Vandal Proof WiFi Dome Camera |
|
CAMERA
|
Image Sensor |
1/2.7″, progressive scan, 2.0 Megapixel, CMOS |
Lens |
2.8mm @ F2.0 |
|
Angle of View(H) |
112.7° |
|
Shutter |
Auto/Manual,1 ~1/100000 s |
|
Min. Illumination |
Colour: 0.02 Lux (F2.0) 0 Lux with IR |
|
AGC |
Auto/Manual |
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
Digital Noise Ratio |
2D/3D DNR |
|
WDR |
dWDR |
|
Defog |
Digital Defog |
|
S/N |
≥52dB |
|
VIDEO & AUDIO |
Max. Resolution |
1920 x 1080 |
Video Compression |
H.265+, H.265, H.264, MJPEG |
|
Frame Rate |
Main Stream:2MP (1920×1080): Max. 20 fps; |
|
Video Streaming |
Triple |
|
HLC/BLC |
Supported |
|
ROI |
Up to 2 areas |
|
Motion Detection |
Up to 4 areas |
|
OSD |
Up to 4 OSDs |
|
Privacy Mask |
Up to 4 areas |
|
NETWORK |
Protocols |
IPV6, IPV4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP,HTTPS, SMTP,QoS |
Compatibility |
ONVIF(Profile S/G), API |
|
Network |
1RJ45 10M/100M Base-TXEthernet |
|
WIFI
|
Wireless Standards |
IEEE802.11b/g/n |
Frequency Range |
2.4 GHz ~ 2.4835 GHz |
|
Channel Bandwidth |
20MHz Support |
|
Modulation Mode |
802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM/HT |
|
Security |
64/128-bit WEP, WPA-PSK/WPA2-PSK |
|
Transmit Power |
802.11b: 17±1.5dBm @11Mbps |
|
Receive Sensitivity |
802.11b: -90dBm @11Mbps (Typical) |
|
Transmission Rate |
802.11b: 11Mbps |
|
GENERAL |
Power |
12 V DC±25%, PoE (IEEE 802.3af) |
Power Consumption: 5W (Max.) |
||
Working Environment |
-30°C ~ +60°C, Humidity ≥95% RH(Non-condensing) |
|
Edge Storage |
Micro SD, up to 256 GB |
|
Network Storage |
ANR |
|
Ingress Protection |
IP67 |
|
Vandal Resistant |
IK10 |
|

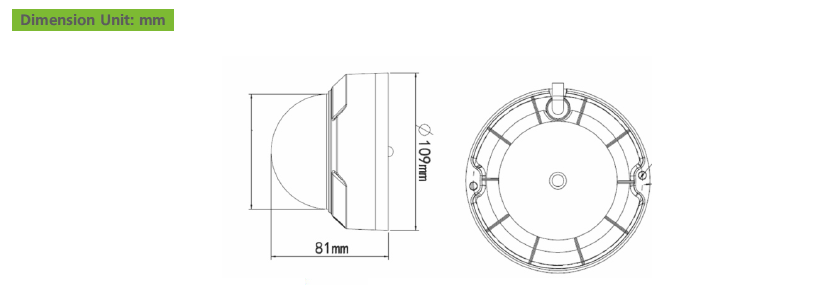

Dimension |
109x109x81mm |
|
Weight |
0.45Kg |
Ordering Information
Part Number | Description | Standard Quantity |
ENV-WVD5F-30R-09 |
2MP IR IP H.265 Vandal Proof Compact Dome camera with 2.8mm Fixed Lens, WIFI,SD Card slot and 30M IR support |
1 |
Downloads
Datasheet | 324.56KB | DOWNLOAD |
