Camera NVR EYENOR ENR-02009-N-AK | Made in UK
9/16CH 4K Embedded Network Video Recorder
Overview
9/16-channel input, ONVIF (Profile S/G), Support H.265+,H.265,H.264 video formats, Up to 12 Megapixels resolution recording, 2 SATA HDDs, up to 10TB for each HDD, Various fisheye dewarping modes for live view and playback, ANR, Support HDMI and VGA simultaneously, Support cloud upgrade
Specification
|
MODEL |
Model No. |
ENR-02009-N-AK |
ENR-02016-N-AK |
|
Type |
9Ch Embedded Network Video Recorder |
16Ch Embedded Network Video Recorder |
|
|
VIDEO/AUDIO INPUT&OUTPUT
|
Video Input |
9-Ch |
16-Ch |
|
Incoming Bandwidth |
90Mbps |
160Mbps |
|
|
Outgoing Bandwidth |
180Mbps |
320Mbps |
|
|
HDMI/VGA Output |
HDMI: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, |
||
|
Audio Output |
1-Ch, RCA |
||
|
Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
||
|
Synchronous Playback |
9-Ch |
16-Ch |
|
|
DECODING
|
Compression |
H.265+,H.265,H.264 |
|
|
Live View/Playback |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
||
|
Capability |
3 x [email protected], 4 x [email protected], 9 x [email protected], 16 x [email protected] |
||
|
DECODING
|
Compression |
H.265+/H.265/H.264 |
|
|
Live view/Playback |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
||
|
Capability |
4 x [email protected], 4 x [email protected], 16 x [email protected], 36 x [email protected], 64 x D1 |
||
|
HARD DISK |
SATA |
2 SATA Interface |
|
|
Capacity |
Up to 10TB for each disk |
||
|
NETWORK
|
Network Interface |
2 RJ-45 10M/100M/1000M adaptive Ethernet Interfaces |
|
|
USB Interface |
Front panel: 1 x USB2.0 Rear panel: 1 x USB2.0, 1 x USB3.0 |
||
|
GENERAL
|
Power Supply |
DC 12V |
|
|
Power Consumption |
≤ 20 W |
||
|
Operating Temperature |
-10°C ~ + 55°C |
||
|
Operating Humidity |
≤ 90% RH |
||
|

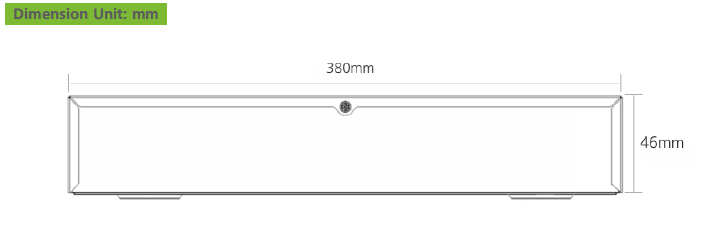

Dimension |
380x315x46mm |
||
|
Weight |
≤ 2.48Kg |
||
Ordering Information
| Part Number | Description | Standard Quantity |
|
ENR-02009-N-AK |
9Ch Enhanced Embedded Network Video Recorder With 2 HDD Bays Supports, 4K cameras,HDMI, VGA and ONVIF |
1 |
|
ENR-02016-N-AK |
16Ch Enhanced Embedded Network Video Recorder With 2 HDD Bays Supports, 4K cameras, 1 HDMI, VGA and ONVIF |
1 |
Downloads
| Datasheet | 126.60KB | DOWNLOAD |
