Đầu ghi NVR EYENOR ENR-02032-N-EPK | Made in UK

MODEL

Model No.

ENR-02032-N-EPK

Type

32Ch Embedded Network Video Recorder

SYSTEM

Main Processor

Dual-core embedded processor

Operating System

Embedded Linux

IP Camera Input

32 Channel

Two-way Talk

1ch input, 1ch output

Interface

1 HD-OUT, 1 VGA

DISPLAY

Resolution

HD-OUT 1: 1920×1080,1280×720, 1024×768 HD-OUT 2: 3840×2160,1920×1080,1280×720,1024×768
VGA: 1920×1080, 1280×1024, 1280×720

Decoding Capacity

32ch 720P/16ch 1080P/8ch 4MP/4ch [email protected], 1ch 12MP @20fps

Multi-screen Display

1/4/8/9/16/32

Video Compression

H.265+, H.265, H.264

RECORDING

Resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1&etc

Record Rate

25Mbps

Bit Rate

100Kbps ~ 8Mbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), Motion Detection, Video Loss, Camera Tamper,Alarm in

Record Interval

Post-record: 0 ~ 86400 sec

VIDEO DETECTION & ALARM

Trigger Events

Recording, Push message, Pop up message

Video Detection

Motion Detection, Video Loss

 Alarm In/Out

 2/2

Sync Playback

1/4/9/16

Search Mode

Time/Date, Alarm

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat,Shuffle, Backup selection, Digital zoom

Backup Mode

USB Device

INTERFACE

Protocols

HTTP, IPv4, TCP/IP, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, PPPoE, SNMP

Compatibility

ONVIF (Profile S/G)

Network

1 RJ-45 port (10/100/1000Mbps)

USB

2 x 2.0&1×3.0 USB Host

Audio I/O

1/1

PoE Interface

8ch 100Mbps, IEEE 802.3af/802.3at

PoE Max Power

20W

HARD DISK

 SATA

2 SATA Interface

Capacity

Up to 8TB for each HDD

 eSATA

 Supported

 Mounting Mode

 Embedded

GENERAL

Power

AC100~240V

Power Consumption

< 10W (without HDD)

Working Environment

-10 °C ~ 45 °C, Humidity: <90% RH

Reset Button

Supported

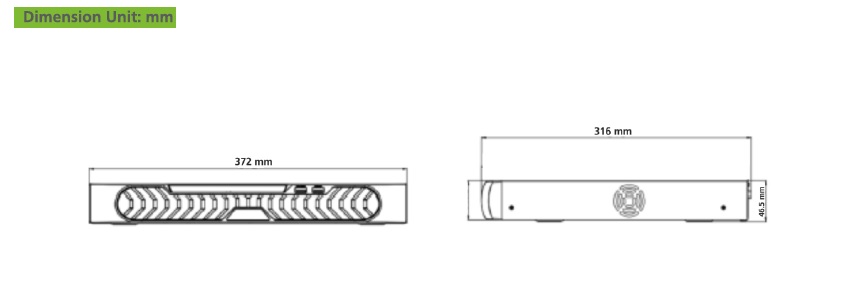

Dimensions

372×316×46.5mm

Weight

2.1Kg
