Đầu ghi NVR EYENOR ENR-04032-N-FK | Made in UK

MODEL

Model No.

ENR-04032-N-FK

Type

32Ch Embedded Network Video Recorder

SYSTEM

Main Processor

Dual-core embedded processor

Operating System

Embedded Linux

IP Camera Input

32 Channel

Two-way Talk

Supported

Interface

2 HDMI, 1 VGA

DISPLAY

Resolution

HDMI 1: 1920×1080,1280×720, 1024×768 HDMI 2: 3840×2160,1920×1080,1280×720, 1024×768
VGA: 1920×1080, 1280×720, 1024×768

Decoding Capacity

32ch D1/16ch 1080P/9ch 1080P/4ch [email protected], 1ch 12MP @20fps

Multi-screen Display

1/4/8/9/16/32/36

Video Compression

H.265+, H.265, H.264+, H.264

RECORDING

Resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080P/720P/D1&etc..

Record Rate

320Mbps

Bit Rate

100Kbps ~ 8Mbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), Motion Detection, Video Loss, Camera Tamper, Alarm in

Record Interval

Post-record: 30 ~ 60 sec

VIDEO DETECTION & ALARM

Trigger Events

Recording, Buzzer, Push message, Pop up message

Video Detection

Motion Detection, Video Loss, Camera Tamper

Alarm In/Out

16/4

Sync Playback

16/9/4/1

 Search Mode

Time /Date, Alarm, Picture grid, Event

 Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, BackupSelection, Digital Zoom

 Backup Mode

USB Device

INTERFACE

Protocols

HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP

Compatibility

ONVIF (Profile S/G)

RS485

Supported

RS232

Supported

Network

2 RJ-45 port (10/100/1000Mbps)

USB

2 x 2.0 & 1×3.0 USB Host

Array Type

RAID 5, RAID 6, RAID 10

Audio I/O

1/1, RCA

HARD DISK

SATA

4 SATA interface

Capacity

Up to 12TB for each HDD

eSATA

 Supported

GENERAL

Power

AC100-240V

Power Consumption

< 15W (without HDD)

Working Environment

-10 °C ~ 50 °C, Humidity: < 90% RH

Reset Button

Supported

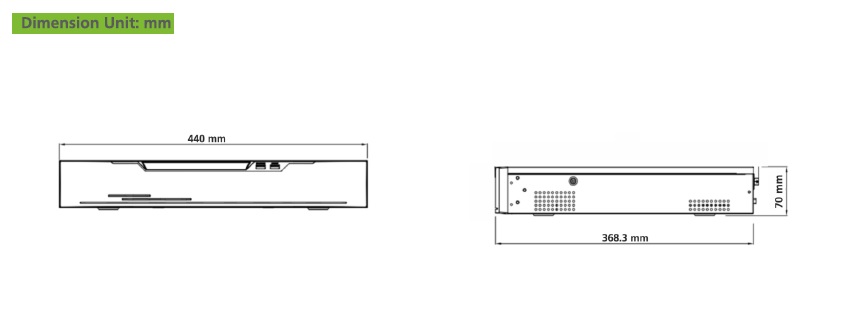

Dimensions

440×368.3×70mm

Weight

4.2Kg
