Camera IP EYENOR ENV-HBU7M-50R-20 | Made in UK

Model

Model No.

ENV-HBU7M-50R-20

Type

4MP H.265 IR IP Bullet Camera

CAMERA

Image Sensor

1/3″, 4.0 megapixel, Progressive scan CMOS

Lens

 2.7~13.5mm

Angle of View (H)

28.6° ~ 100.1°

Shutter

Auto/Manual, 1~1/100000 s

Min. Illumination

Colour: 0.002 Lux @F1.35, BW: 0 Lux with IR on

AGC

Auto/Manual

Smart IR

Up to 50M

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>56dB

Defog

Digital Defog

WDR

120dB

Zoom/focus

Motorized (Motor drive)

VIDEO & AUDIO

Max. Resolution

2688×1520

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;
2MP (1920*1080),Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps

Video Streaming

Triple

Corridor Mode

Supported

ROI

Up to 8 areas

HLC & BLC

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

Motion Detection

Up to 4 areas

Two-way Audio

G.711U/G.711A

Audio Compression

Supported

SMART

Behaviour Detection

Intrusion, Crossing line, Motion detection, Abandoned Object, Missing object

Intelligent Identification

Face detection,Audio Detection, Defocus, Scene Change

Statistical Analysis

People Counting

General Function

 Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

INTERFACE

Protocol

IPV6, IPV4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Compatibility

ONVIF (Profile S,G), API

 Network

1 RJ45 10M/100M Base-TX Ethernet

 Audio I/O

 1/1

 Alarm I/O

 1/1

GENERAL

Power

12 V DC, PoE (IEEE802.3 af)

Power Consumption

Max 8.5W

Edge Storage

Micro SD Slot, Up to 256 GB

ANR

Supported

Working Environment

-35°C ~ +60°C, Humidity ≤ 95% RH(non-condensing)

Surge Protection

6KV

Ingress Protection

IP67

Vandal Resistant

IK10

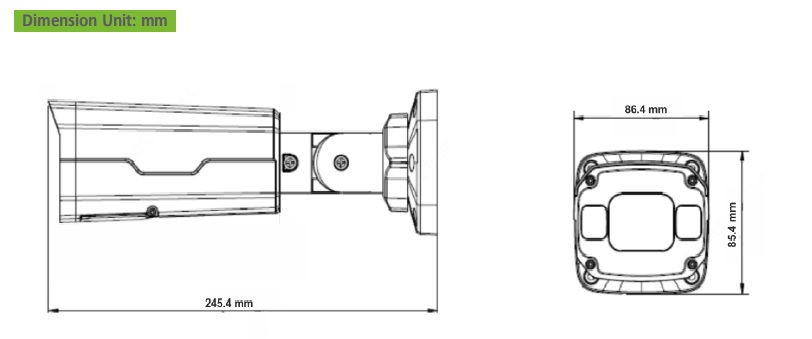

Dimensions

245.4 × 85.4 × 86.4mm

Weight

0.93 Kg
