Camera IP EYENOR ENV-HCB5F-30R-12 | Made in UK

Model

Model No.

ENV-HCB5F-30R-12

ENV-HCB7F-30R-11

Type

2MP IR IP H.265 Compact Bullet Camera

4MP IR IP H.265 Compact Bullet Camera

CAMERA

Image sensor

1/2.7″, progressive scan, 2.0megapixel, CMOS

1/3″, progressive scan, 4.0megapixel, CMOS

Lens

4mm (Optional 6mm)

3.6mm (Optional 6mm)

Angle of View(H)

80.8°(54.9° for 6mm)

86.4°(49.9° for 6mm)

Shutter

Auto/Manual, 1~1/100000 s

Min. Illumination

Colour: 0.005Lux @ F1.6
BW: 0 Lux with IR on

Colour: 0.03Lux @ F2.0
BW: 0 Lux with IR on

AGC

Auto/Manual

IR Range

Up to 30M IR Range

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>52dB

>55dB

WDR

dWDR

Defog

Digital Defog

Noise Reduction

2D/3D DNR

VIDEO

Max.Resolution

1920 x 1080

2592 x 1520

Video Compression

H.265+/H.265/H.264/MJPEG

Frame Rate

Main Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps

Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440),
Max 25fps; 3MP (2048*1520), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps

HLC/BLC

Supported

Corridor Mode

Supported

ROI

Up to 8 areas

OSD

Up to 8 OSDs

Motion Detection

Up to 4 areas

Privacy Mask

Up to 8 areas

SMART

Behavior Detection

Intrusion, crossing line, Motion detection

Intelligent Identification

Face detection, Defocus, Scene Change, Abandoned Object, Missing Object

Statistical Analysis

People Counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

NETWORK

Protocol

IPV6, IPV4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP,
802.1x, SNMP, QoS

Compatibility

ONVIF (Profile S/G), API

Network

1 RJ45 10M/100M Base-TX Ethernet

GENERAL

Power Supply

12 V DC±25%, PoE (IEEE802.3 af)

Power Consumption

Max 6W

Working Environment

-35°C ~ +60°C, Humidity ≤ 95% RH(Non-condensing)

Ingress Protection

IP67

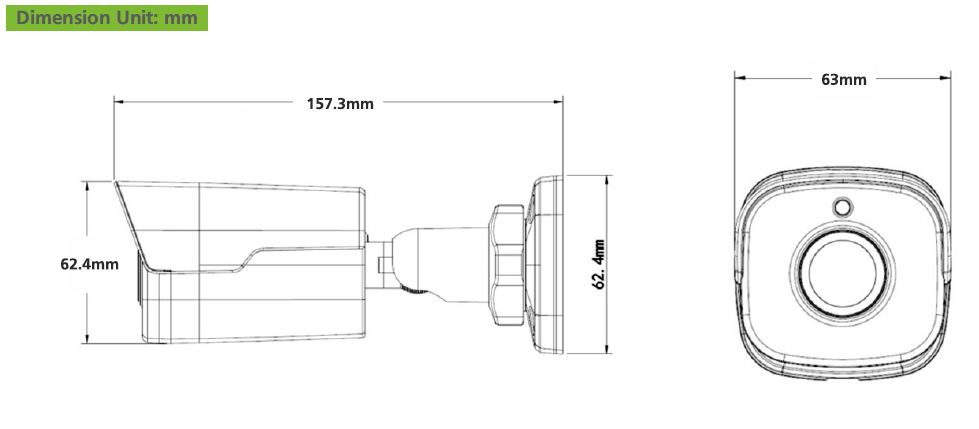

Dimensions

157.3x63x62.4 mm

Weight

0.45Kg

Reset Button

Supported
