Camera IP EYENOR ENV-HCB5F-30R-19 | Made in UK

Model

Model No.

ENV-HCB5F-30R-19

Type

2MP IR IP H.265 Compact Bullet Camera

Image Sensor

1/2.7″, 2.0 Megapixel, Progressive scan, CMOS

CAMERA

Lens

4.0mm (Optional 6mm)

Angle of View(H)

80.8° (54.9°)

Shutter

Auto/Manual, 1~1/100000s

Min. Illumination

Color: 0.02Lu×(F1.8), 0 Lux with IR on

AGC

Auto/Manual

IR Range

Up to 30M IR range

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>52dB

WDR

dWDR

Noise Reduction

2D/3D

VIDEO

Max. Resolution

1920 × 1080

Video Compression

H.265+,H.265, H.264, MJPEG

Frame Rate

Main Stream: 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps

Video Streaming

Triple

OSD

Up to 8 OSDs

ROI

Up to 8 areas

HLC/BLC

Supported

Corridor Mode

Supported

Motion Detection

Up to 4 areas

Privacy Mask

Up to 8 areas

Audio Compression

 G.711U/G.711A

Alarm I/O

 1/1

INTERFACE

Protocol

IPv6, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS,SMTP, 802.1x,SNMP,QoS

Compatibility

ONVIF(Profile S/G), API

Built-in Mic

Supported

Network

1 RJ45 10M/100M Base-TX Ethernet

SMART

Behavior Detection

Intrusion, crossing line, motion detection

Exception Detection

Audio detection

Intelligent Identification

Face detection, Defocus, Scene Change,Abandoned Object, Missing Object

Statistical Analysis

People counting

GENERAL

Power

12VDC, PoE (IEEE802.3af)

Power consumption: Max 6.0W

Working Environment

-35°C ~ +60°C, Humidity ≤ 95% RH(non-condensing)

Ingress Protection

IP67

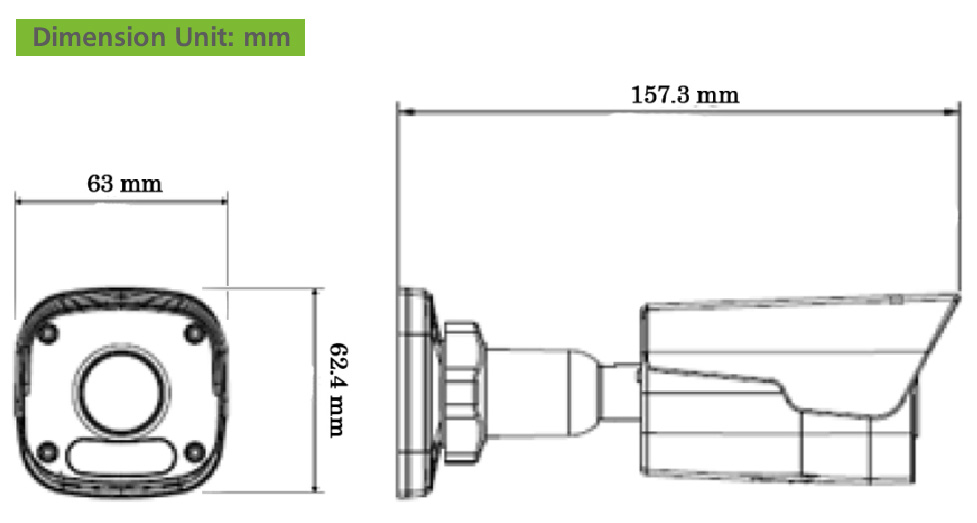

Dimensions

157.3×62.4×63mm

Weight

0.45kg
