Camera IP EYENOR ENV-HCP5Z-30R-16 | Made in UK

Model

Model No.

ENV-HCP5Z-30R-16

Type

2MP IP H.265 Mini PTZ Dome Camera

Image Sensor

1/2.9″, 2.0 Megapixel, Progressive scan, CMOS

Lens

2.7~13.5mm Automatic focusing and motorized zoom lens

CAMERA

Angle of View(H)

29.1°~104.3°

Shutter

Auto/Manual, shutter time: 1 s ~ 1/100000 s

Min. Illumination

Color: 0.03Lu× @(F1.2), 0 Lux with IR on

AGC

Auto/Manual

IR Range

Up to 30M IR range

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>52dB

WDR

dWDR

Noise Reduction

 2D/3D

VIDEO

Max. Resolution

 1920 x 1080

Video Compression

H.265+,H.265, H.264, MJPEG

Frame Rate

 Main Stream:1080P (1920×1080):Max. 30 fps;
 Sub Stream:720P (1920×1080):Max. 30 fps; Third   Stream: CIF (352×288): Max. 30 fps

Video Streaming

 Triple

OSD

Up to 4 OSDs

ROI

Up to 2 areas

HLC/BLC

 Supported

Motion Detection

Up to 4 areas

Privacy Mask

Up to 4 areas

NETWORK

Behavior Detection

Intrusion, Cross line, Motion detection

Protocol

IPV6, IPV4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP,HTTPS, SMTP, SSL

Compatibility

ONVIF (Profile S/G), API

Network

1 RJ45 10M/100M Base-TX Ethernet

PAN & TILT

Pan Range

 0° ~ 350°

 Pan Speed

0.1°/s ~ 60°/s, Preset speed: 60°/s

Tilt Range

 0° ~ 90°

Tilt Speed

0.1° ~ 50°/s, Preset speed: 50°/s

Number of Presets

1024

Home Position

Supported

GENERAL

Edge Storage

Micro SD, up to 256GB

Network Storage

ANR

Power

DC 12V±25%, PoE (IEEE802.3 af)

Power consumption: Max 12W

Working Environment

–10°C ~ +50°C, Humidity:≤95% RH(non-condensing)

Reset Button

Supported

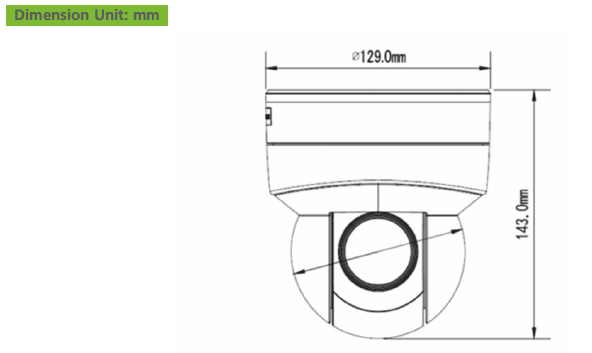

Dimensions

129x129x143mm

Weight

0.75 Kg
