Camera IP EYENOR ENV-HPT5Z-150R-15 | Made in UK

Model

Model No.

ENV-HPT5Z-150R-15

ENV-HPT5Z-150R-18

Type

2MP IR IP H.265 PTZ Camera

Image Sensor

1/2.8″ Progressive scan CMOS

CAMERA

Lens

5.2 ~ 104 mm (20x optical zoom)

Angle of View

60.2° ~ 3.0°

Shutter

Auto/Manual; shutter time: 1 ~ 1/100000s

Min. Illumination

Colour: 0.001Lux @(F1.5), 0Lux with IR

AGC

Auto/Manual

Shutter

Auto/Manual; shutter time: 1 ~ 1/100000s

Day & Night

IR Cut Filter with Auto Switch (ICR)

IR Range

UP to 150m (492ft)

S/N

>52dB

DNR

2D/3D

WDR

120dB

Defog

Digital Defog

VIDEO & AUDIO

Max. Resolution

1920 x 1080

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Main Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps

Video Streaming

Triple

HLC/BLC

Supported

EIS

Supported

OSD

Up to 8 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

Privacy Masking

Up to 24 areas

Audio Compression

G.711U/G.711A

Two-way Audio

Supported

SMART

Behaviour Detection

Intrusion, crossing line, motion detection, auto tracking

Intelligent Identification

Face detection, Abandoned Object, Missing Object

Statistical Analysis

People Counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

NETWORK

Protocols

1IPV6, IPV4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x,
SNMP, TLS, SSL, QoS

Compatibility

ONVIF (Profile S/G), API

Network

1 RJ45 10M/100M Base-TX Ethernet

PTZ

Pan Range

360°(endless)

Pan Speed

0.1°/s ~ 240°/s, Preset : 300°/s

Tilt Range

–15° ~ 90° (Auto flip)

Tilt Speed

0.1° ~ 160°/s, Preset : 240°/s

Number of Presets

1024

Patrol

Up to 16 Patrol, upto 32 Presets per Patrol

Home Position

Supported

GENERAL

Edge Storage

Micro SD, up to 256GB

Working Conditions

-40°C ~ +65°C (Outdoor), Relative Humidity ≤95% (non-condensing)

Power Supply

AC 24V±25%

AC 24V±25%, PoE (PSE Required)

Power consumption: 9 ~ 42W

Ingress Protection

IP66

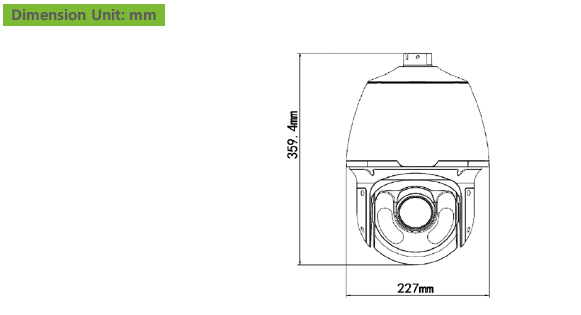

Dimension

227x227x359.4mm

Weight

5.28Kg (Without Bracket)
