Antaira FCU-100WB-S6

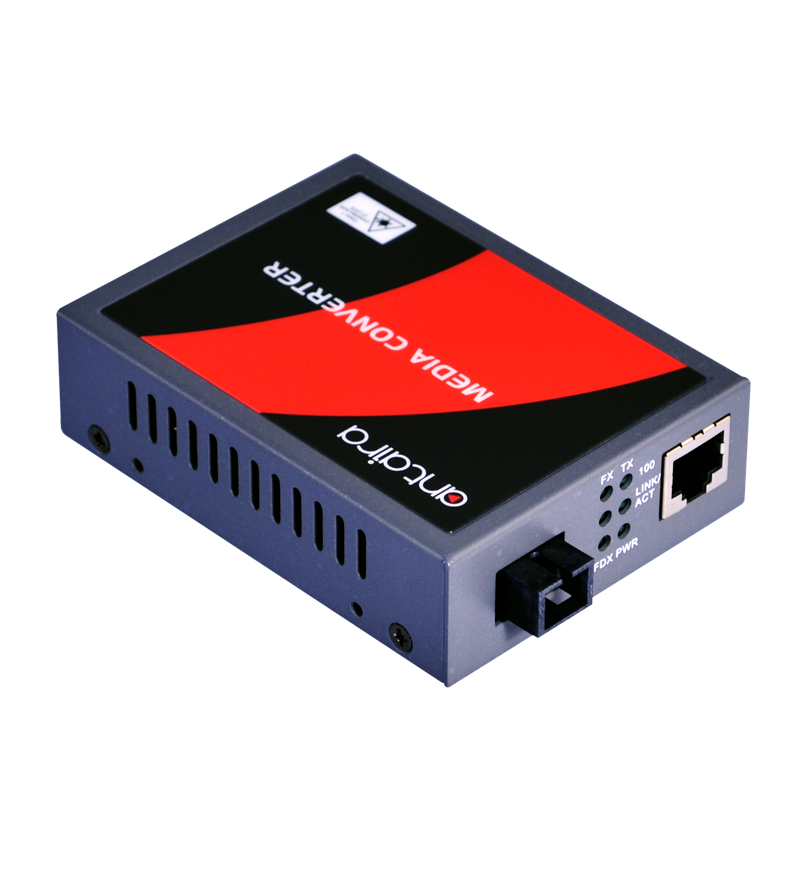

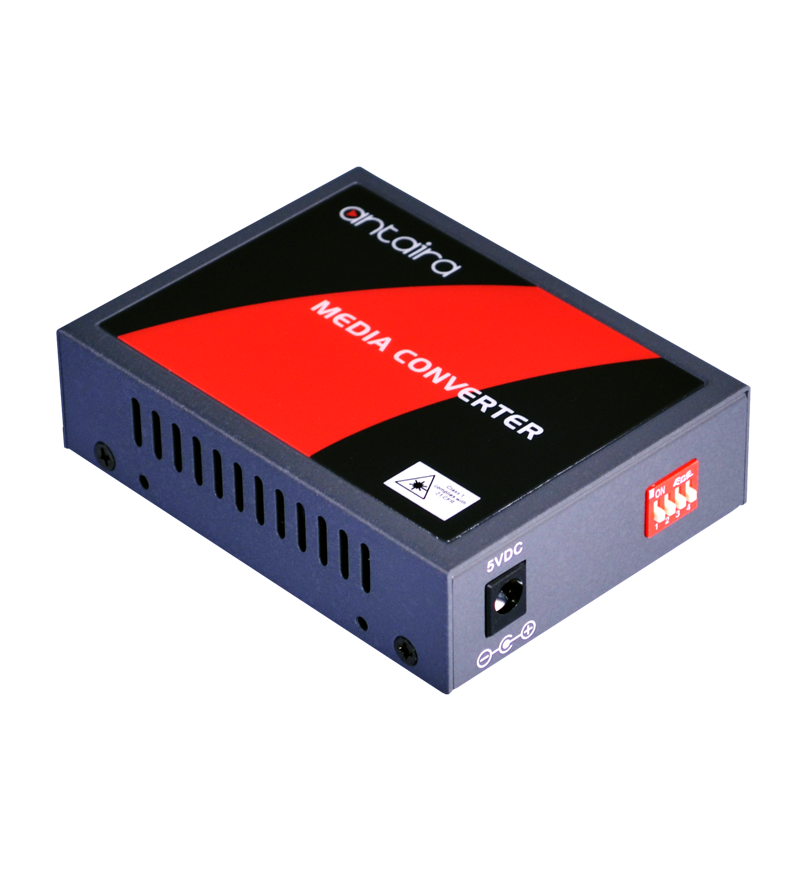

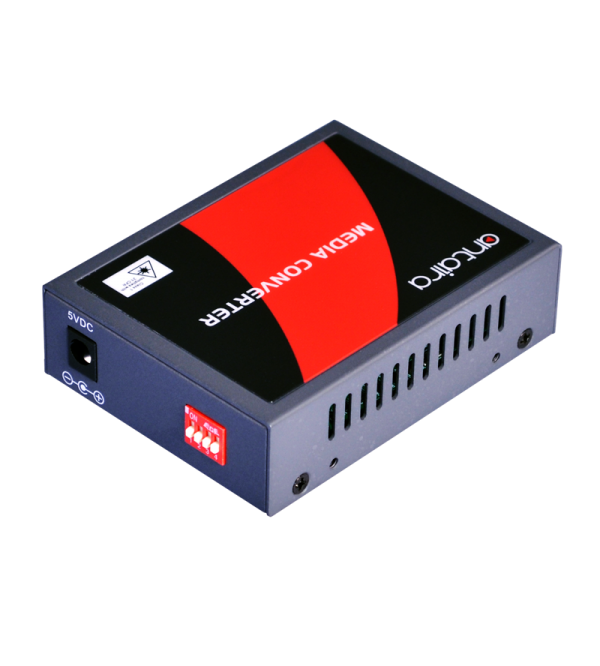

Antaira Technologies FCU-100WB-S6 is a compact fiber to Ethernet media converter housed in a metal case and conforms to the FCC emissions standards. The FCU-100WB-S6 features a singular SC fiber connector as well as the STP-RJ45 Ethernet connector. The copper
media converter is fully compliant with IEEE 802.3 and 802.3u Fast Ethernet standers. The industrial media converter features LED diagnostics for power, activity, link and Full/Half Duplex operations. The FCU-100WB-S6 is a 10/100 multi-mode fiber media converter
capable of communication up to 60M. The FCU-100WB-S6 is a WDM rugged media convert with fiber communication on TX1550nm – RX1310nm.

• All Converters comply with IEEE 802.3 & 802.3u Fast Ethernet Standards
• LED Indication: Power, FDX, TP 100, TP Link/Act, Fiber 100, Fiber Link/AC
• 10/100Mbps Auto Negotiation
• Auto cross over for TP port
• Support Link Alarm
• Support Switch mode & Pure converter mode
• Dual Port 10/100Mbps Switch inside
• Metal Case
• Voltage supervisor
