Antaira FCU-1802P-SC

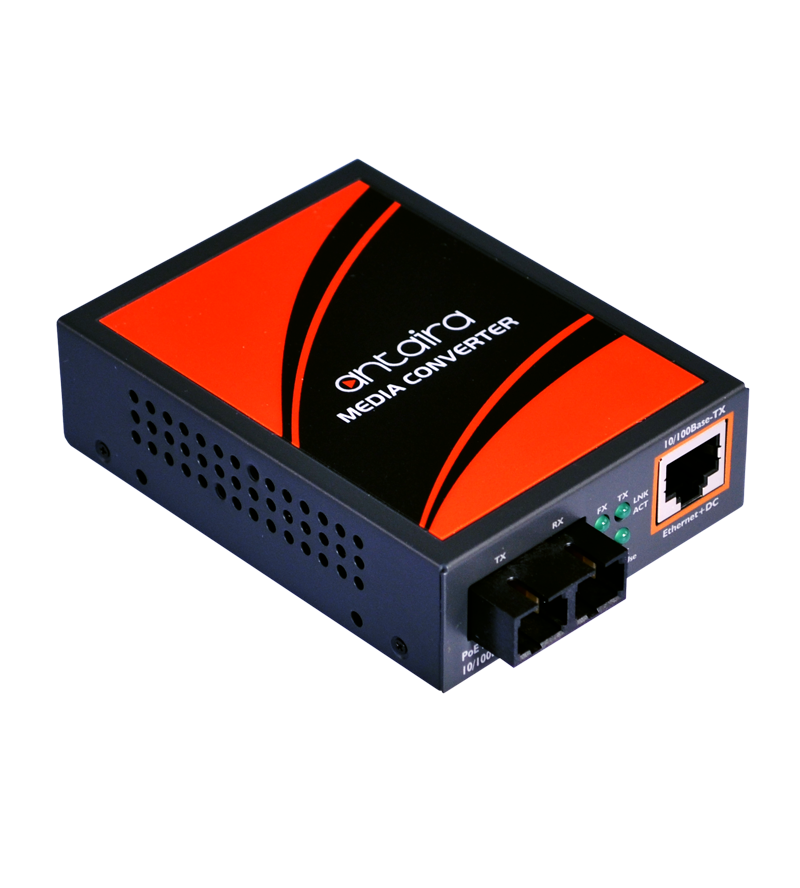

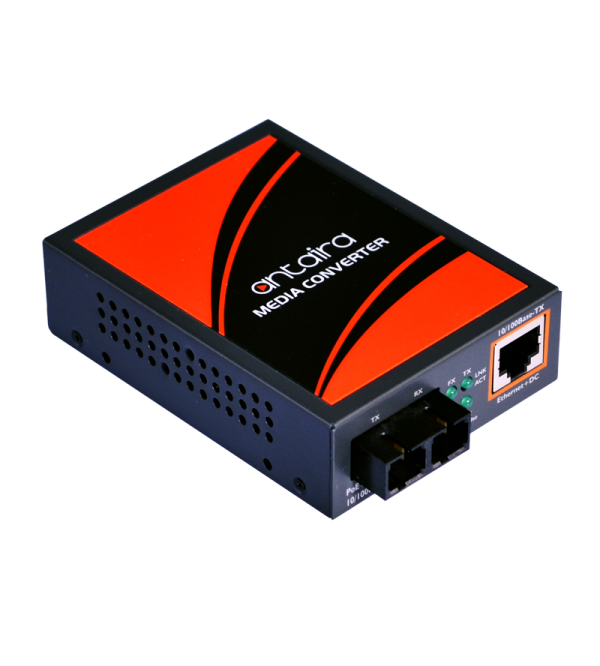

Antaira Technologies FCU-1802P-SC is a PoE capable, compact fiber to Ethernet media converter housed in a metal case and conforms to the FCC emissions standards. The FCU-1802P-SC features a standard SC fiber connector as well as the STP-RJ45 Ethernet connector.
The copper media converter is fully compliant with IEEE 802.3 and 802.3u Fast Ethernet standers. The industrial media converter features LED diagnostics for power, activity, link and Full/Half Duplex operations. The FCU-1802P-SC is a 10/100 multi-mode fiber
media converter capable of communication up to 2KM. The FCU-1802P-SC is a power over eathernet media converter that is ideal for applications such as wireless access points, IP surveillance cameras or IP phones.
- Complies with IEEE 802.3, 802.3u, 802.3af (PoE) Standards
- Auto-Negotiation for 10/100Base-TX Half or Full-Duplex Mode
- Auto-MDI/MDI-X Function on Copper Port
- IEEE 802.3x Full Duplex Flow control & Back Pressure in Half Duplex
- Provides DC 48V Power over RJ-45 Ethernet Cable
- Auto-Detect PoE IEEE 802.3af Equipments
- Compact Size
- Easy Installation
- 2-Year Warranty
| Technology | |
| IEEE Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX/FX Fast Ethernet IEEE 802.3af PoE |
| Processing Type | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE 802.3x back pressure flow control |
| Ethernet Interface | |
| Ethernet Port Count | 1 port |
| 10/100 BASE-T(X) | 10/100BaseT: 1 × RJ45 Port |
| PoE Port | 1 port (30W/port) |
| PoE Pin Assignment | 1/2(+), 3/6(-) |
| Fiber Interface | |
| Fiber Port Count | 1 port |
| 100 BASE-FX Fiber | 100BaseFX: 1 × SC Port |
| Wavelength | 1310nm |
| Transmission Distance | 2 km |
| Link Loss Forward | Enable: If either TP or FX port is broken, shut down the other port Disable: Link LED indica~rs still on ifonnection is broken |
| Tx Power | -19 ~ -14.0 dBm |
| Rx Sensitivity | -34.5 dBm |
| Link Budget | -14.0 dB |
| Other Interface | |
| DIP Switch | LFP Function (Disable/Enable) Setting |
| LED Indicator | Power/Status, TP Link/ACT, Fiber Link/ACT, PoE |
| Performance | |
| Memory Buffer | 128 kbits |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port |
| Power Requirements | |

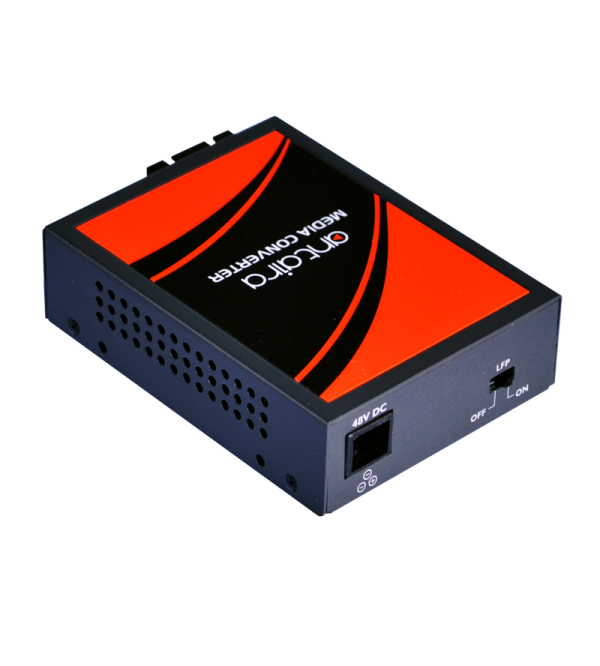

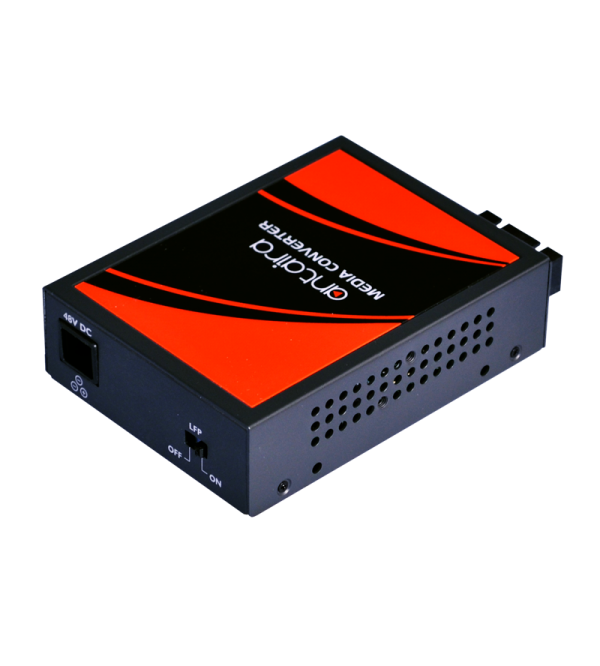

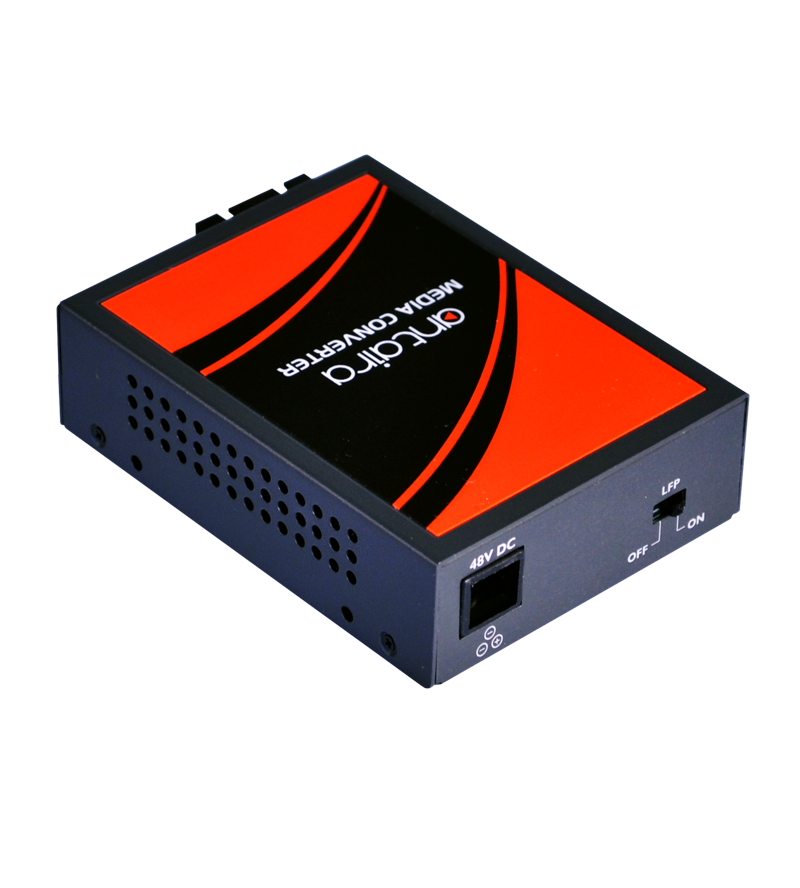

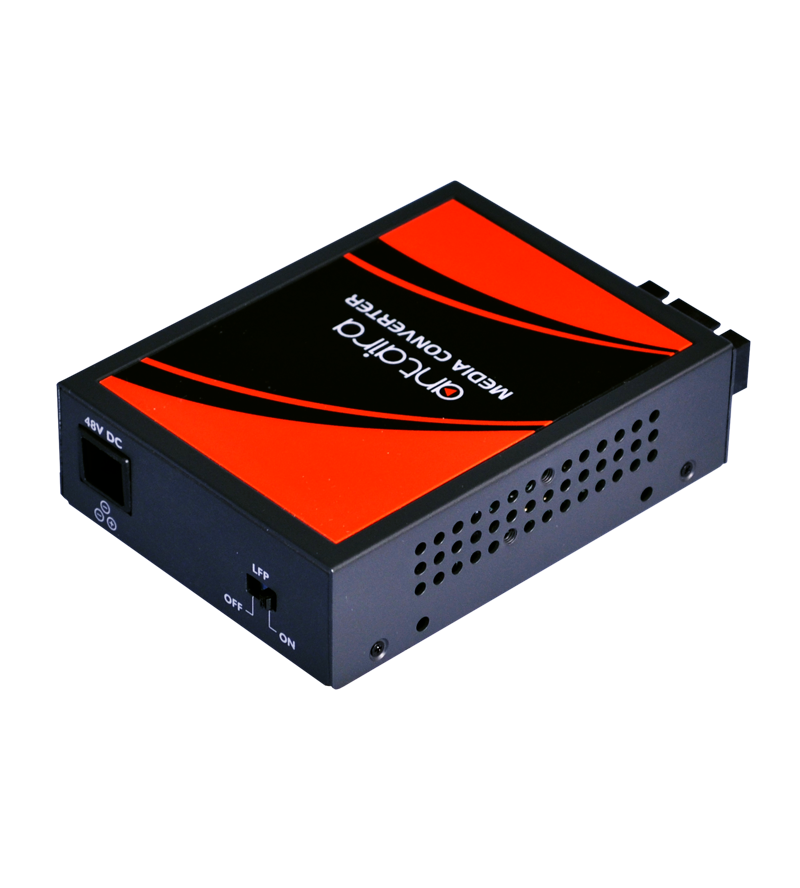

| Power Connection | External power supply / DC Jack |
| Input Voltage | 48V DC, 0.4A |
| System Power Consumption | 1.8 Watts (Standby) 27.8 Watts (Full Loading) |
| Max. PoE Power Budget | PoE 48V DC, Max. 15.4Watts, 350mA |
| Environmental Limits | |
| Operating Temperature | 0° to 50° C (32° to 122° F) |
| Storage Temperature | -10° to 70° C (14° to 158° F) |
| Ambient Relative Humidity | 5% to 90% non-condensing |
| Mechanical Characteristics | |
| Housing | Metal |
| Mounting | DIN-Rail mount, Wall mount (Optional) |
| Dimensions (W × H × D) | 97 × 26 × 70 mm |
| Weight | 200 g |
| Regulatory Approvals | |
| Certifications | FCC, CE |
| EMI | FCC Part 15 Class A CE |
| Green | RoHS Compliant |
| Warranty | 2 years |
