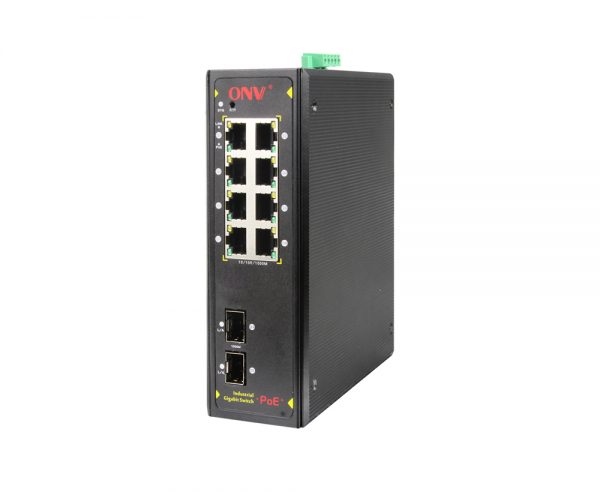

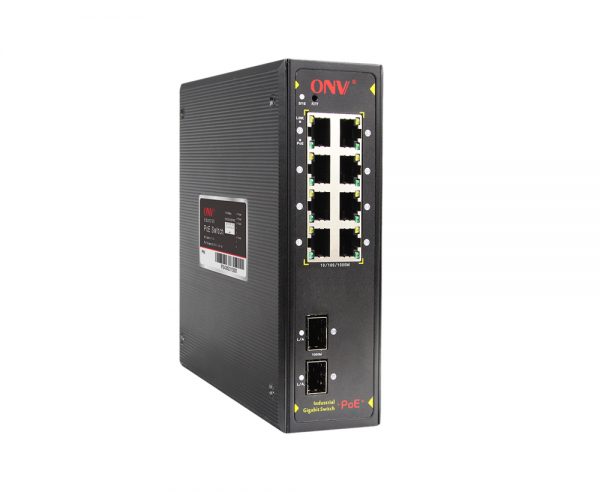

Full gigabit 10-port industrial PoE fiber switch

OVERVIEW

The ONV-IPS33108PF series is a full gigabit industrial PoE switch fiber independently developed by ONV. It has 8*10/100/1000Base-T RJ45 ports and 2*1000Base-x SFP ports. Port 1-8 can support IEEE 802.3af/at PoE standard, single-port PoE power up to 30W, and the maximum PoE output power of the host is 120W (at-240W).  As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal device such as wireless AP, IP camera,industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, sea transportation. Industrial scenes such as metallurgy and green energy construction form a cost-effective, stable and reliable communication network.

Unmanaged mode, plug, and play, no configuration, easy to use.

FEATURE

Full gigabit access, SFP port uplink

◇ All series supports ” Gigabit RJ45 port and gigabit SFP port ” combination, which enables users to flexibly build networking to meet the needs of various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Powerful port lightning protection, wide voltage input

◇ Contact discharge 8KV, air discharge 15KV; port lightning protection common-mode 4KV, differential mode 2KV;

◇ Industrial dual power input

◇ DC INPUT: 48V-57V, non-PoE DC INPUT: 12-48V

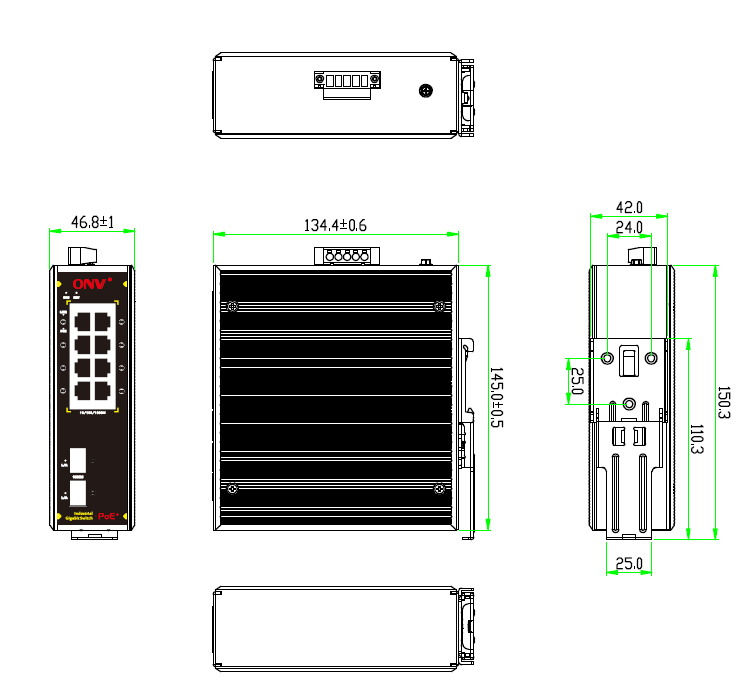

DIMENSION

ORDERING INFORMATION

PACKING LIST
