Gigabit PoE splitter cable

OVERVIEW

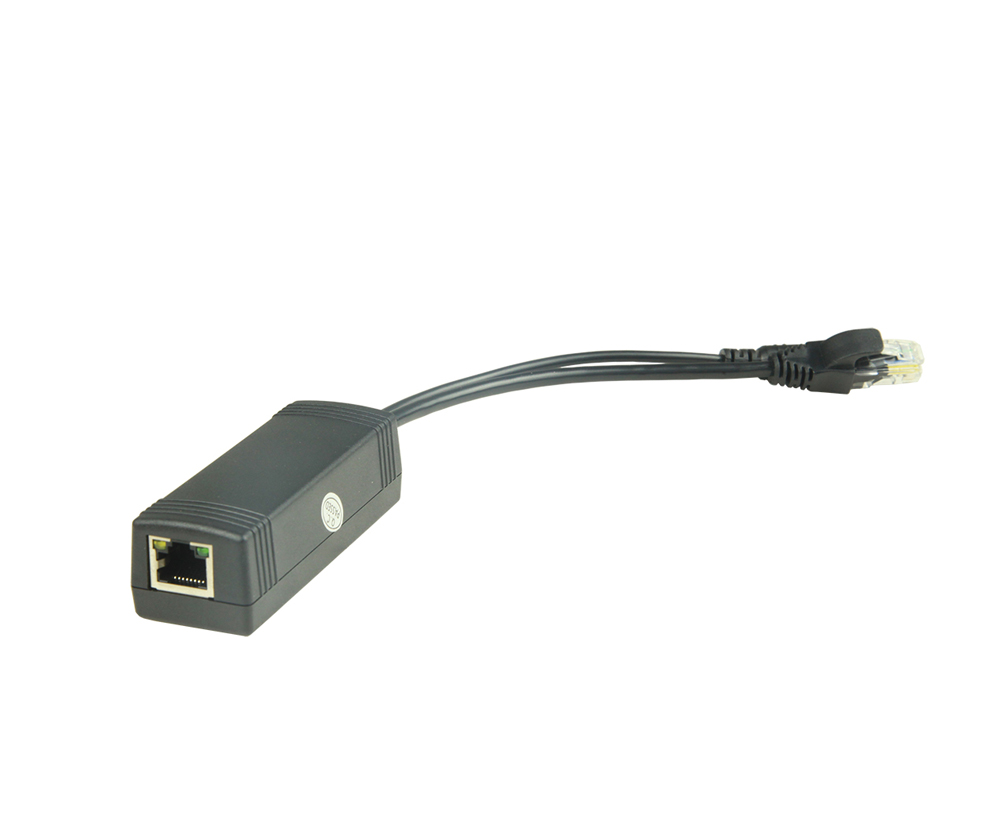

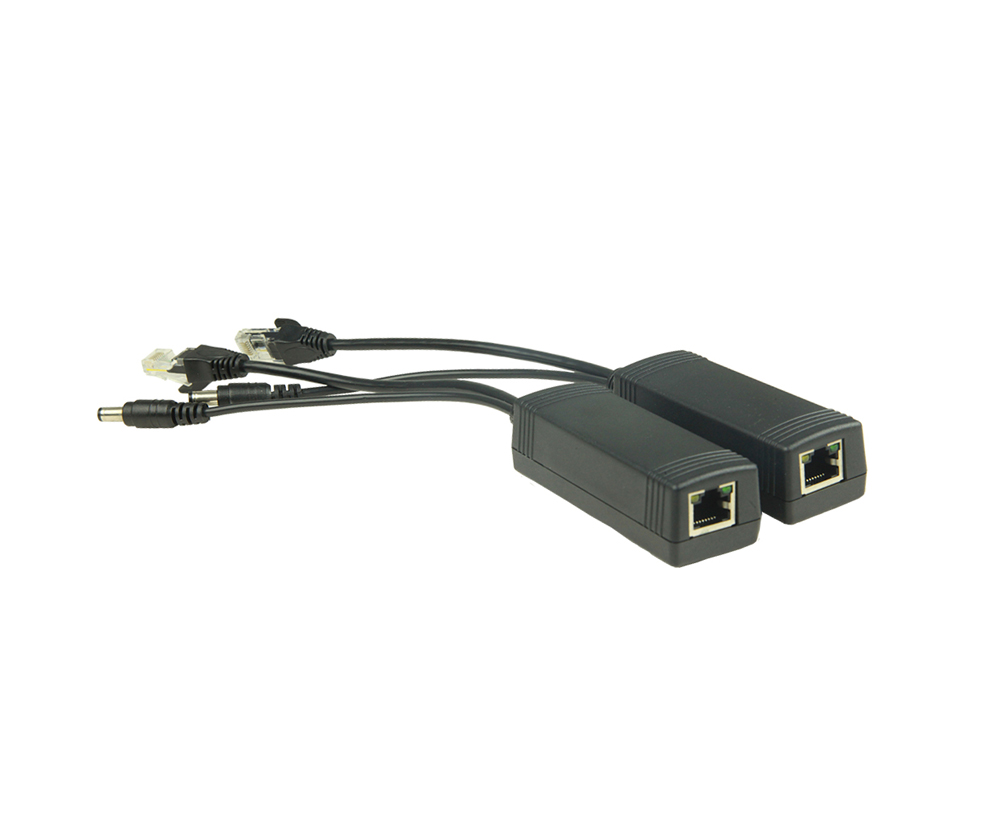

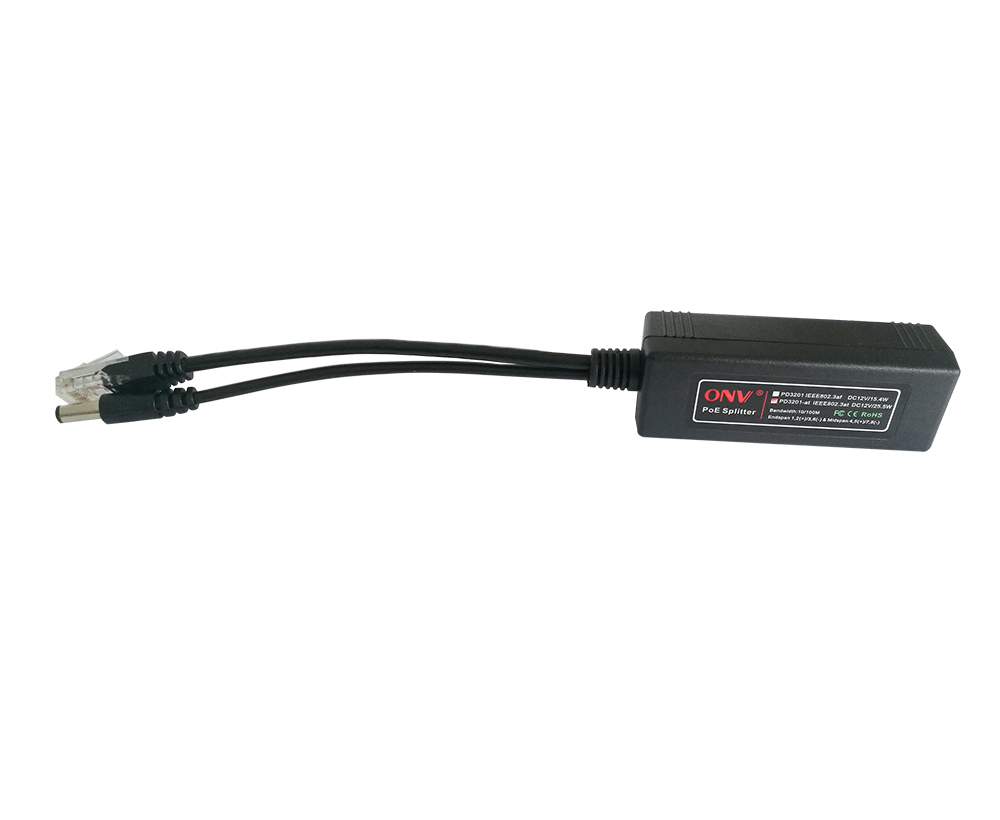

ONV-PD3202G, a cost-effective and high reliable remote PoE PD device based on standard IEEE802.3af, could split the power and data transmitted through cable. It could provide power and data to device without PoE function when connecting with a PoE Switch or PSE Injector. The output voltage is 12V, and equipped with PoE power supply device, it could flexibly expand the scale of Security Surveillance & Wireless Network without the limitation of power line layout.

With transformer isolated design for circuit input stage and output stage of the ONV-PD3202G power, it strengthens anti-jamming capability and protection for circuit. Also it effectively reduces PoE Switch Abnormal Power Supply Matters caused by common ground problem.

Meeting the standard of IEEE802.3af. Compatible with power supply methods of both End-span(1,2+ 3,6-) and Mid-span (4,5+ 7,8-). With the features of output power at 13W, low ripple, more than 82% high efficiency, Port Isolation Protection: 1500V and Protection for short circuit, over-current & over-temperature. With 1 to 2 design, it could be working with device that support external PoE, and it also simplifies effectively the project wiring and maintenance.

FEATURE

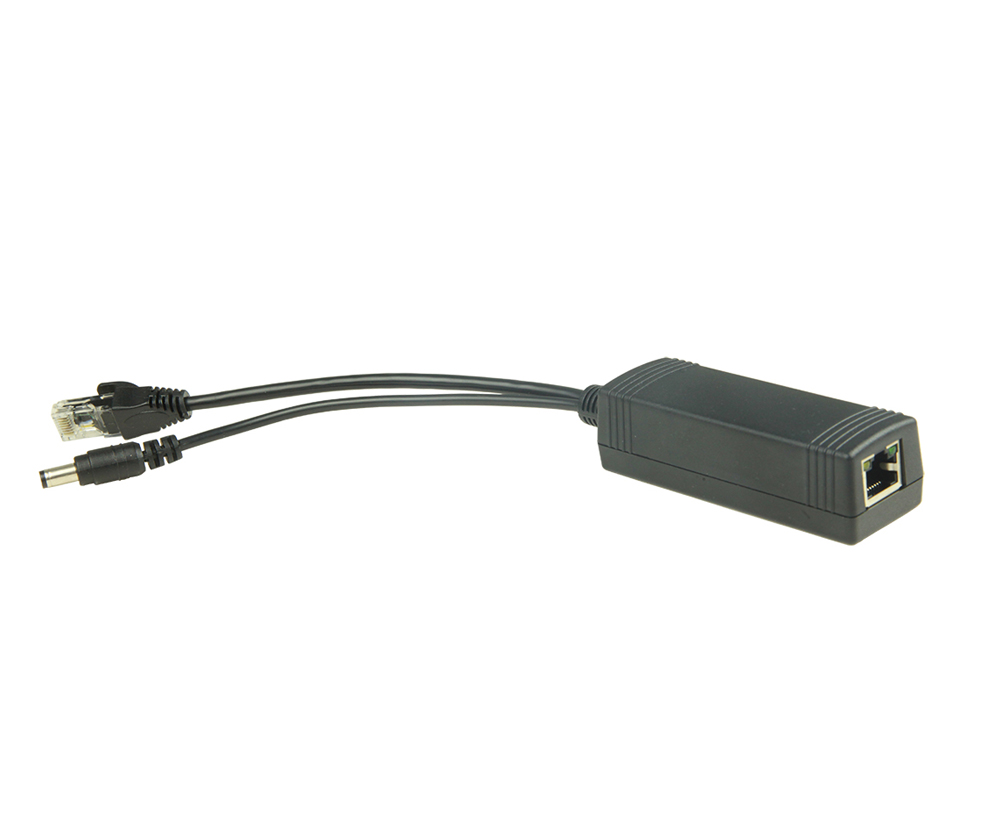

◇ 1* 8-Pin RJ45 female input port + 1* RJ45 male output port + 1* DC(5.5*2.1mm) male output port

◇ 1* 10/100/1000Mbps RJ45 port

◇ Support IEEE802.3af

◇ PoE Input Voltage: 44-57V

◇ Output voltage: 12V(Default)

◇ Output power: 13W

◇ Circuit protection to protect the connected device

◇ Top-quality design, stable and reliable
