Gigabit single port PoE splitter 60W

OVERVIEW

This single port 10/100/1000M 60W PoE splitter is ONV’s independent research and development for high power PoE splitter, it support LT PoE++ high power PoE standard, and can be backward compatible with IEEE 802.3af/at PoE standard. The maximum output power is 60W. This high power PoE splitter can provide the maximum output power must be matched with high power PoE switch or power injector, the output power will be less than 25.5W if matched with IEEE802.3af/at standard PoE switch.

PoE splitter can provide a simple and economical solution for high performance Ethernet PoE power supply and data communication. Easy to use and install, superior performance and cost-effective, which is an ideal choice for customer to improve the projects’ quality. It’s an efficient engineering solution to meet the requirement of the reliability system and simplified installation for remote places without power supply or unable to use Ethernet cable to supply power.

FEATURE

◇ Supply power to IP network surveillance cameras through Cat5 Ethernet cable (PoE)

◇ 2*10/100/1000Mbps RJ45 ports, 1x high power PoE port, special for high-speed dome cameras

◇ Support network port, lightning-proof power input port (the secondary lightning protection)

◇ Support LT PoE++ high power PoE standard, compatible with IEEE802.3af / IEEE802.3at standard

◇ Single PoE port output power is 60W max.

◇ Input voltage: 56V; Output: DC12V/24V

◇ No fans, natural cooling, small and exquisite, no noise design, suitable for desktop or wall

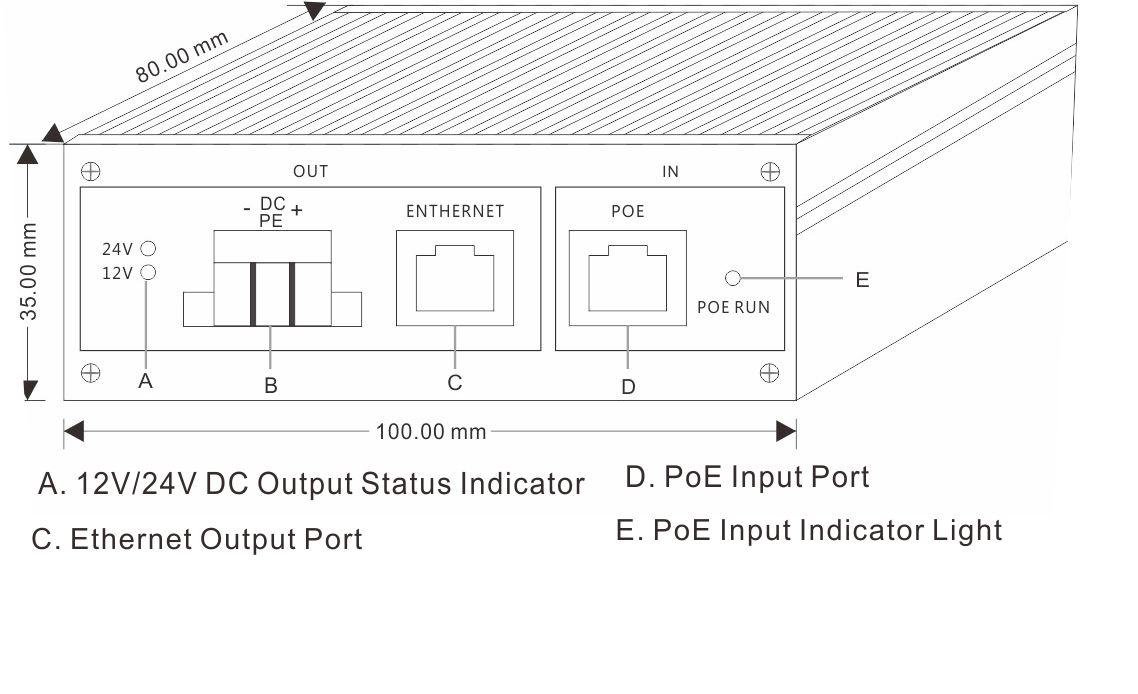

DIMENSION

ORDERING INFORMATION

PACKING LIST
