Gigabit 3-port PoE extender

OVERVIEW

ONV-PSE-PD3321 is an unmanaged PoE extender, it has 2*10/100/1000M PoE ports and 1*10/100/1000M uplink PD RJ45 port. Port 1-2 can support IEEE802.3af/at PoE standard, single-port PoE power up to 25W. The working power of the PoE extender is taken from the PoE switch and no additional power supply. It is installed at the end of the 100 meters network cable to extend the network and POE power supply by 100 meters at full speed. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, video access control, etc. through a network cable, to meet the network environment that requires high-density PoE power supply, and to reduce the bandwidth to solve the twisted pair POE transmission within 200 meters. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to form a cost-effective network.

Unmanaged mode, plug and play, no configuration, easy to use.

FEATURE

Gigabit access, uplink PD RJ45 port

◇ 3*10/100/1000Base-T RJ45 ports to meeting the power supply and transmission requirements of the scene within 200 meters.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

Intelligent PoE power supply

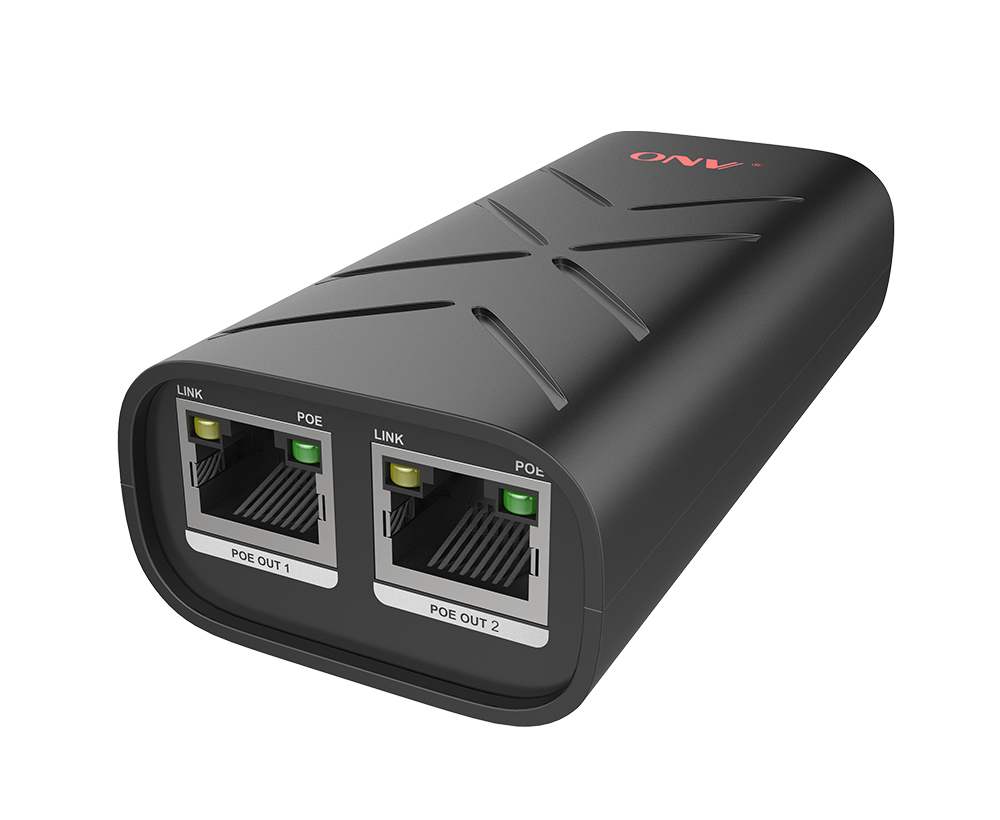

◇ 2* 10/100/1000Base-T RJ45 ports can support PoE power supply to meeting the needs of PoE power supply in various security scenarios.

◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.

Innovative function

◇ PoE extender can extend the network signal transmission distance and POE power supply distance

◇ When the PoE extender is working, it does not need an external power supply to easily solve the bandwidth and power network cable transmission within 200 meters.

Stable and reliable

◇ CCC,CE, FCC, RoHS.

◇ Plug and play, no configuration, easy to use and maintain.

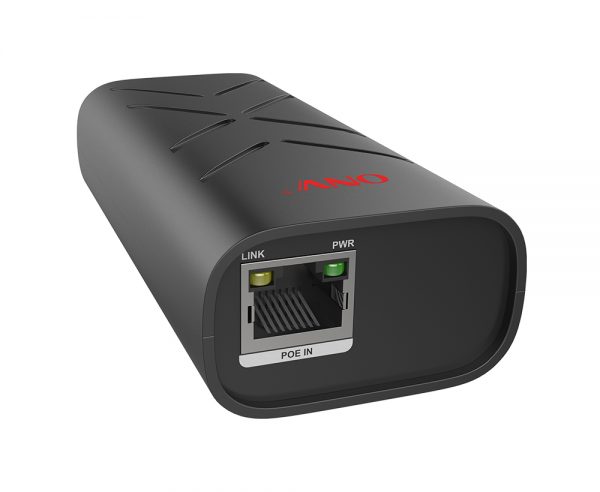

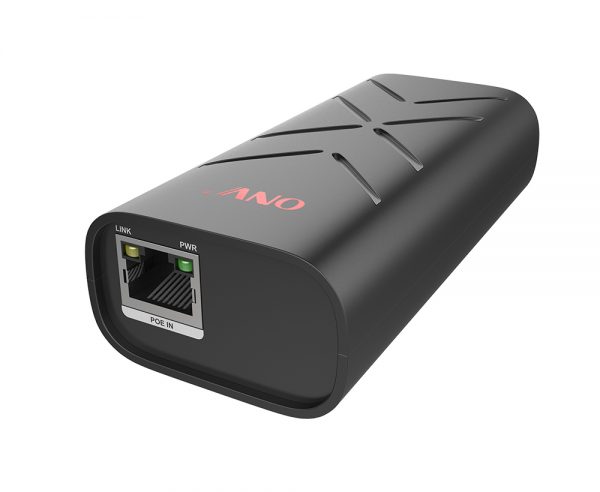

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link PoE.

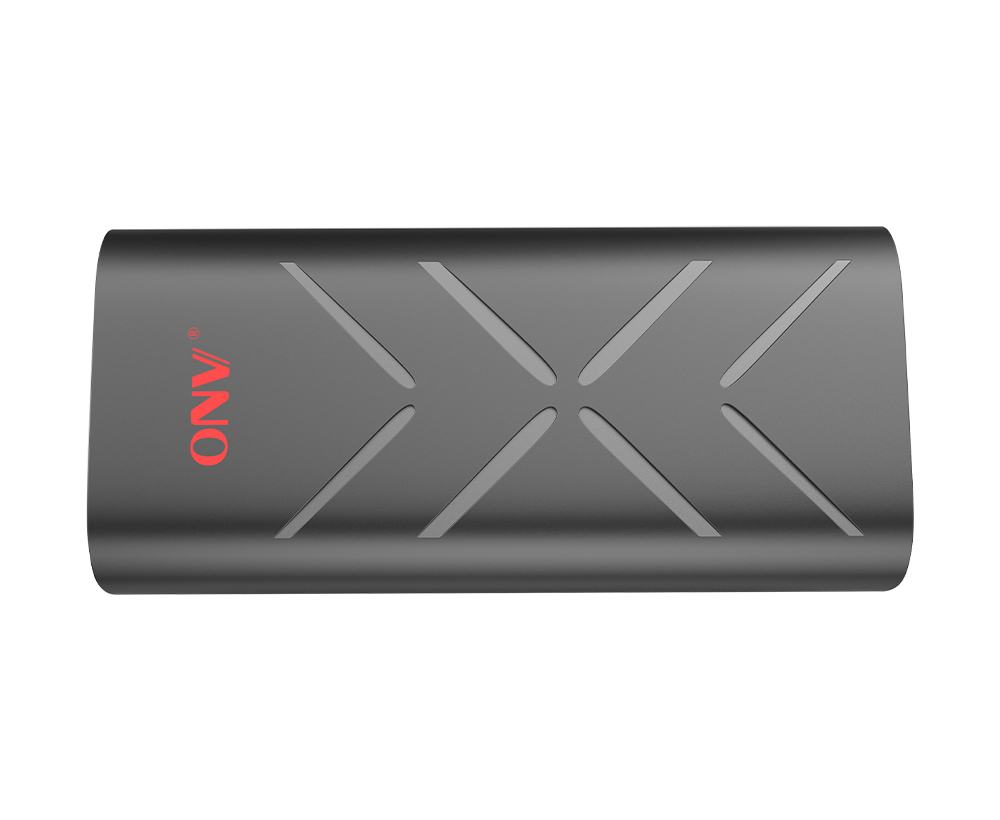

◇ Low power consumption, fanless silent design, advanced ABS and PC flame-retardant plastic shell is exquisite and beautiful.

DIMENSION

ORDERING INFORMATION

PACKING LIST
