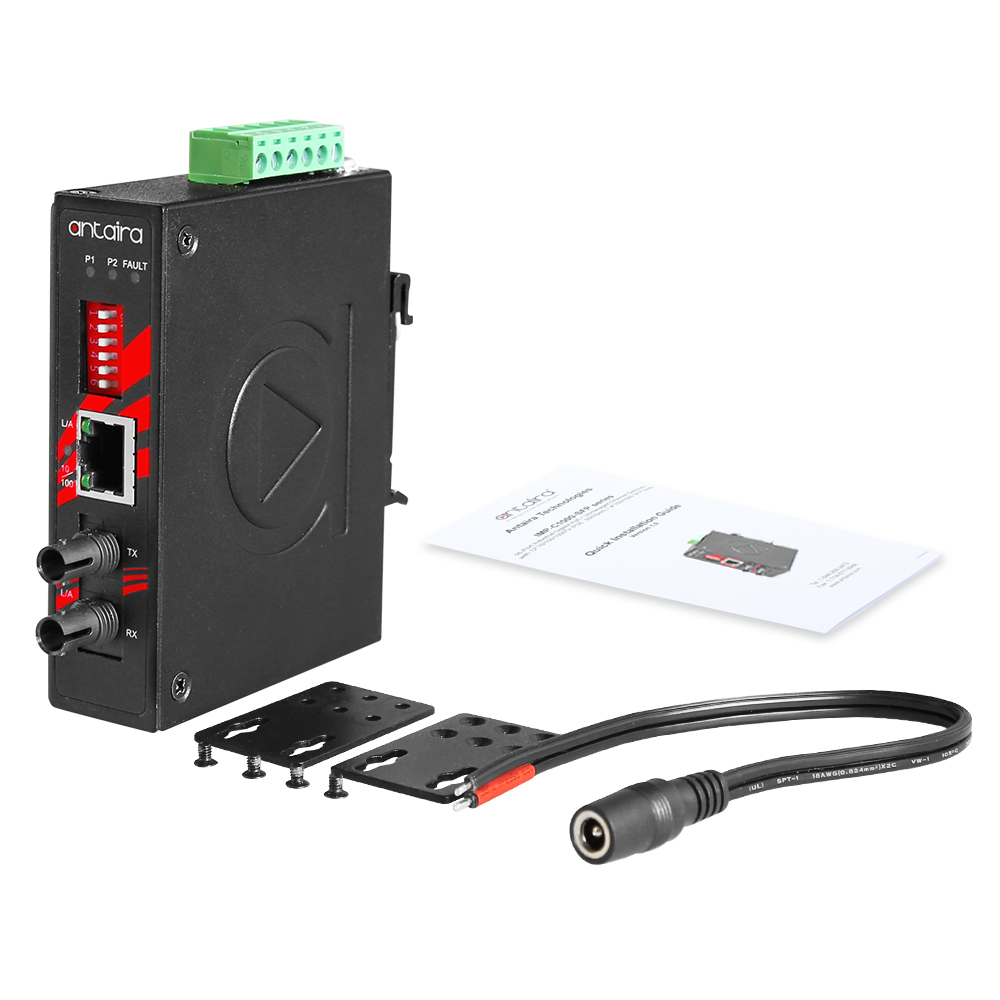

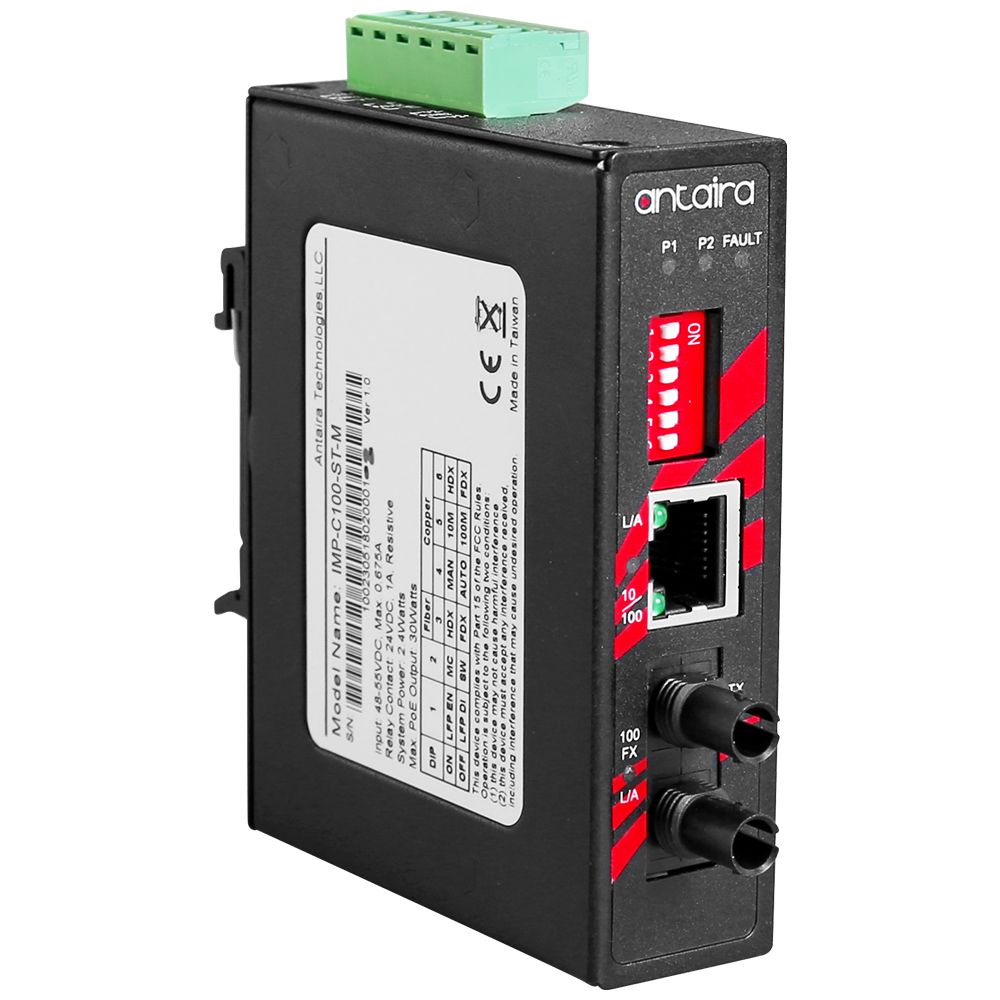

Antaira IMP-C100-ST-S3
Antaira Technologies’ IMP-C100-ST-S3 is a compact IP30 rated Ethernet-to-fiber media converter featuring a 10/100TX Ethernet port that supports IEEE 802.3at high power PoE that can supply up to 30 watts, and a fixed fiber interface supporting ST connectors.
The model supports Single-Mode and is designed to fulfill industrial applications that require fiber optic distance extension while using minimal space.
IMP-C100-ST-S3 has a built-in “Link Fault Pass Through” (LFP) and “Far End Fault” (FEF) function with 48~55VDC redundant power inputs with reverse polarity and overload current protection. The model supports DIN-Rail as well as wall mountable orientations
and provides an operating temperature range model in STD: -10°C to 70°C.
- 1*10/100Tx Fast Ethernet with IEEE 802.3at Compliant PoE+
- 1*100Fx ST Connector (Single-Mode)
- RJ45 Port Support Auto MDI / MDI-X Function
- Auto Negotiation Speed, Half / Full Duplex
- Store-and-Forward Switching Architecture
- Built-in Link Fault Pass Through (LFP)
- Built-in Far End Fault (FEF)
- Wide-Range Redundant Power Design
- Redundant Power Input: 48~55VDC
- Power Polarity Reverse Protection
- Overload Current Protection

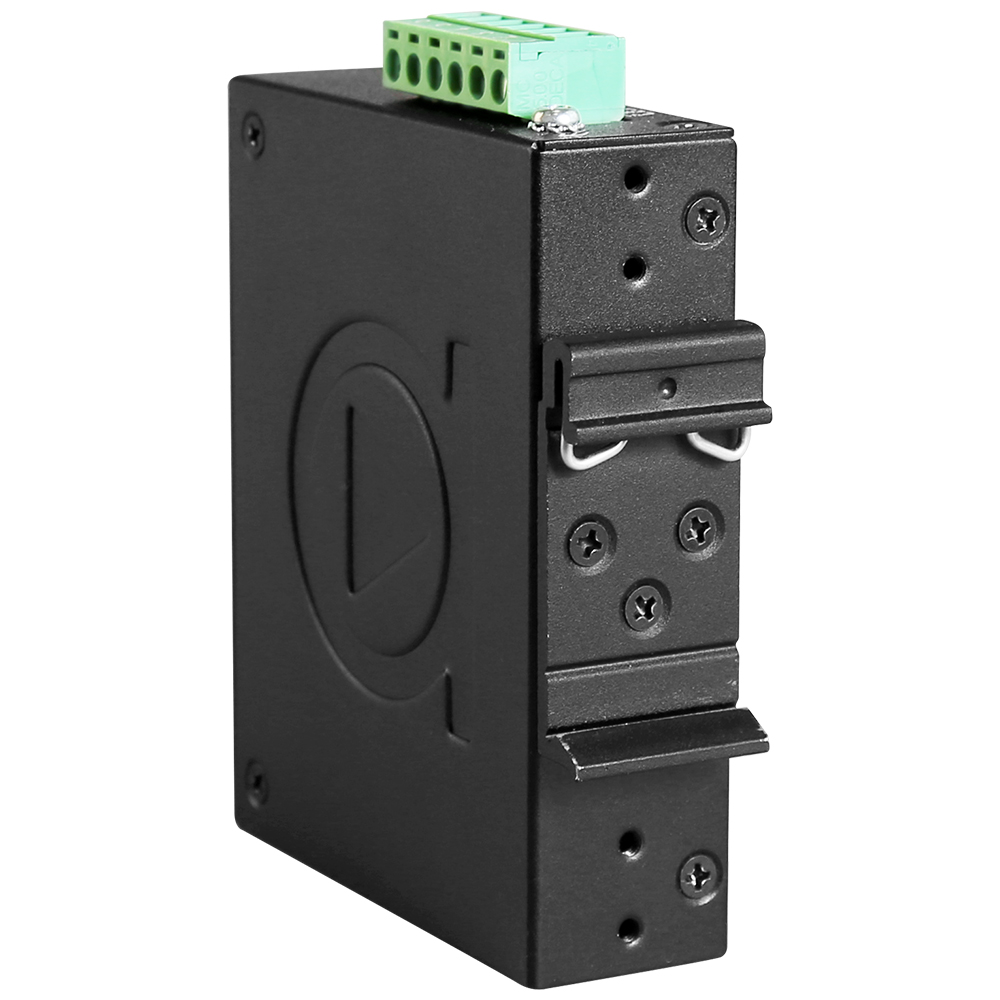

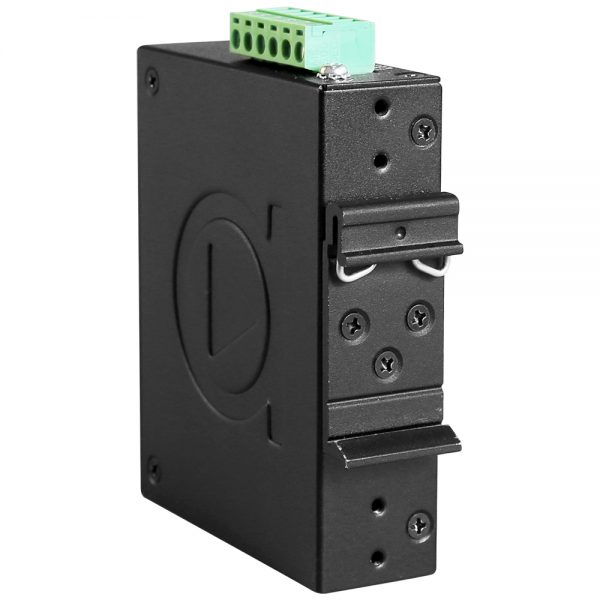

- DIN-Rail or Wall Mountable
- IP30 Protection
- 5-Year Warranty
| Technology | |
| IEEE Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3af/at Power Over Ethernet |
| Processing Type | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE 802.3x back pressure flow control |
| Ethernet Interface | |
| Ethernet Port Count | 1 port |
| 10/100 BASE-T(X) | 1 × RJ45 Port w/10/100T(X), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
| PoE Port | V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A) |
| PoE Pin Assignment | V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A) |
| 10G/5G/1GBase-T | 1 port (30W/port) |
| Fiber Interface | |
| Fiber Port Count | 1 port |
| 100 BASE-FX Fiber | 1 × 100Fx ST type connector Single-mode: 9/125um or 10/125um |
| Wavelength | 1310nm |
| Transmission Distance | 30 km |
| Link Loss Forward | LFP( Link Fault Pass Through) |
| Other Interface | |
| DIP Switch | DIP-Switch 1: LFP (Link Fault Pass) Enable/Disable DIP-Switch 2: Converter Mode/ Switch Mode DIP-Switch 3: Fiber Port Half-Duplex Mode/ Half-Duplex Mode DIP-Switch 4: Copper Port Auto-negotiation Disable/ Enable DIP-Switch 5: Copper Port 10Mbps/100Mbps DIP-Switch 6: Copper Port Half-Duplex Mode/ Half-Duplex Mode |
| LED Indicator | Power 1, Power 2, Fault: On / Off Fiber Port: Link / Act Ethernet Port: Link / Act PoE: On-connected to PD devices |
| Performance | |
| Memory Buffer | 128 kbits |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port |
| Power Requirements | |
| Power Connection | Removable 6-contact terminal block |
| Input Voltage | 48V–55V DC, Redundant Input |
| Power Redundancy | Yes |
| Relay Output | 24V DC, 1A resistive |
| System Power Consumption | 2.4 Watts |
| Max. PoE Power Budget | Max. 30 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Environmental Limits | |
| Operating Temperature | -10° to 70° C (14° to 158° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Ambient Relative Humidity | 5% to 95% non-condensing |
| Mechanical Characteristics | |
| Housing | Metal, IP30 protection |
| Mounting | DIN-Rail mount, Wall mount (Optional) |
| Dimensions (W × H × D) | 26 × 95 × 75 mm |
| Weight | Unit: 0.661 lb Shipping: 0.903 lb |
| Regulatory Approvals | |
| Certifications | FCC, CE |
| EMI | FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A |
| EMS | CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) |
| Stability Testing | Free Fall: IEC60068-2-32 Shock: IEC 60068-2-27 Vibration: IEC 60068-2-6 |
| Green | RoHS Compliant |
| Warranty | 5 years |
