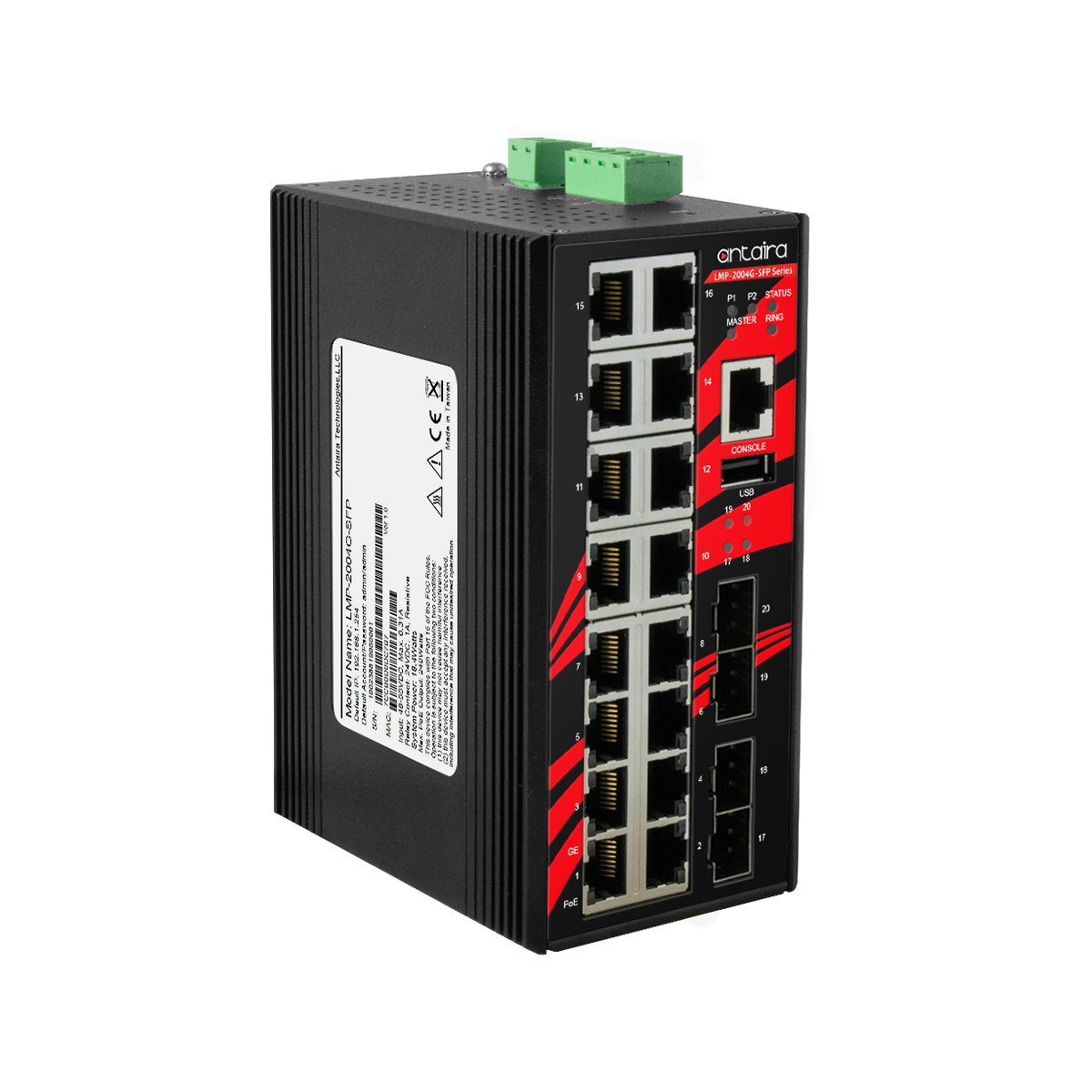

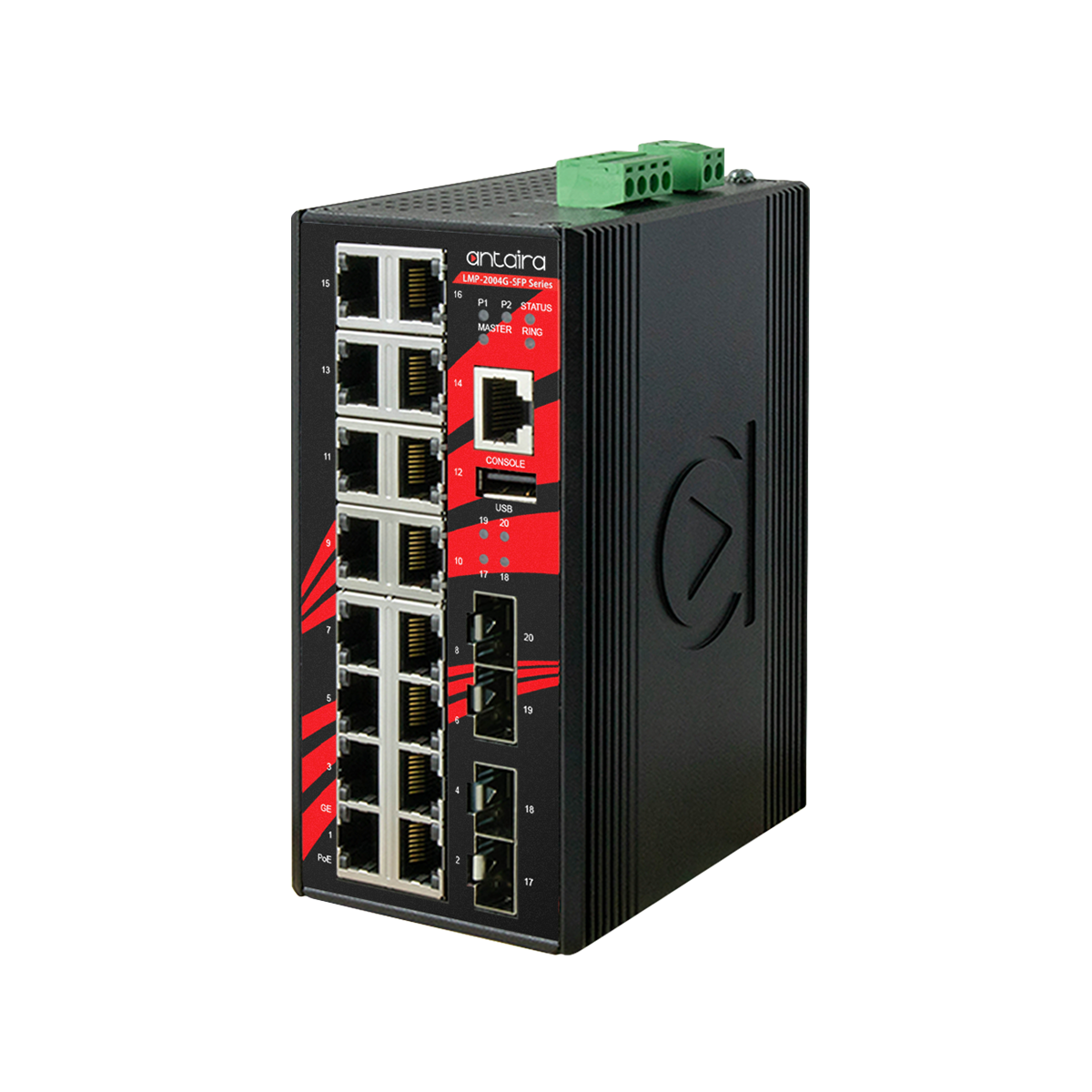

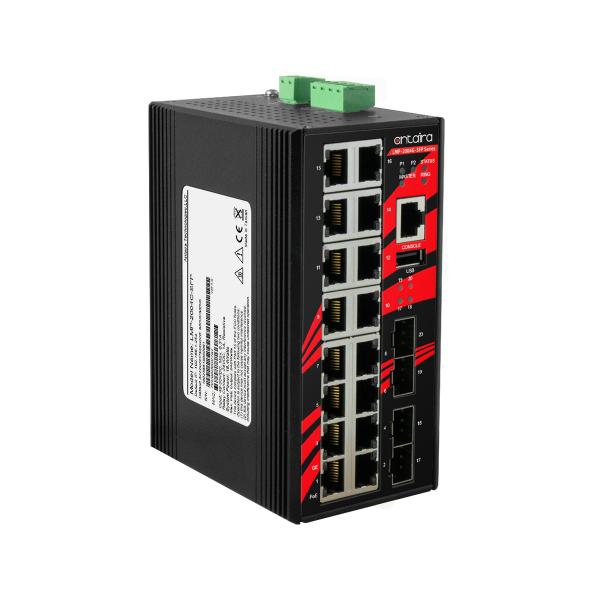

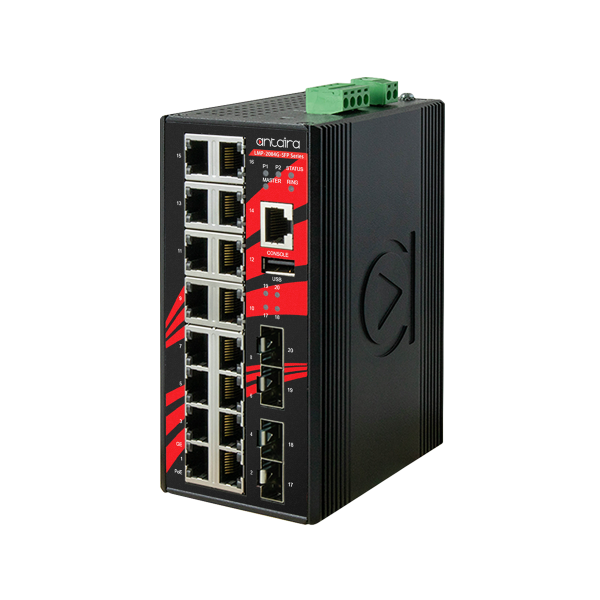

Antaira LMP-2004G-SFP-T

Antaira’s LMP-2004G-SFP-T is a 20-port industrial Gigabit PoE+ managed Ethernet switch embedded with 16*10/100/1000Tx Ethernet ports that support IEEE 802.3at/af for a maximum of 30W/port and 4*100/1000 SFP ports. It is a fully manageable Layer 2+ Ethernet
switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time.
The advanced network filtering and security functions, such as, IGMP, VLAN, QoS, SNMP, RMON, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.

The LMP-2004G-SFP-T is IP30 rated, DIN-rail mountable, and supports a standard operating temperature range of -10°C to 70°C. It also provides high EFT and ESD protection for industrial networking applications, such as, power/utility, water wastewater, oil/gas/mining,
factory automation, security surveillance, ITS, or any other outdoor or harsh environment.

• Supports 16*10/100/1000Tx IEEE 802.3at/af Compliant with 30W/Port
• 4*100/1000 SFP ports
• Network Broadcast Storm Protection
• Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
• Configuration: Web Console, Serial, CLI Command
• Supports IGMP v1/v2
• Supports QoS (IEEE 802.1p) and CoS/ToS
• Supports IEEE 802.1Q VLAN, SNMP v1/v2c/v3

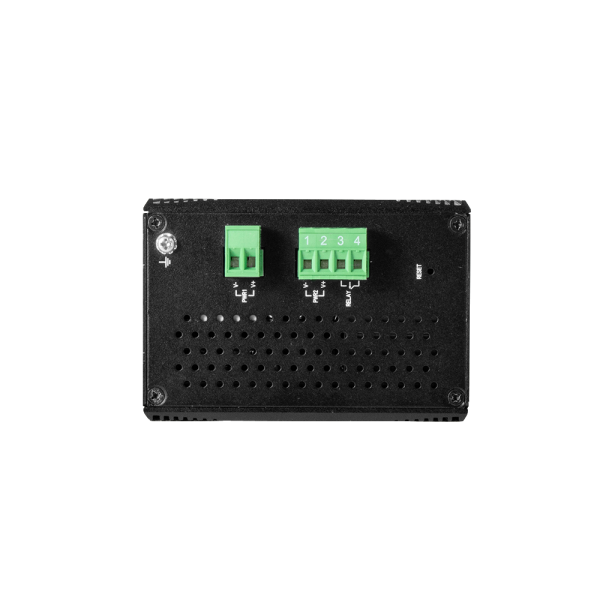

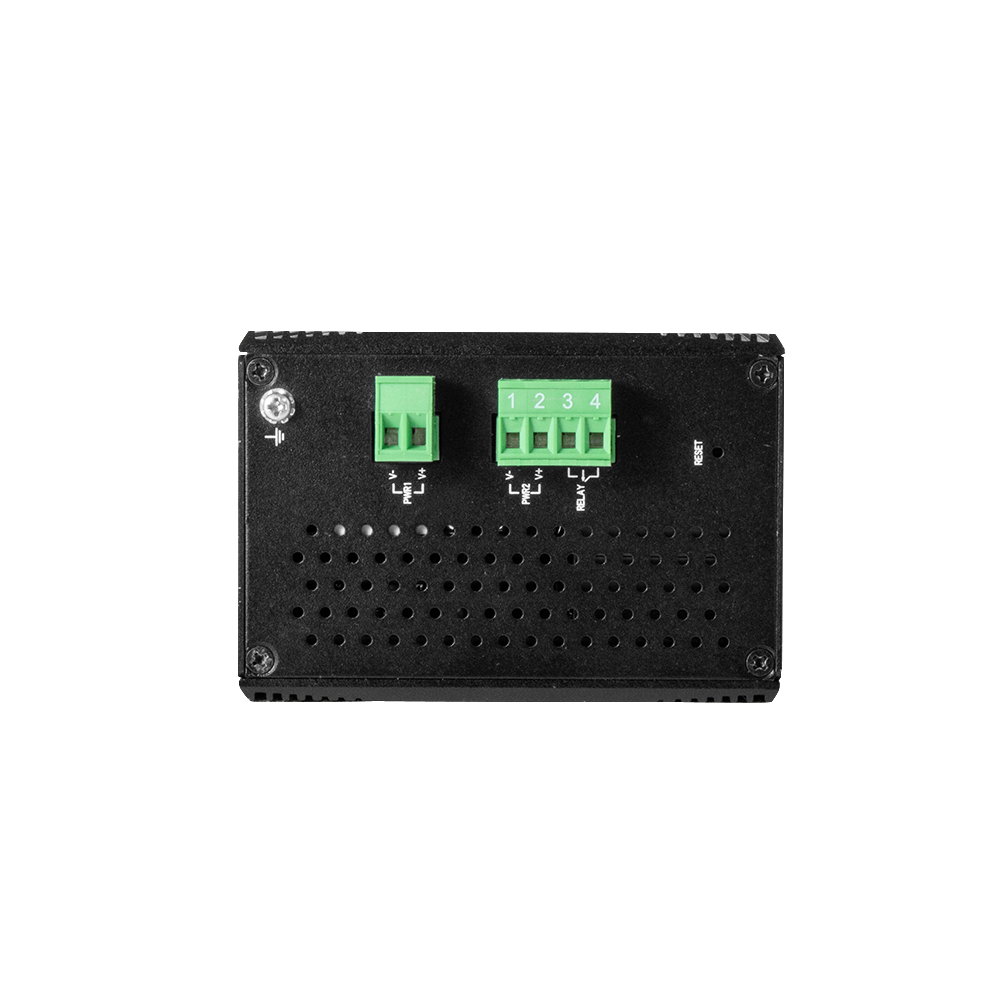

• Redundant Power Input Design 48~55VDC + Built-in Relay Output for Port Break Alarm

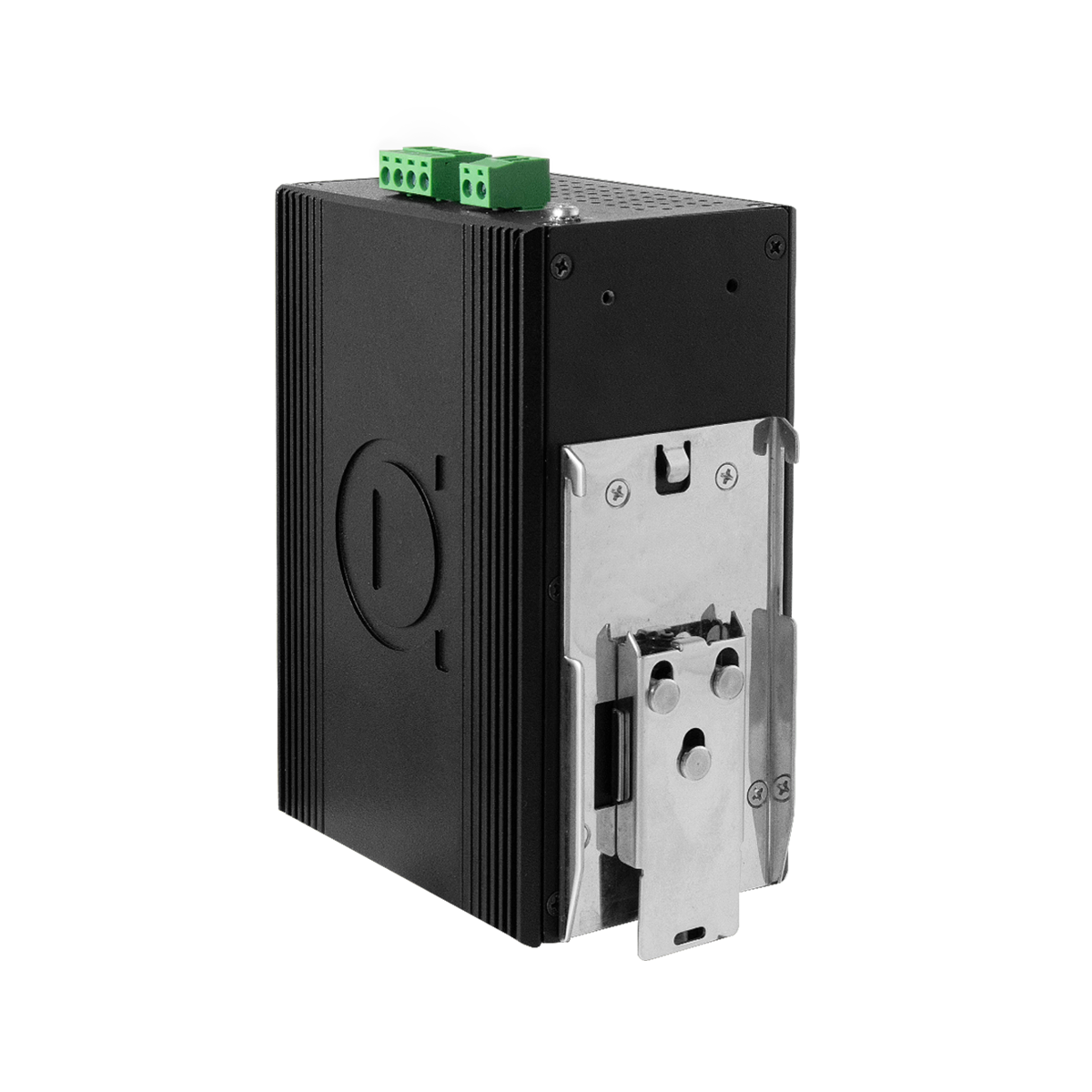

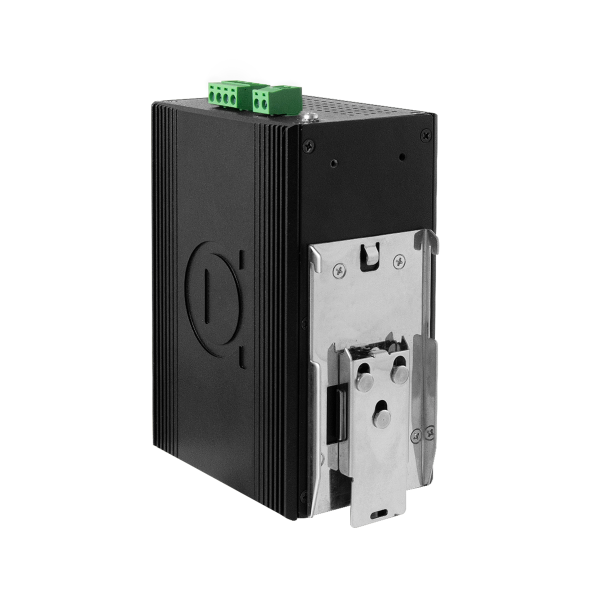

• DIN-Rail and Wall Mount Support
• Operating Temperature Range – EOT: -40° to 75°C
• 5-Year Warranty
