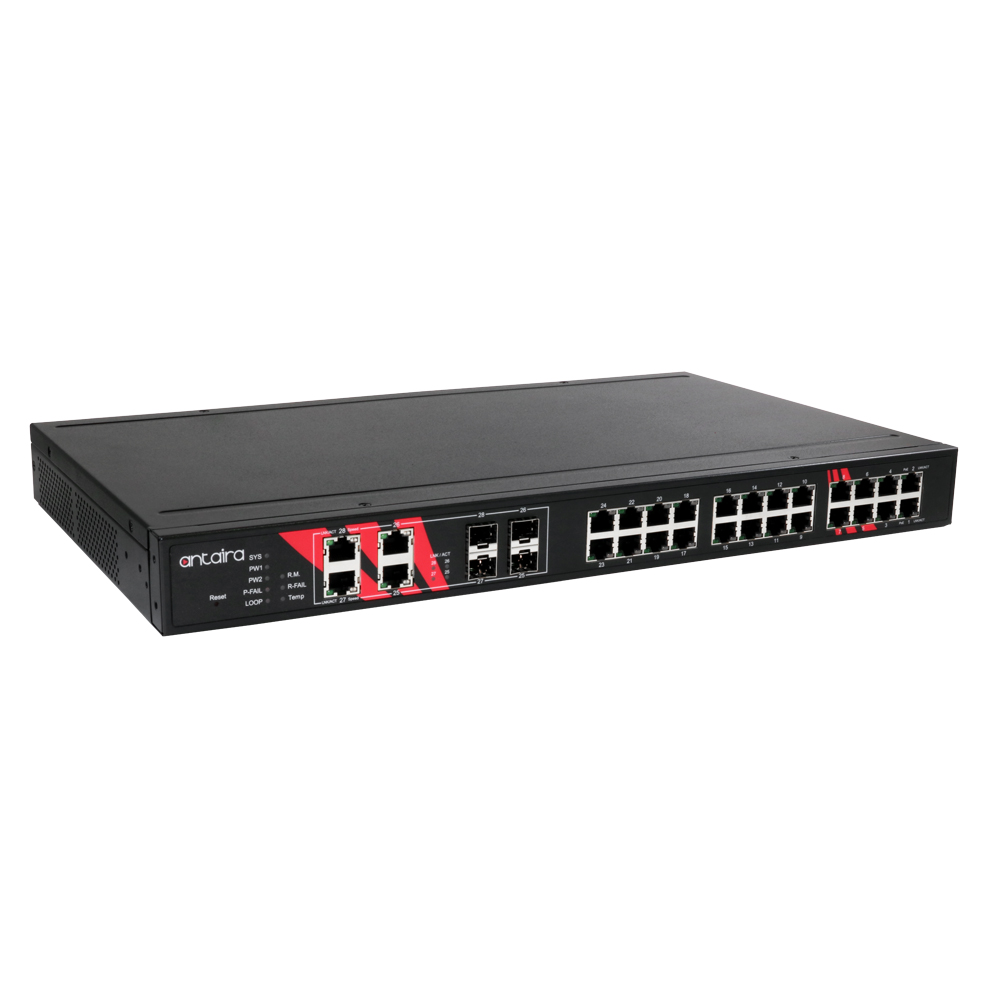

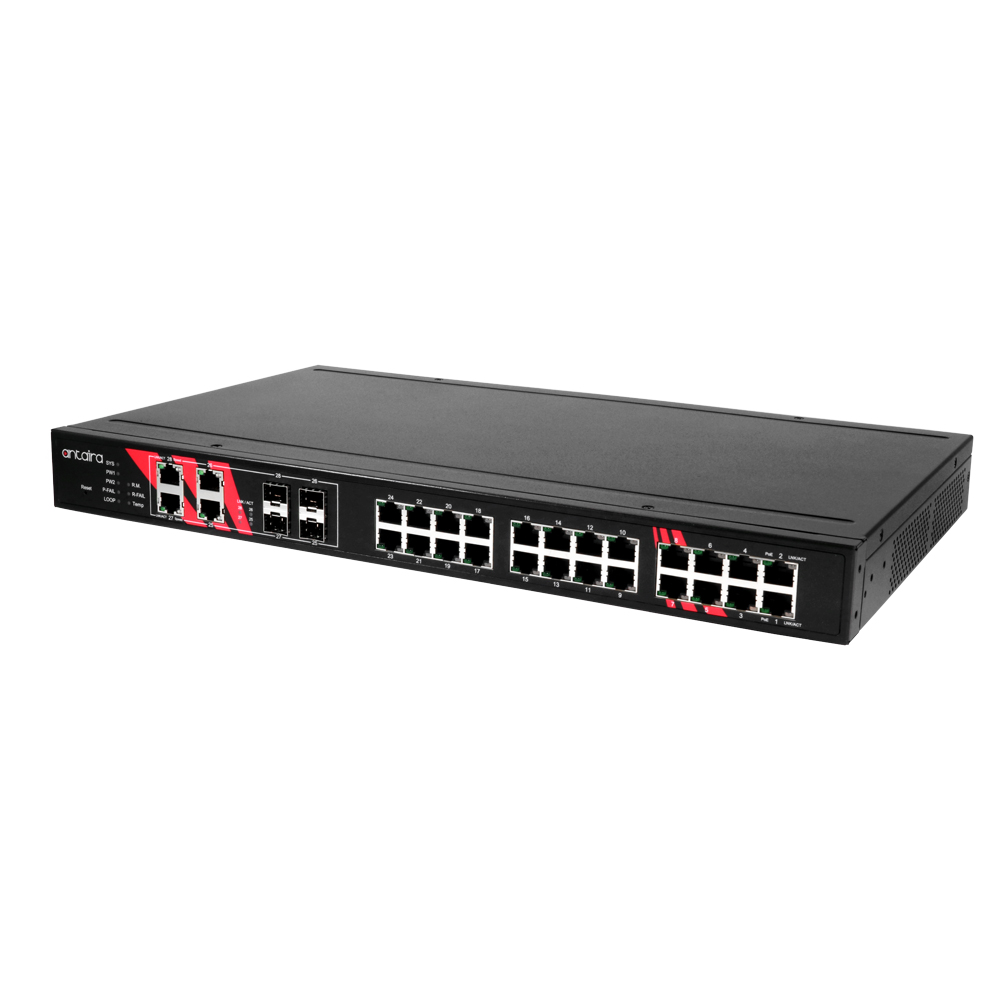

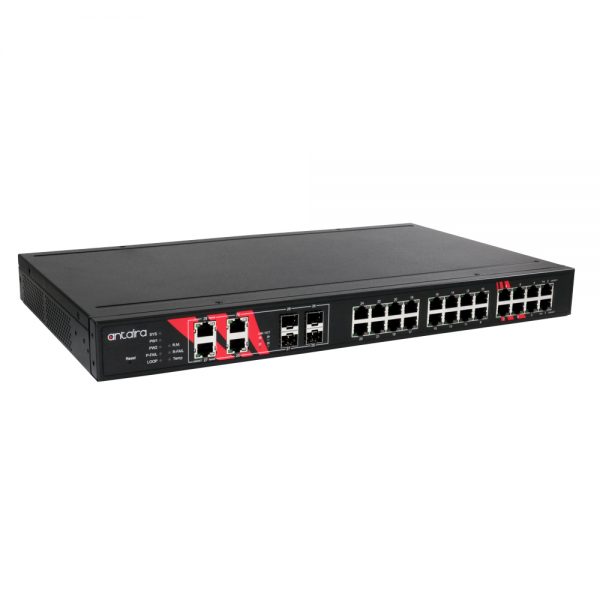

Antaira LNP-2804GN-SFP-T
Antaira Technologies’ LNP-2804GN-SFP-T is an industrial-class Layer 2 full managed switch with 24 Gigabit ports and four Gigabit combo ports. It is designed for rack-mount installation, and can be deployed in demanding outdoor environments. It is suitable
for edge to core industrial networks. It integrates Layer 2 switching software, which is optimized for scale and performance, delivering wire speed across all ports up to 56 Gbps for Layer 2 traffic forwarding. In addition, the PoE design provides up to 30
watts per port to fulfill high power consumption devices. Moreover, it supports high reliability with -40°C ~ 75°C operating temperatures, and has a dual 48VDC input power design to ensure vital network capabilities with minimal downtime.
- Supports 24*10/100/1000Tx IEEE 802.3 af/at PoE+ Gigabit Ports (PSE: 30W/Port) + 4*Gigabit Copper/SFP Combo Ports (4*10/100/1000Tx RJ45 + 4*100/1000 SFP Slots)
- SFP Socket for Easy and Flexible Fiber Expansion
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), HTTPS, SSH and SNMPv3
- Redundancy: Proprietary Ring (Ultra-High-Speed Recovery Time < 20 ms), RSTP/STP (802.1w/1D), MSTP
- 48VDC Power Input (46-57 VDC for PoE af, 53-57 VDC is Recommended for PoE at) & 2 Relay Outputs
- Extended Operating Temperature: -40°C ~75°C
- Power Polarity Reverse Protection
- Overload Current Protection
- 1U Rackmount Design
- IP30 Protection
- 5-Year Warranty
| Technology | |
| IEEE Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Fiber IEEE 802.3x Flow Control IEEE 802.3af/at Power over Ethernet |
| Processing Type | Store and Forward |
| Protocol | Web browser, Telnet, Serial Console, TFTP, SNMPv1/v2c/v3, Port Speed/Duplex Configuration, IPv6, IEEE 802.1Q, GVRP, Port-based VLAN, Proprietary Ring, 802.1w/D RSTP/STP, IP Access Security, Port Security, DHCP Client, Port and IP Binding, 802.1X Port Access Control |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Ethernet Interface | |
| Ethernet Port Count | 24 ports |
| 10/100/1000 BASE-T(X) | 24 ports |
| PoE Port | 24 ports (30W/port) |
| PoE Pin Assignment | V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A) |
| Fiber Interface | |
| Fiber Port Count | 4 ports |
| 100/1000 BASE-(F)X SFP | 4 ports |
| Wavelength | Refers to SFP module |
| Performance | |
| MAC Table Size | 8K |
| Jumbo Frame | 9,216 bytes |
| Memory Buffer | 4 Mbits |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port |
| Switching Architecture | Back-Plane (Switching Fabric): 56Gbps |
| Software | |
| Configuration | Web Console, Telnet, CLI |
| VLAN Group | 1~4094 groups |
| IGMP Group | Up to 256 groups |
| Ethernet Redundancy | STP/RSTP/MSTP, Redundant Ring and Recovery Time |
| Power Requirements | |

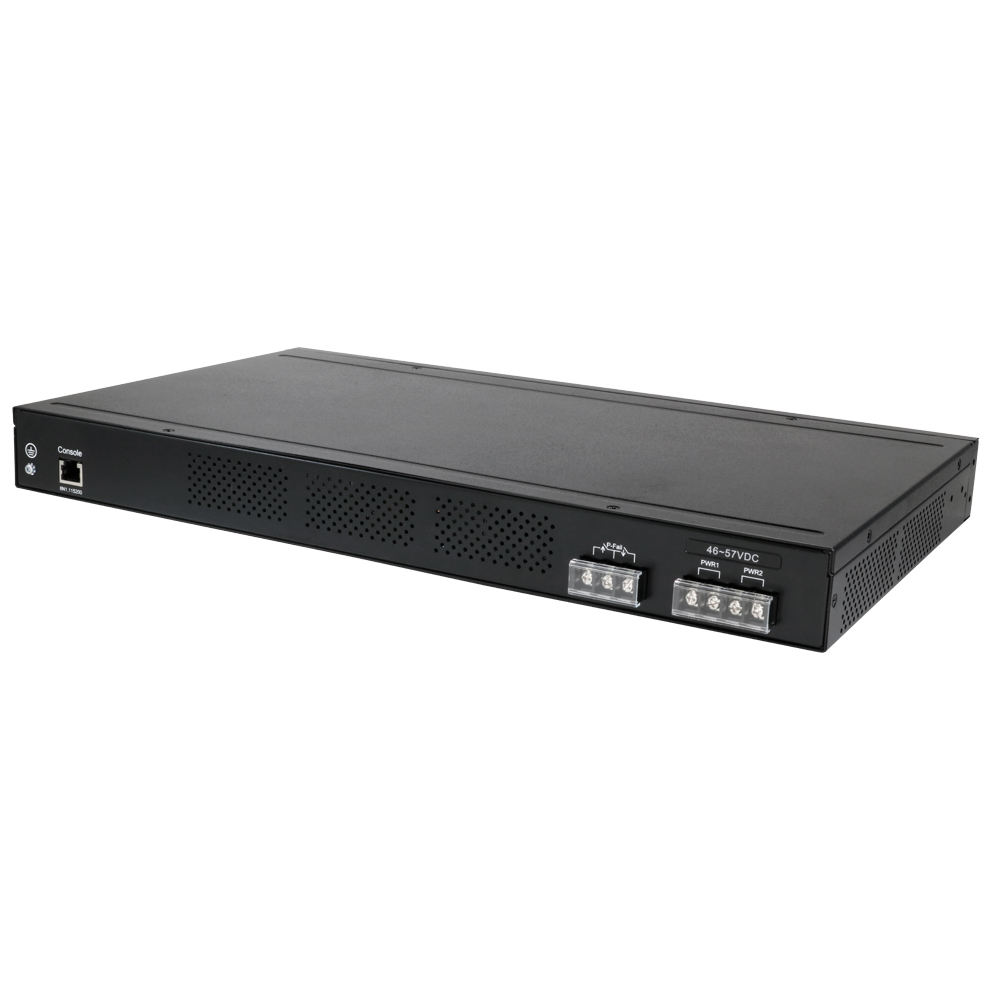

| Power Connection | Removable 4-contact terminal block |
| Input Voltage | 46V–57V DC, Redundant Input |
| Power Redundancy | Yes |
| Relay Output | 24V DC, 1A resistive |
| System Power Consumption | 20 Watts |
| Max. PoE Power Budget | 685 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Environmental Limits | |
| Operating Temperature | -40° to 75° C (-40° to 167° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Ambient Relative Humidity | 5% to 95% non-condensing |
| Mechanical Characteristics | |
| Housing | Metal, IP30 protection |
| Mounting | Rackmount |
| Dimensions (W × H × D) | 438 × 43.6 × 259.2 mm |
| Weight | Unit weight : 8.37lbs |
| Regulatory Approvals | |
| UL 60950-1 | ✔ |
| UL 61010-1 / UL 61010-2-201 | ✔ |
| EMI | FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A |
| EMS | CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) |
| Stability Testing | Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
| Green | RoHS Compliant |
| Warranty | 5 years |
