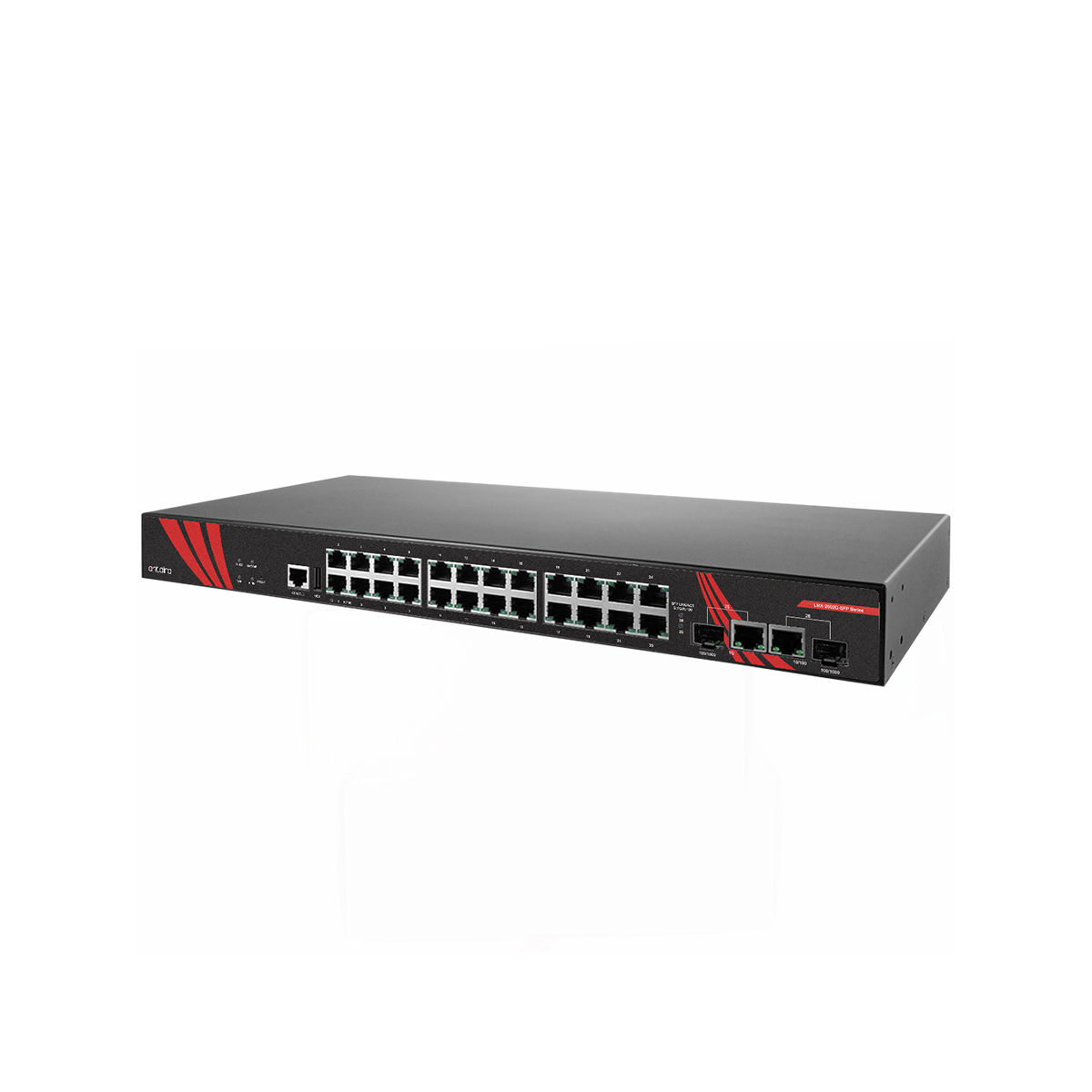

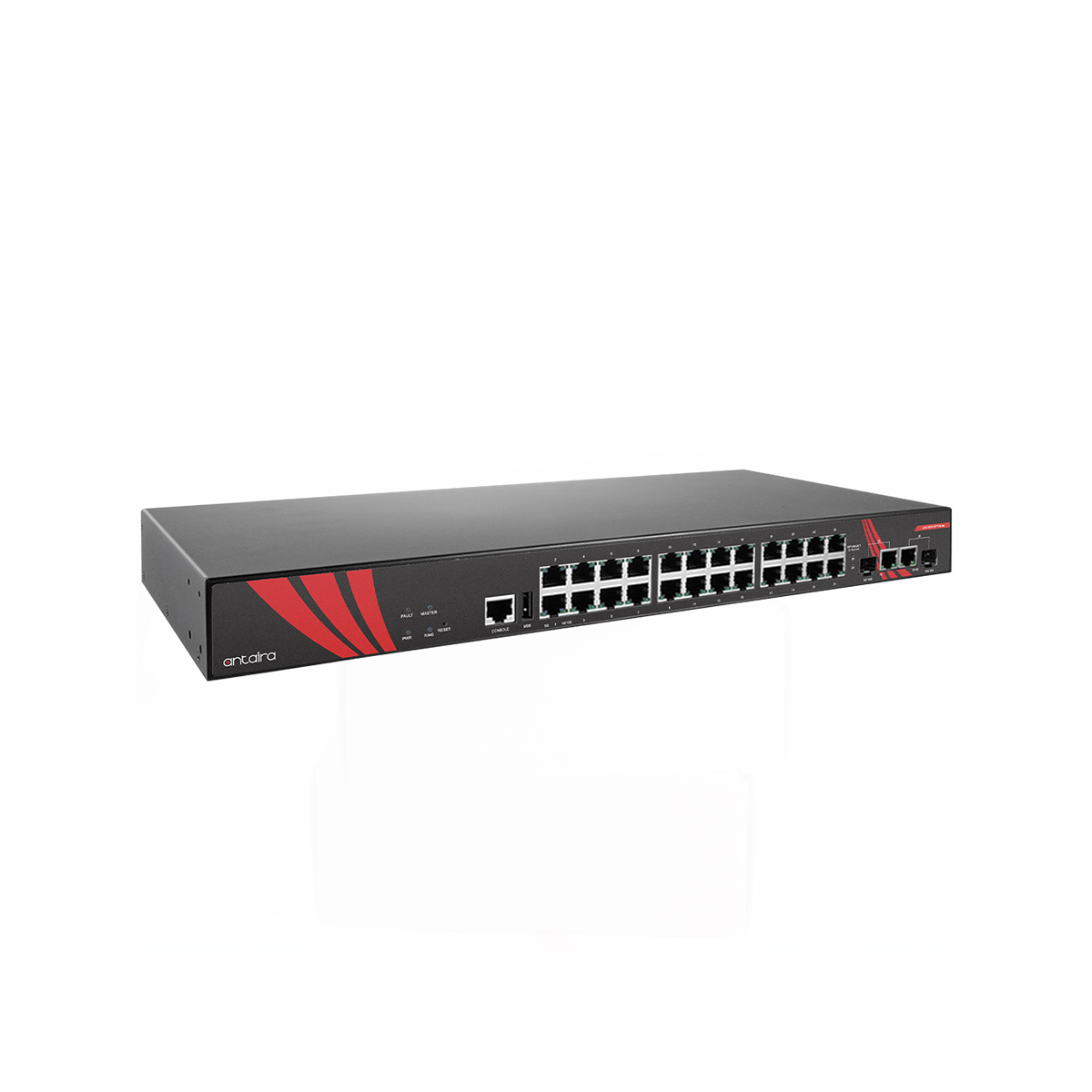

Antaira LMX-2602G-SFP-T

Antaira Technologies’ LMX-2602G-SFP is a 26-port industrial gigabit managed Ethernet switch, Supporting operating temperatur of -40° to 75˚C. It features 24*10/100/1000Tx Ethernet ports and also provides 2*gigabit combo ports with 2*10/100/1000Tx RJ45 and
2*100/1000Fx SFP slots for fiber or twisted pair connections. This product is ideal for applications that demand high density of port connectivity, wide bandwidth and long-distance communication.

The LMX-2602G-SFP series is a fully manageable Layer 2 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring
Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, port lock, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management
for remote SCADA systems or control networks.

The LMX-2602G-SFP series is designed with IP40 rated 1U 19” rackmount. Supporting the two wide operating temperature models with the standard version in -10° to 65˚C and extended version in -40° to 75˚C also makes it the best solution for any harsh and extreme
ambient weather environment applications, such as power/utility, transportation, water wastewater treatment plant, oil/gas, and security surveillance system industries.

• 24-port 10/100/1000Tx Ethernet
• 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots)
• Configuration: http, https, CLI Command, Telnet, SNMP, SSH
• Network redundancy support: G.8032 ERPS v2/STP/RSTP/MSTP
• System Power Input: 90~264VAC
• Built-in Relay Output Warning for Power Failure
• IP40 Rugged Metal Case Design
• 19” Rack-Mounting Installation Design
• Operating Temperature Range – EOT: -40°C to 75°C
• 5-Year Warranty
