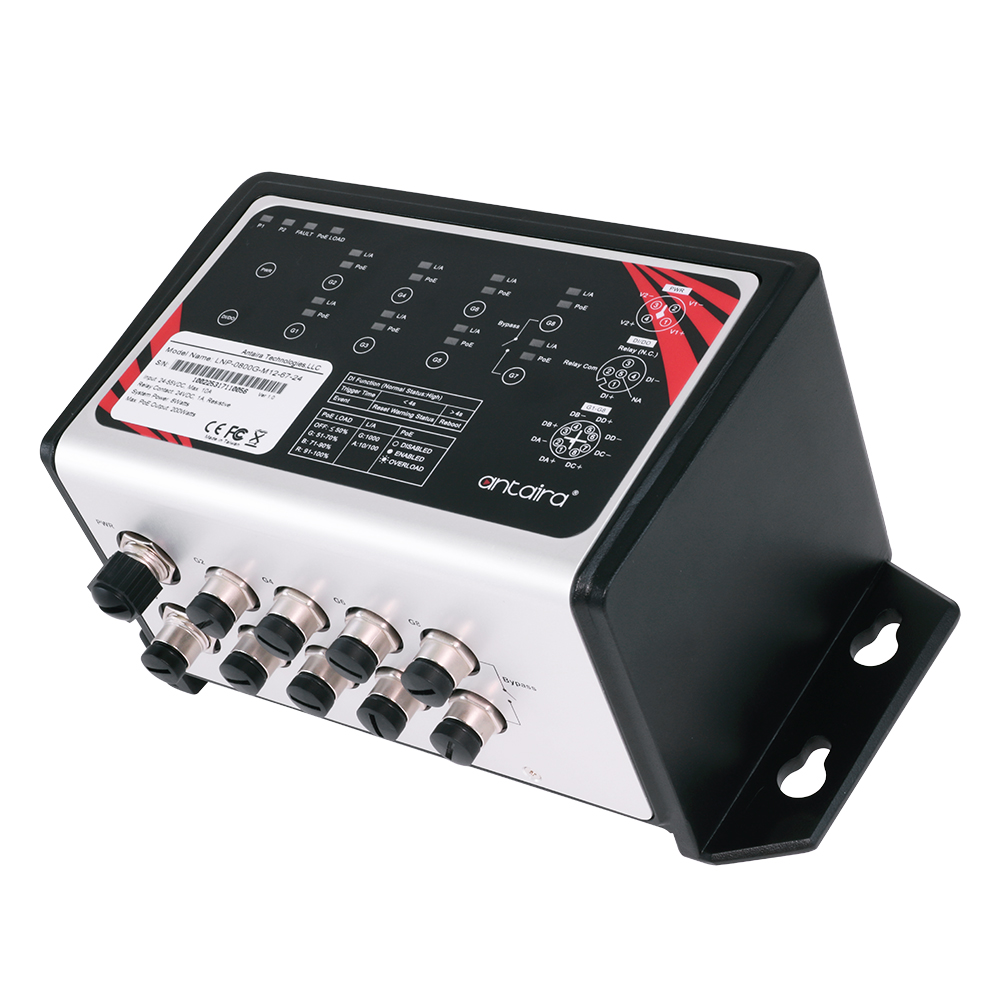

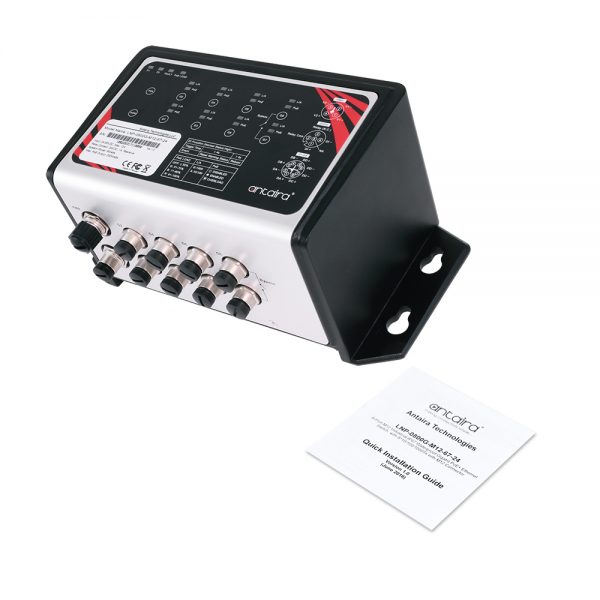

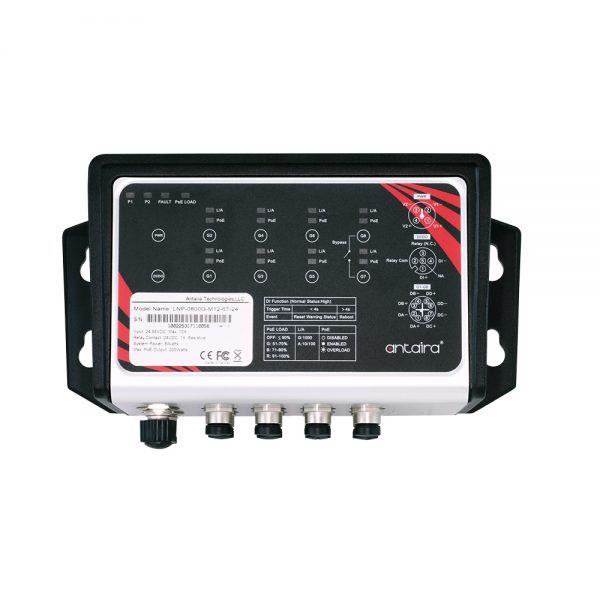

Antaira LNP-0800G-M12-67-24-T

8-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Ethernet Switch, w/8*10/100/1000Tx (30W/Port) M12 Connector (X-Coded); -40° to 70°C

Mã: LNP-0800G-M12-67-24-T Danh mục: Switch công nghiệp Antaira Từ khóa: LNP-0800G-M12-67-24-T

Mô tả
Sản phẩm liên quan

LNP-0800G-M12-67-24-T Ethernet switch provides 8 Gigabit Ethernet M12 ports with all 8 IEEE 802.3at compliant PoE (Power-over-Ethernet) ports. The switches are classified as power source equipment (PSE) and provide up to 30 watts of power per port. The LNP-0800G-M12-67-24-T
features a wide operating temperature of -40° to 70° C that allows it to be used in some of the harshest industrial environments. Moreover, its M12 connectors ensures a tight, robust connection, and guarantees reliable operation on applications that are subject
to high vibration and shock.

8-Port 10/100/1000Tx Ethernet with IEEE 802.3at Compliant PoE+
Redundant Power Inputs Design, 24~55VDC
Built-in Power Booster Design for PoE/PoE+ Output
Built-in Relay Output Warning for Power/PoE Failure
Bypass Design for Daisy Chain Redundancy
Support Digital Input/Digital Output
IP67 Rugged Waterproof Metal Case Design
M12 X-Coded Connector for Ensure Tight and Robust Connection
Wall Mountable
5-Year Warranty

Technology
IEEE Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3af/at Power over Ethernet
Processing Type	Store and Forward
Protocol	CSMA/CD
Flow Control	IEEE 802.3x flow control, back pressure flow control
Ethernet Interface
Ethernet Port Count	8 ports
10/100/1000 BASE-T(X)	8 ports
PoE Port	8 ports (30W/port)
PoE Pin Assignment	V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A)

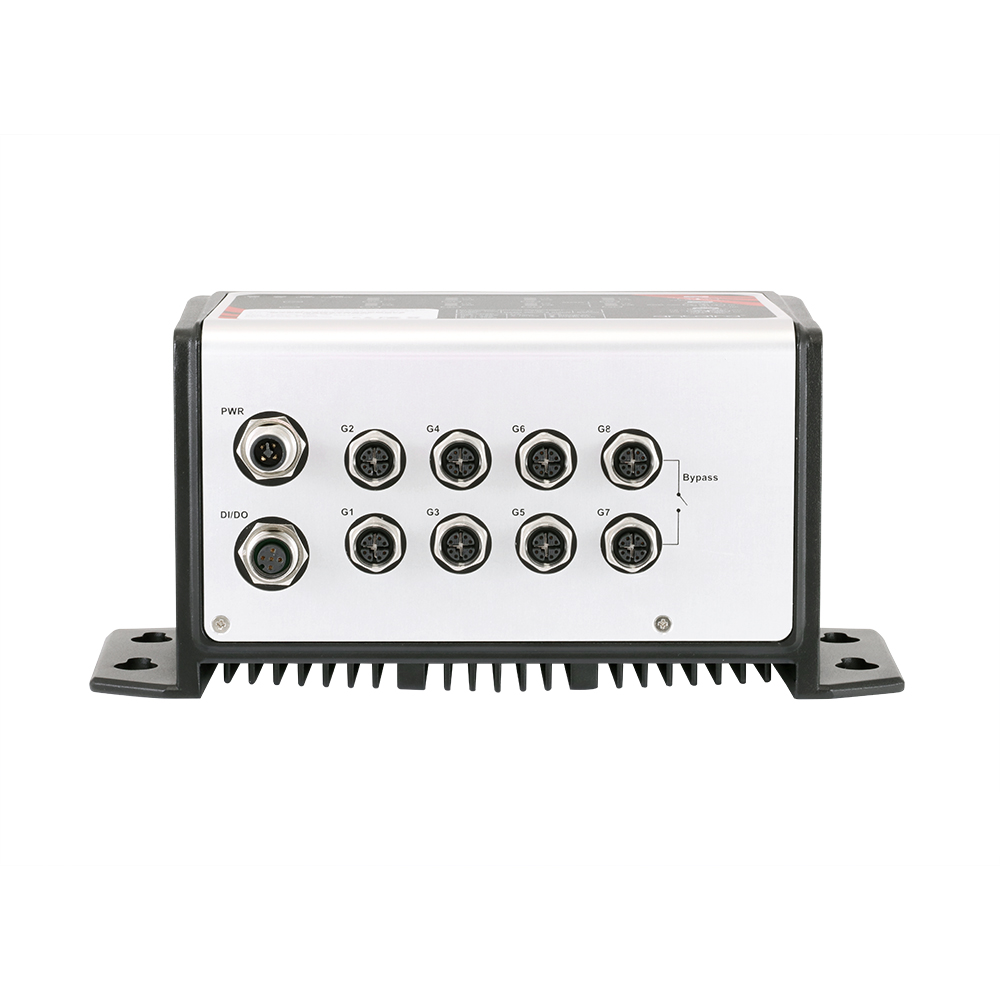

M12 Connector	8 × X-Coded M12 Connector
Performance
MAC Table Size	8K
Jumbo Frame	12.2 Kbytes
Memory Buffer	4Mbits
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port
Switching Architecture	Back-Plane (Switching Fabric): 16Gbps
Power Requirements
Power Connection	M12, 4-pin T-Coded male connector
Input Voltage	24V–55V DC, Redundant Input
Power Redundancy	Yes
Relay Output	24V DC, 1A resistive, M12 5-pin A-coded female connector
System Power Consumption	8 Watts
Max. PoE Power Budget	240 Watts
Overload Current Protection	Present
Reverse Polarity Protection	Present
Mechanical Characteristics
Housing	Metal, IP67 protection
Mounting	Wall mount
Dimensions (W × H × D)	253.57 × 116.12 × 122 mm
Weight	Unit weight : 7.05 lbs Shipping weight : 8.82 lbs
Regulatory Approvals
EMI	FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A
EMS	CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field)
Stability Testing	Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6
Green	RoHs Compliant
Warranty	5 years
