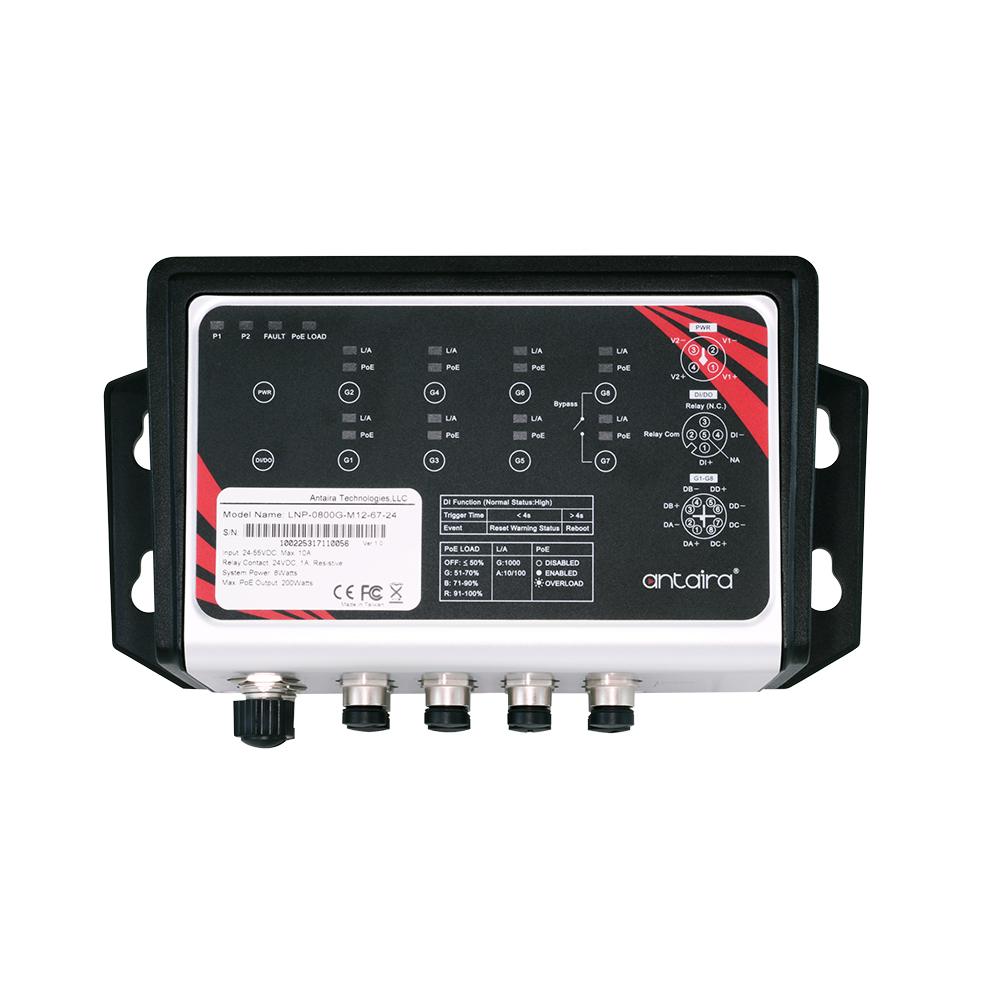

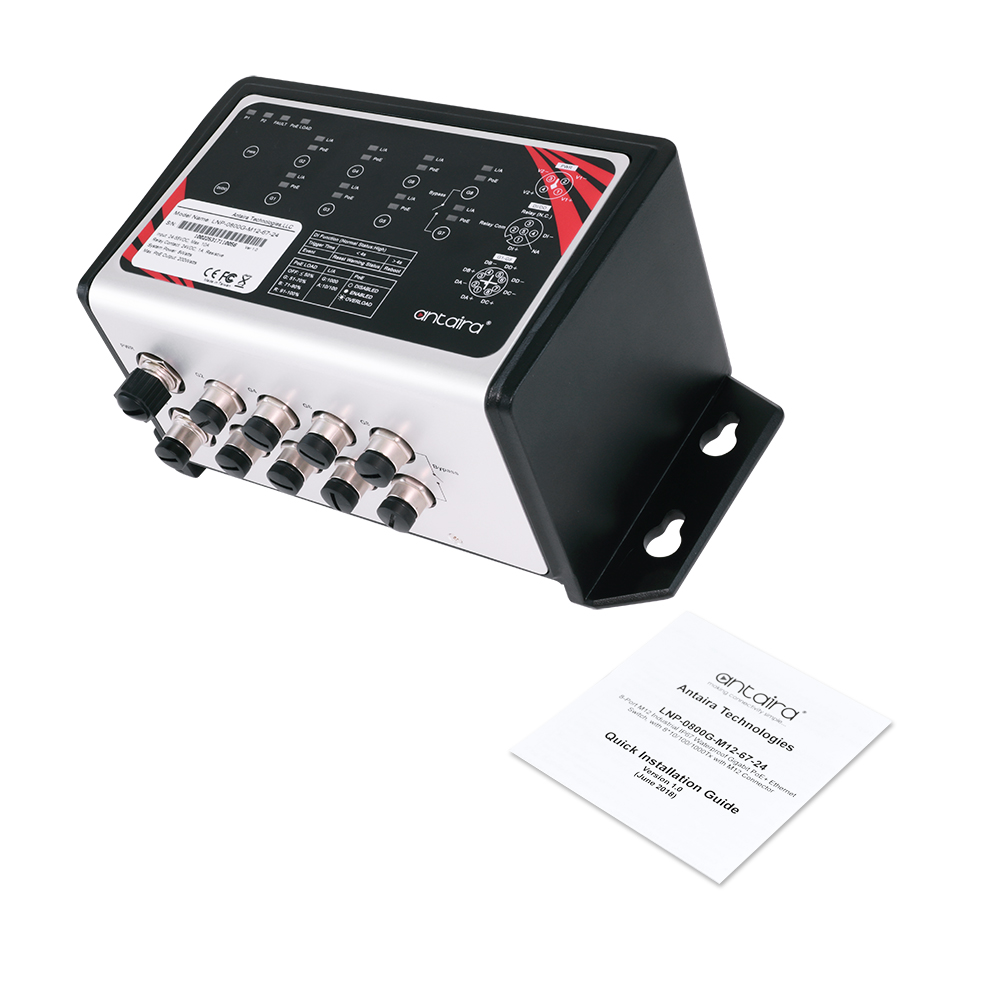

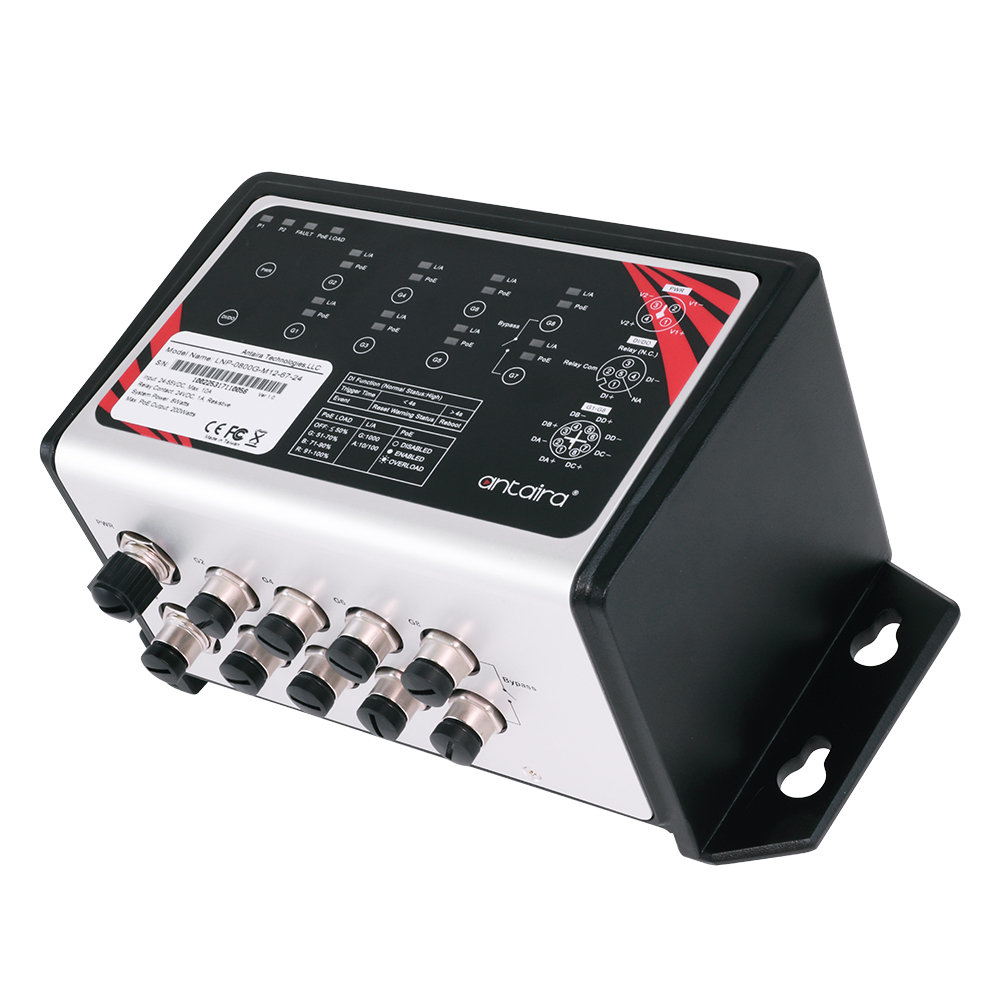

Antaira LNP-0800G-M12-67-24
LNP-0800G-M12-67-24 Ethernet switch provides 8 Gigabit Ethernet M12 ports with all 8 IEEE 802.3at compliant PoE (Power-over-Ethernet) ports. The switches are classified as power source equipment (PSE) and provide up to 30 watts of power per port.
LNP-0800G-M12-67-24 features a wide operating temperature of -10° to 60° C that allows it to be used in some of the harshest industrial environments.
Moreover, its M12 connectors ensures a tight, robust connection, and guarantees reliable operation on applications that are subject to high vibration and shock.
- 8-Port 10/100/1000Tx Ethernet with IEEE 802.3at Compliant PoE+
- Redundant Power Inputs Design, 24~55VDC
- Built-in Power Booster Design for PoE/PoE+ Output
- Built-in Relay Output Warning for Power/PoE Failure
- Bypass Design for Daisy Chain Redundancy
- Support Digital Input/Digital Output
- IP67 Rugged Waterproof Metal Case Design
- M12 X-Coded Connector for Ensure Tight and Robust Connection
- Wall Mountable
- 5-Year Warranty
| Technology | |
| IEEE Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3af/at Power over Ethernet |
| Processing Type | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Ethernet Interface | |
| Ethernet Port Count | 8 ports |
| 10/100/1000 BASE-T(X) | 8 ports |
| PoE Port | 8 ports (30W/port) |
| PoE Pin Assignment | V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A) |

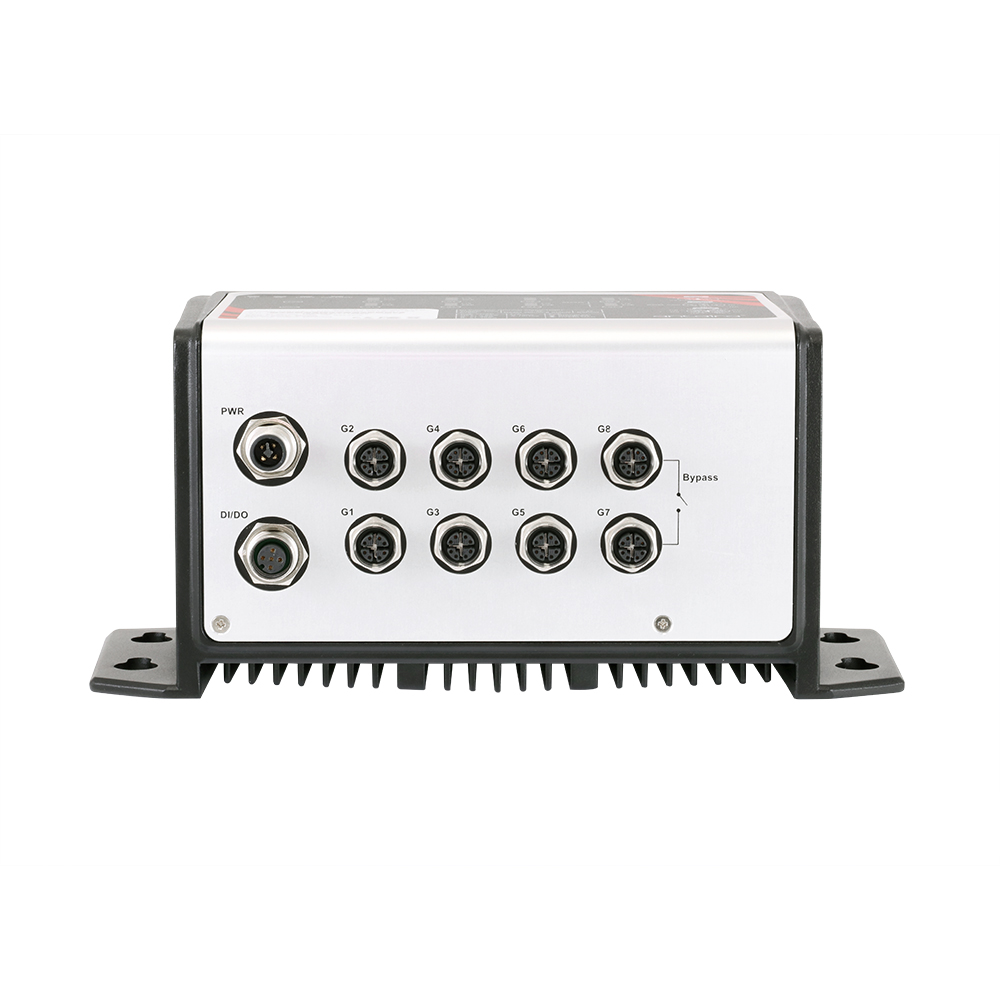

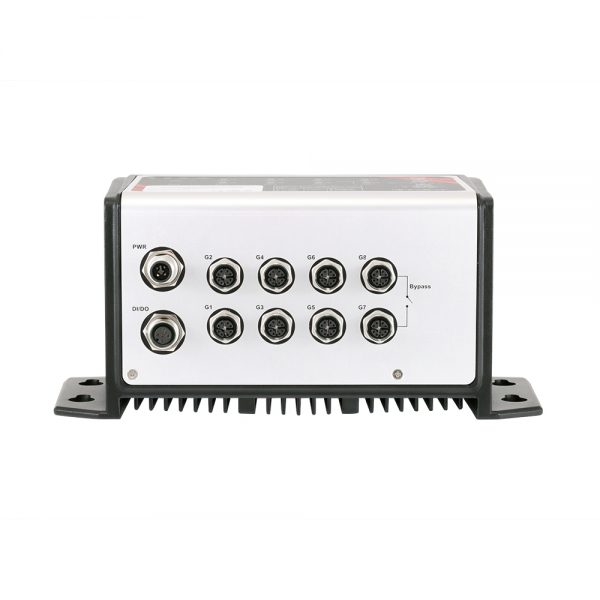

| M12 Connector | 8 × X-Coded M12 Connector |
| Performance | |
| MAC Table Size | 8K |
| Jumbo Frame | 12.2 Kbytes |
| Memory Buffer | 4Mbits |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port |
| Switching Architecture | Back-Plane (Switching Fabric): 16Gbps |
| Power Requirements | |
| Power Connection | M12, 4-pin T-Coded male connector |
| Input Voltage | 24V–55V DC, Redundant Input |
| Power Redundancy | Yes |
| Relay Output | 24V DC, 1A resistive, M12 5-pin A-coded female connector |
| System Power Consumption | 8 Watts |
| Max. PoE Power Budget | 240 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Environmental Limits | |
| Operating Temperature | -40° to 70° C (-40° to 158° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Ambient Relative Humidity | 5% to 95% non-condensing |
| Mechanical Characteristics | |
| Housing | Metal, IP67 protection |

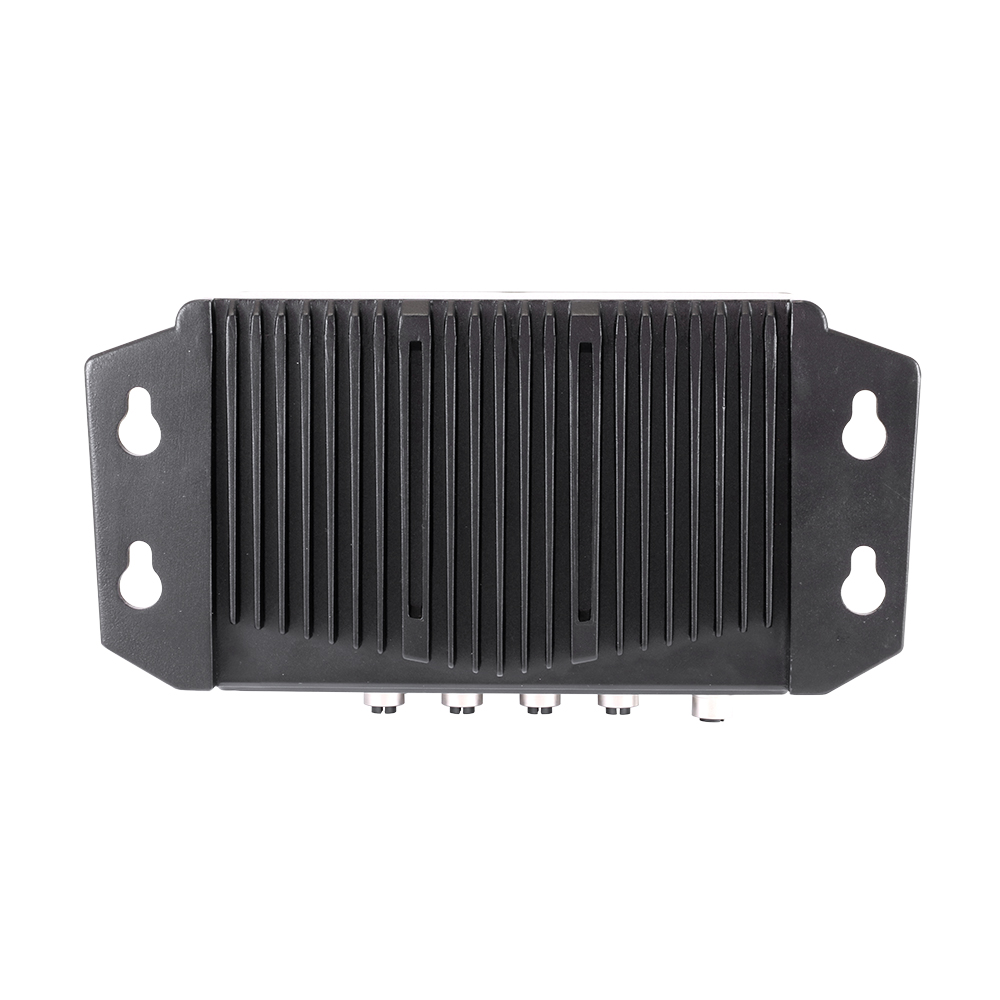

| Mounting | Wall mount |
| Dimensions (W × H × D) | 253.57 × 116.12 × 122 mm |
| Weight | Unit weight : 7.05 lbs Shipping weight : 8.82 lbs |
| Regulatory Approvals | |
| EMI | FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A |
| EMS | CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) |
| Stability Testing | Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
| Green | RoHs Compliant |
| Warranty | 5 years |
