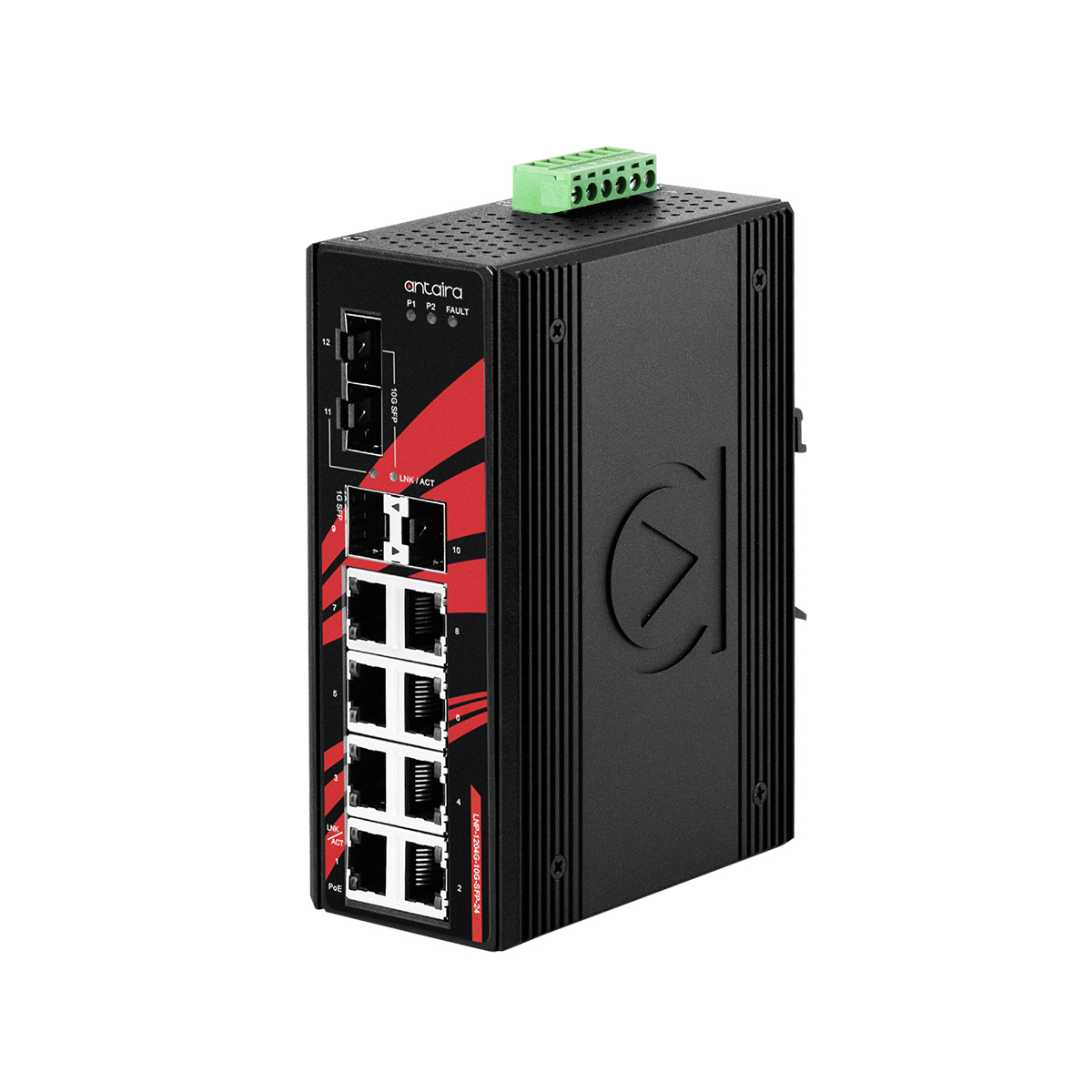

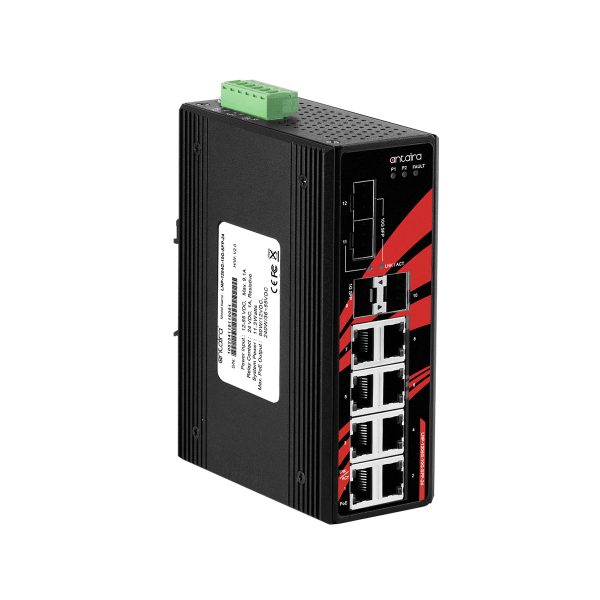

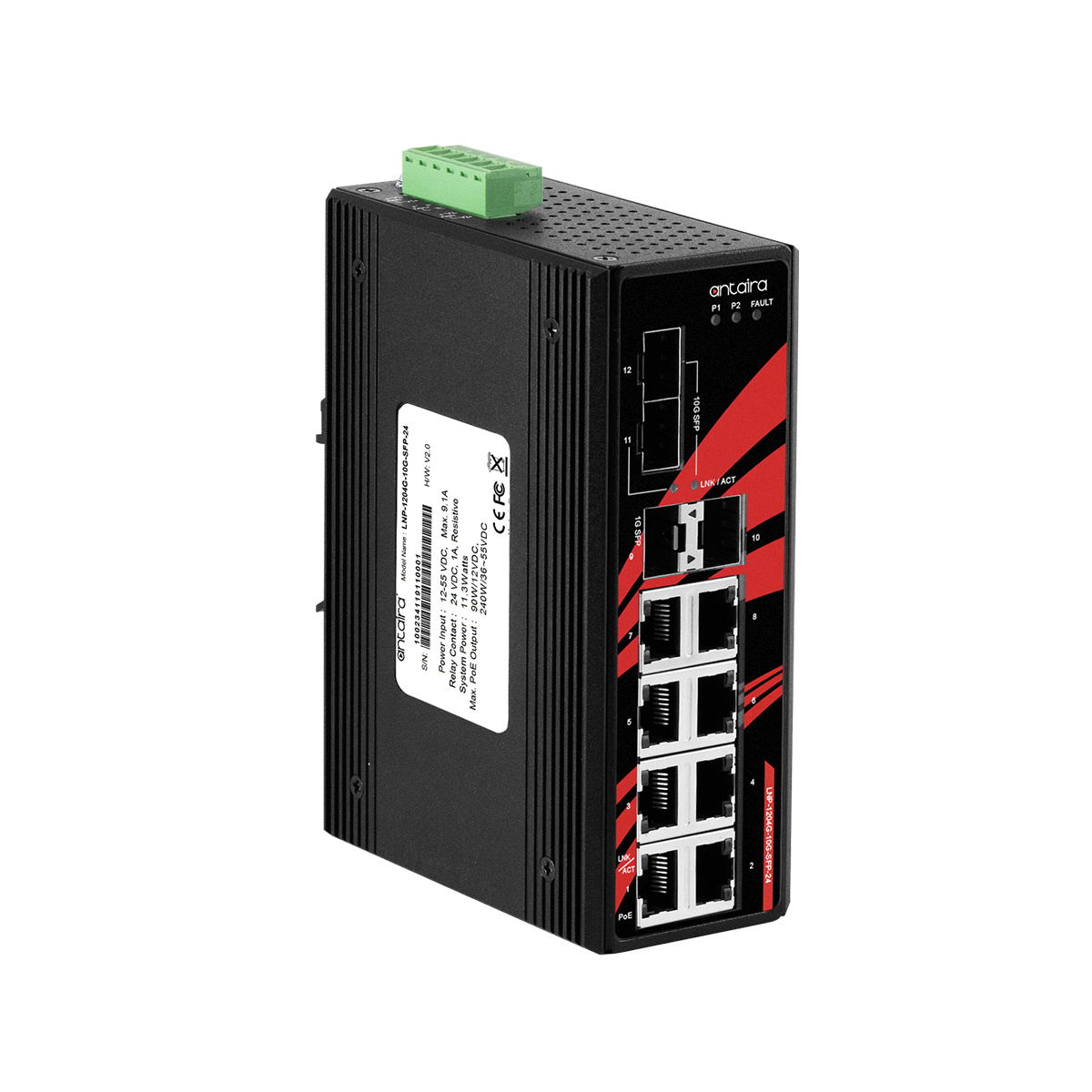

Antaira LNP-1204G-10G-SFP-24
Antaira Technologies’ LNP-1204G-10G-SFP-24 is industrial gigabit PoE+ unmanaged Ethernet switches featuring 8*10/100/1000Tx Gigabit Ethernet ports that support IEEE802.3at for a maximum of 30W/port. The LNP-1204G-10G-SFP-24 has 2*1G SFP slots and 2*10G SFP+
slots which provide options for long-distance fiber connections. The Ethernet switches is designed with high EFT and ESD protection and support standard operating temperature from -40° to 65°C.
LNP-1204G-10G-SFP-24 is IP30 rated and DIN-rail mountable. It is designed to be powered with low voltage input (12~55VDC) while still providing the higher voltages required by the PoE standards. Additionally, these industrial PoE Ethernet switches provide
connectivity for outdoor or harsh industrial automation application environments, such as security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated
production lines in factory automation.
- Supports 8*10/100/1000Tx IEEE 802.3af/at Compliant with 30W/Port, 2*1G SFP Slots, and 2*10G SFP+ Slots
- Store-and-Forward Switching Architecture
- 60Gbps Back-Plane (Switching Fabric)
- 16K MAC Address Table
- 10Kbytes Jumbo Frame Support
- Redundant Power Input Design: 12~55VDC
- Built-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design

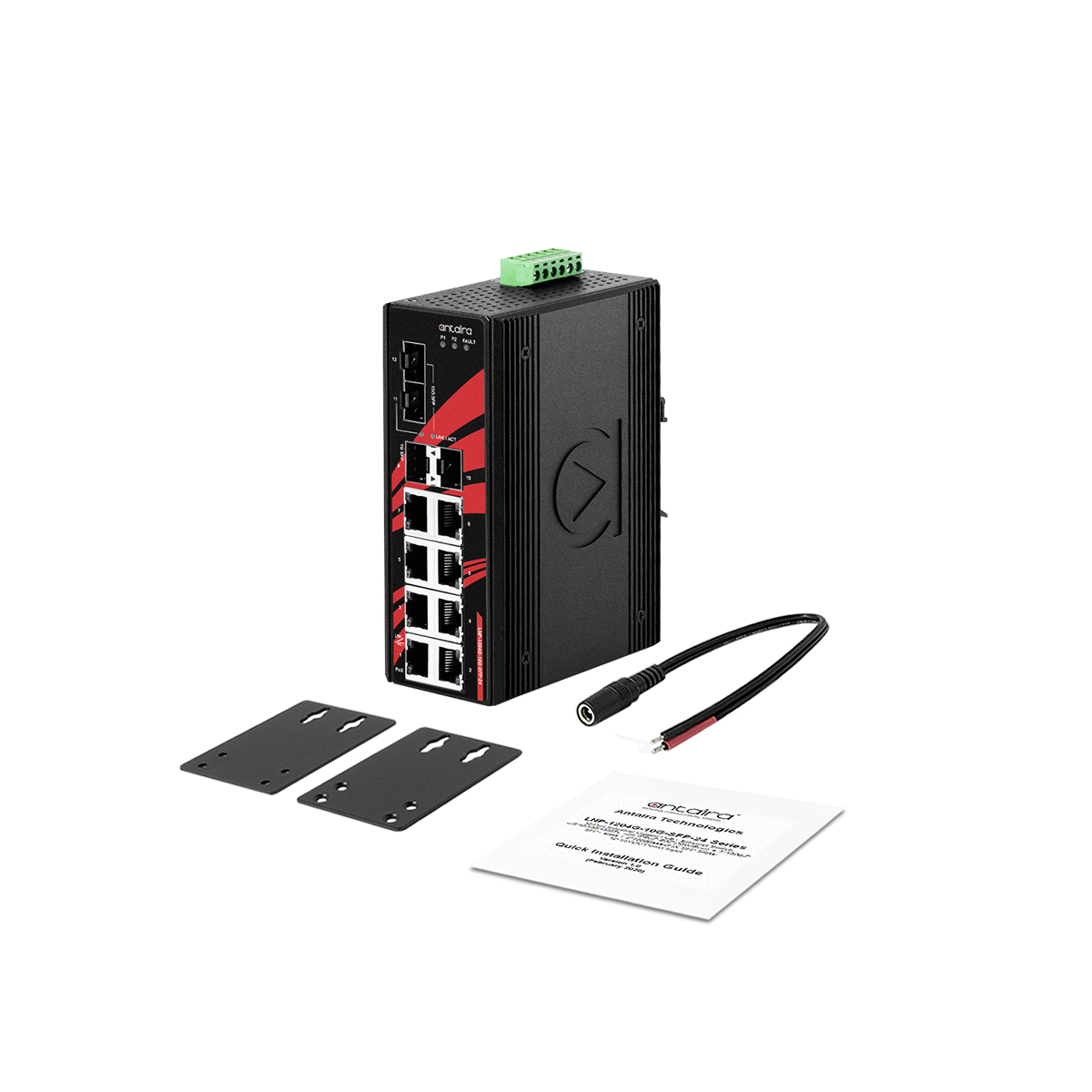

- DIN-Rail and Wall Mount Support Included
- Operating Temperature Range: -40°C~65°C
- 5-Year Warranty
| Technology | |
| IEEE Standards | IEEE 802.3 10Tx Ethernet IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab 1000Tx Gigabit Ethernet IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3af/at Power over Ethernet |
| Processing Type | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Ethernet Interface | |
| Ethernet Port Count | 8 ports |
| 10/100/1000 BASE-T(X) | 8 ports |
| PoE Port | 8 ports (30W/port) |
| PoE Pin Assignment | V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A) |
| Fiber Interface | |
| Fiber Port Count | 4 ports |
| 100/1000 BASE-(F)X SFP | 2 ports |
| 10G SFP+ | 2 ports |
| Wavelength | Refers to SFP module |
| Other Interface | |
| LED Indicator | System: Power 1, Power 2, Fault Ethernet Ports: On-Link/Flash-data transmitting PoE: On-connected to PD devices SFP: Link/Active |
| Performance | |
| MAC Table Size | 16K |
| Jumbo Frame | 10 Kbytes |
| Memory Buffer | 8 Mbits |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port 14,880,000pps for 10 Gigabit Ethernet Port |
| Switching Architecture | Back-Plane (Switching Fabric): 60Gbps |
| Power Requirements | |

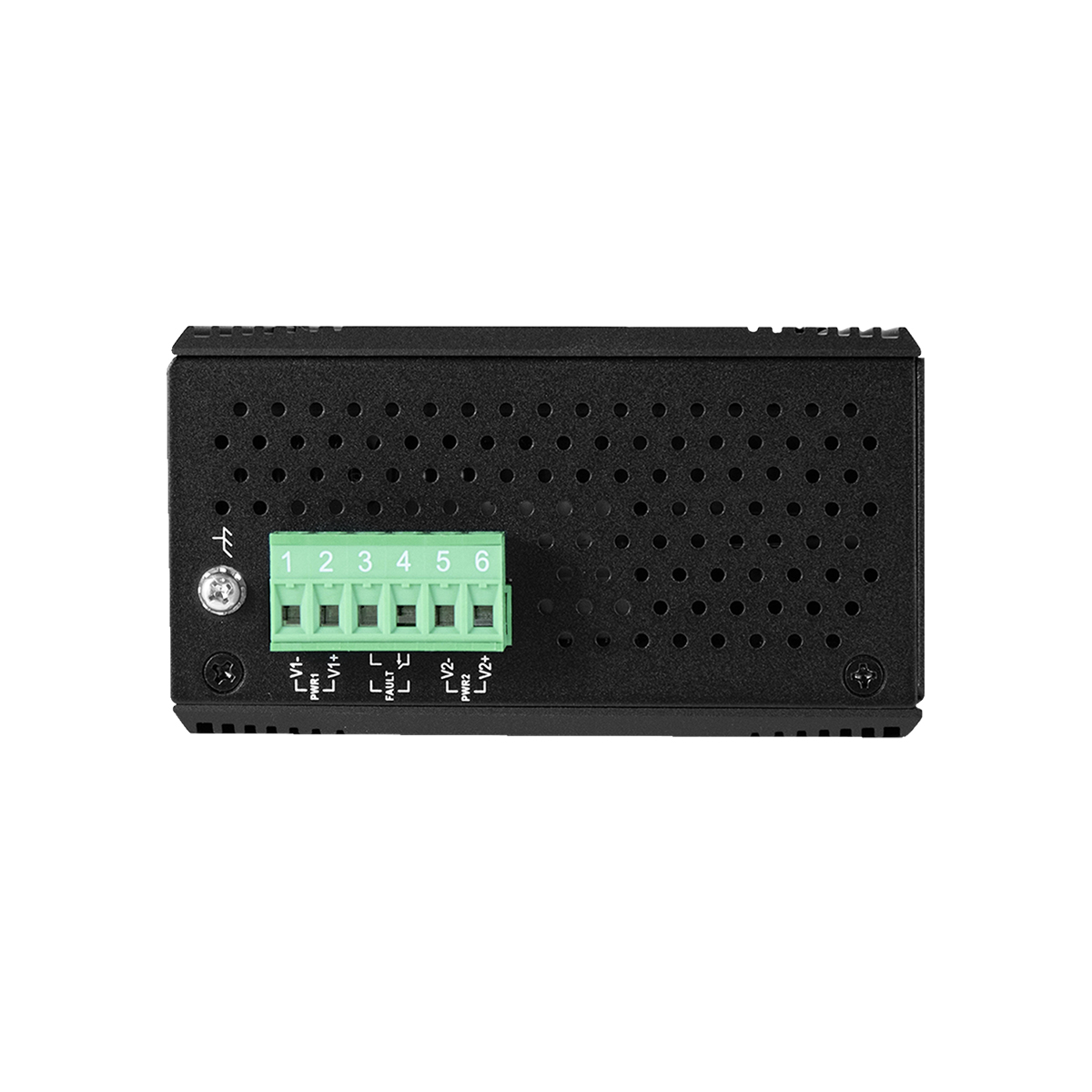

| Power Connection | Removable 6-contact terminal block |
| Input Voltage | 12V–55V DC, Redundant Input |
| Power Redundancy | Yes |
| Relay Output | 24V DC, 1A resistive |
| System Power Consumption | 11.3 Watts |
| Max. PoE Power Budget | 240 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Environmental Limits | |
| Operating Temperature | -40° to 65° C (-40° to 149° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Ambient Relative Humidity | 5% to 95% non-condensing |
| Mechanical Characteristics | |
| Housing | Metal, IP30 protection |

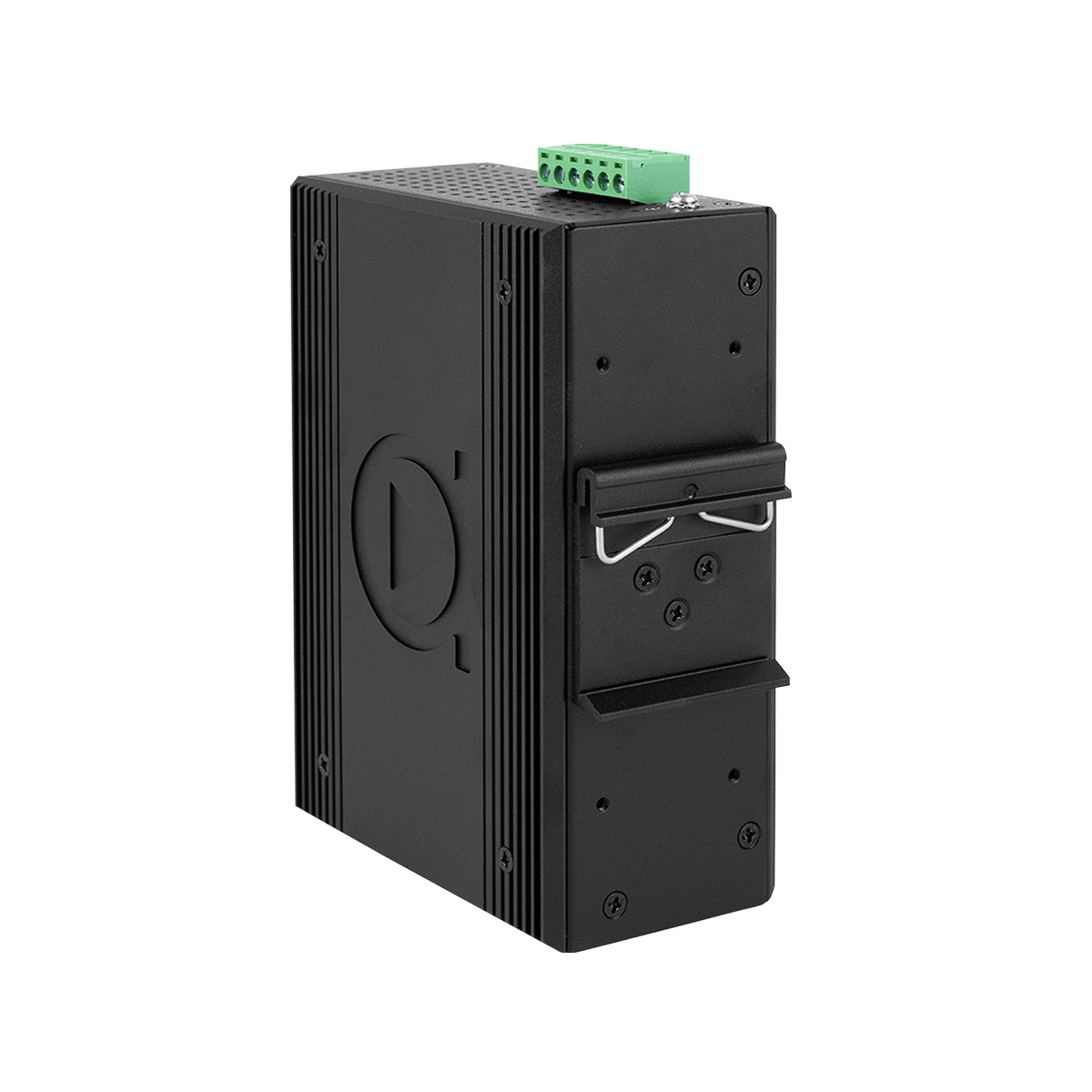

| Mounting | DIN-Rail mount, Wall mount (Optional) |
| Dimensions (W × H × D) | 54 × 142 × 99 mm |
| Weight | Unit weight : 2.63 lbs Shipping weight : 3.24 lbs |
| Regulatory Approvals | |
| Certifications | FCC, CE |
| UL 61010-1 / UL 61010-2-201 | ✔ |
| EMI | FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A |
| EMS | CE EN 55035 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) |
| Stability Testing | Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
| Green | RoHs Compliant |
| Warranty | 5 years |
