Antaira LNP-1204G-SFP

12-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch, w/ 8*10/100/1000Tx (30W/Port) + 4*100/1000 SFP Slots

Mã: LNP-1204G-SFP Danh mục: Switch công nghiệp Antaira Từ khóa: LNP-1204G-SFP

Mô tả
Sản phẩm liên quan

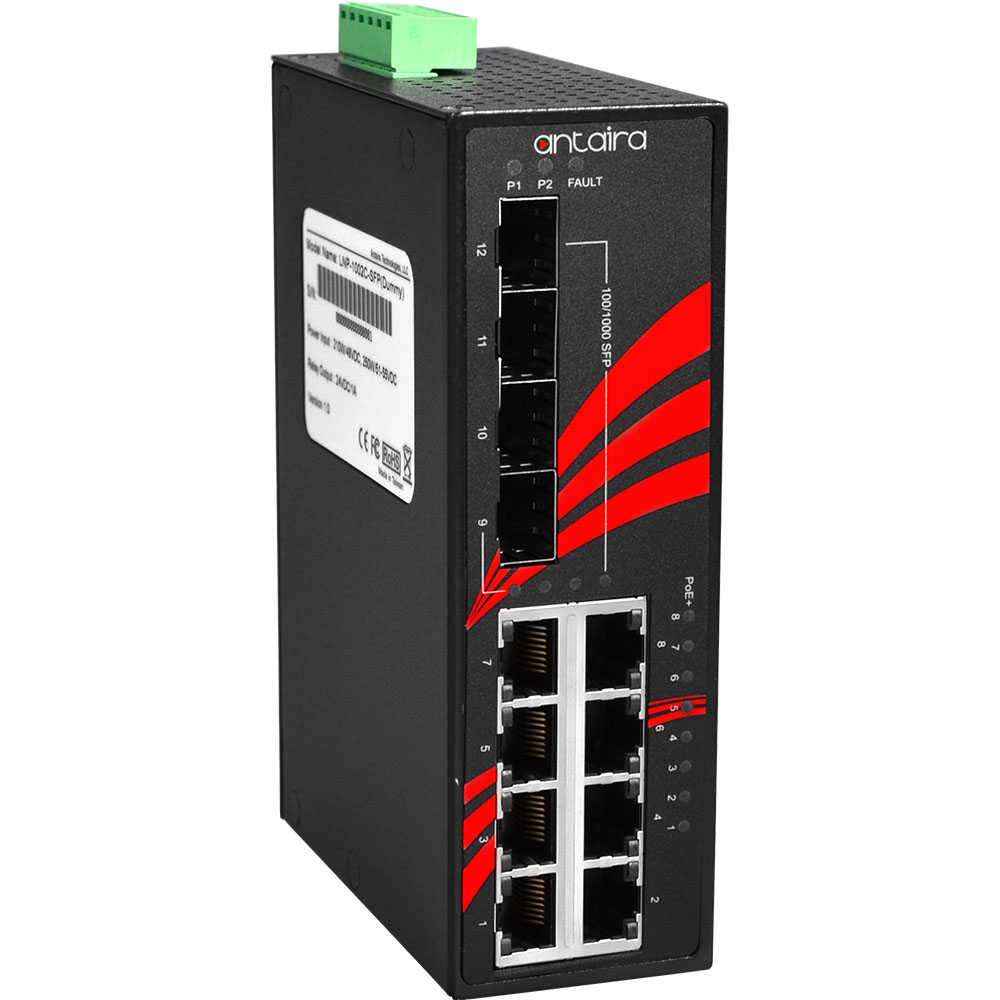

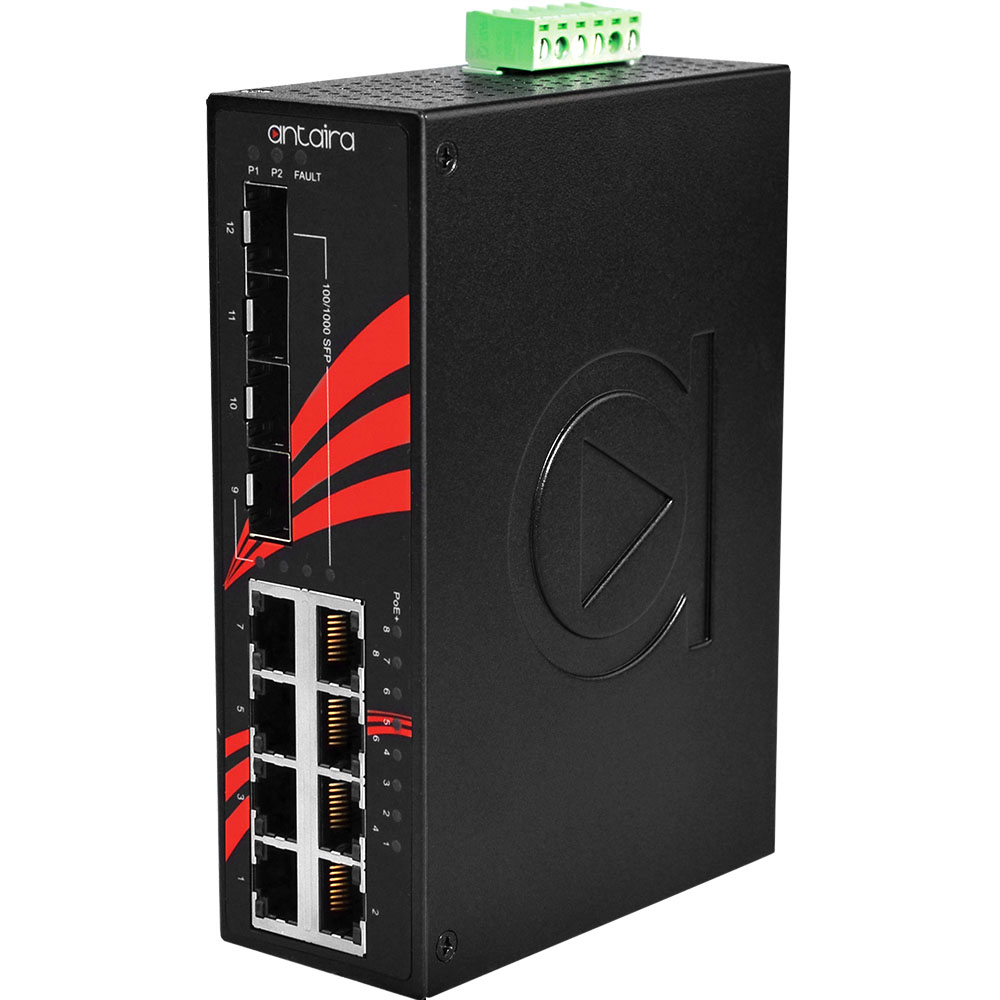

Antaira’s LNP-1204G-SFP industrial PoE+ gigabit unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. Each unit is designed with 8 gigabit Ethernet ports that support IEEE 802.3at (PoE+) with maximum of 30W/Port; and has four dual rate (100/1000)
SFP slots, making it ideal for applications that demand high bandwidth and long distance communication.

This product provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports a power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in
relay warning function alerts maintainers when power failures occur.

LNP-1204G-SFP has an operating temperature range of -10 to 70° C and is perfectly designed to fulfill any special needs for industrial automation, outdoor applications or harsh weather environments.

Supports 8*10/100/1000Tx (30W/Port) + 4*100/1000 SFP ports
Supports Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
24Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
Redundant Power Input Design: 48~55VDC
Built-in 1 Relay Output for Power Failure Detection
IP30 Rugged Metal Case Design

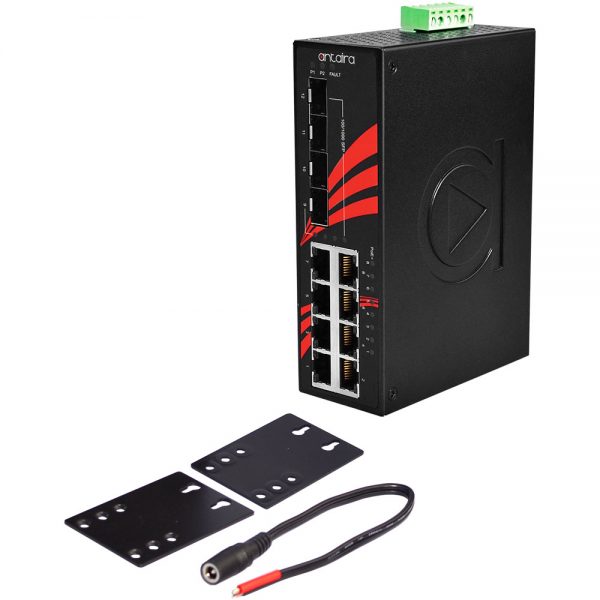

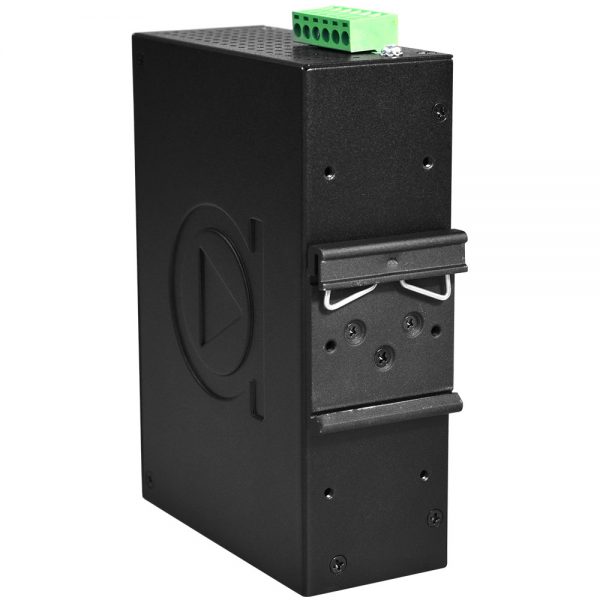

DIN-Rail and Wall Mount Support
Operating Temperature Range: -10° to 70° C
5-Year Warranty

Technology
IEEE Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Fiber IEEE 802.3x Flow Control IEEE 802.3af/at Power over Ethernet
Processing Type	Store and Forward
Protocol	CSMA/CD
Flow Control	IEEE 802.3x flow control, back pressure flow control
Ethernet Interface
Ethernet Port Count	8 ports
10/100/1000 BASE-T(X)	8 ports
PoE Port	8 ports (30W/port)
PoE Pin Assignment	V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A)
Fiber Interface
Fiber Port Count	4 ports
100/1000 BASE-(F)X SFP	4 ports
Wavelength	Refers to SFP module
Performance
MAC Table Size	8K
Jumbo Frame	9.6 Kbytes
Memory Buffer	7,926pps (Default)
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port
Switching Architecture	Back-Plane (Switching Fabric): 24Gbps
Power Requirements
Power Connection	Removable 6-contact terminal block
Input Voltage	48V–55V DC, Redundant Input
Power Redundancy	Yes
Relay Output	24V DC, 1A resistive
System Power Consumption	10 Watts
Max. PoE Power Budget	240 Watts
Overload Current Protection	Present
Reverse Polarity Protection	Present
Environmental Limits
Operating Temperature	-10° to 70° C (14° to 158° F)
Storage Temperature	-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity	5% to 95% non-condensing
Mechanical Characteristics
Housing	Metal, IP30 protection
Mounting	DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)	46 × 142 × 99 mm
Weight	Unit weight : 1.8 lbs Shipping weight : 2.3 lbs
Regulatory Approvals
Certifications	FCC, CE
UL 508	✔
EMI	FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A
EMS	CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field)
Stability Testing	Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6
Green	RoHs Compliant
Warranty	5 years
