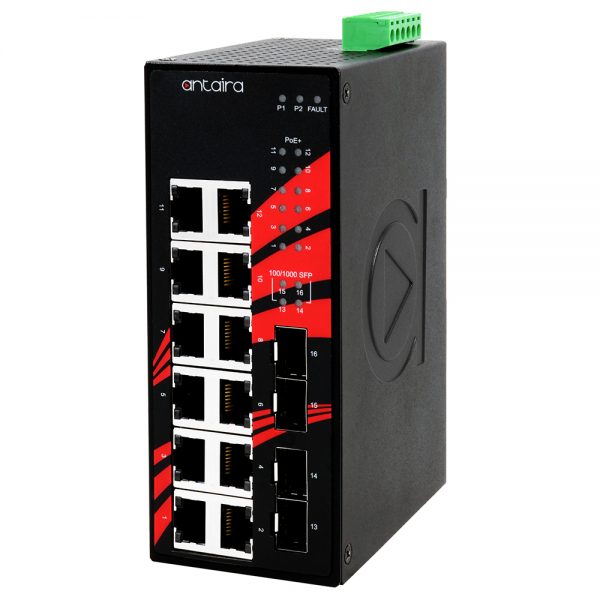

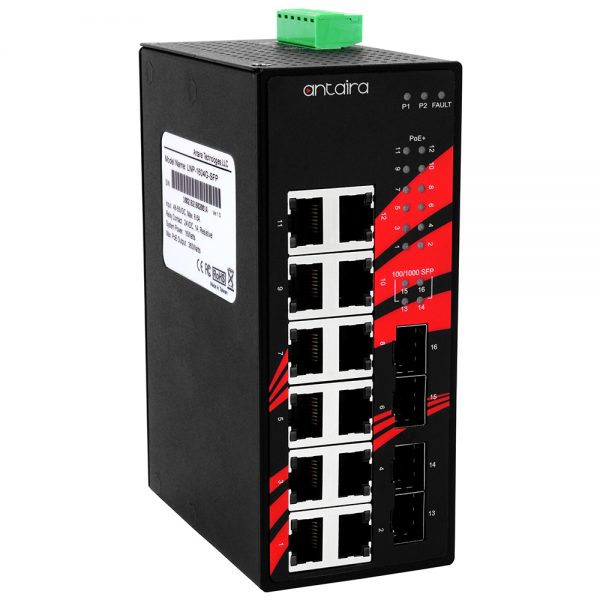

Antaira LNP-1604G-SFP

Antaira Technologies’ LNP-1604G-SFP industrial gigabit PoE+ unmanaged Ethernet switch has twelve 10/100/1000TX RJ45. ports that support IEEE 802.3af/at PoE/PoE+ standards supplying up to 30 watts per port. The device also has four dual rate (100/1000) SFP
slots for fiber connection. It is IP30 rated design with both DIN-Rail and wall mounting options. It is ideal for applications that require high density port connections with full high PoE power outputs, wide network bandwidth, and multiple gigabit fiber connections.
LNP-1604G-SFP works well in industrial applications such as, security video surveillance, GigE machine vision, process control automation and intelligent transportation. This model provides high EFT and ESD protection with a redundant power input support of
48~55VDC. There are two wide operating temperature models to support -10 to 70 ̊ C environment.

• Supports 12*10/100/1000Tx IEEE 802.3at PoE+ Compliant (PSE: 30W/Port), + 4*100/1000 SFP Slots
• Store-and-Forward Switching Architecture
• 8K MAC Address Table
• Jumbo Frame Support: 12.2Kbytes
• Surge Protection: 2,000 VDC Support
• ESD Protection: 6,000 VDC Support
• Redundant Power Input Design: 48~55VDC
• Built-in 1 Relay Output for Power Failure Warning
• IP30 Rugged Metal Case Design
• DIN-Rail and Wall Mount Support
• Operating Temperature Range – STD: -10° to 70°C
• 5-Year Warranty
