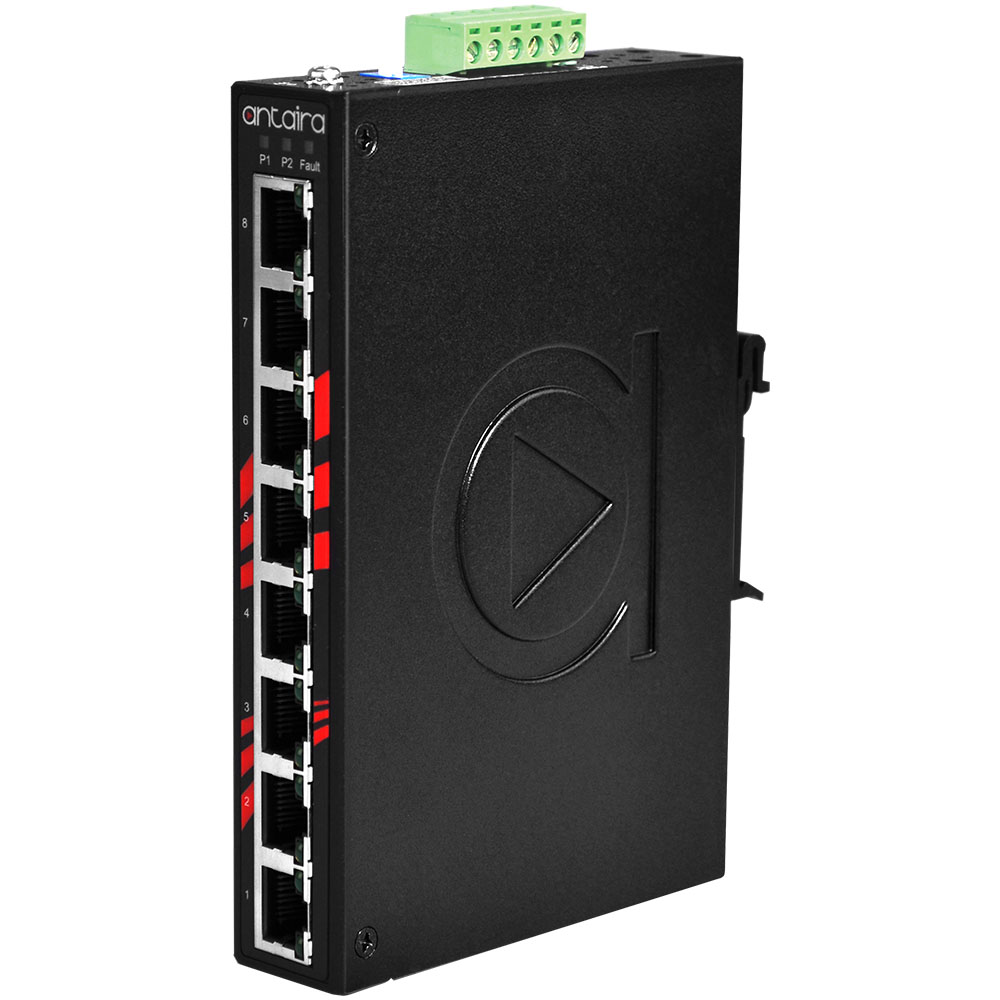

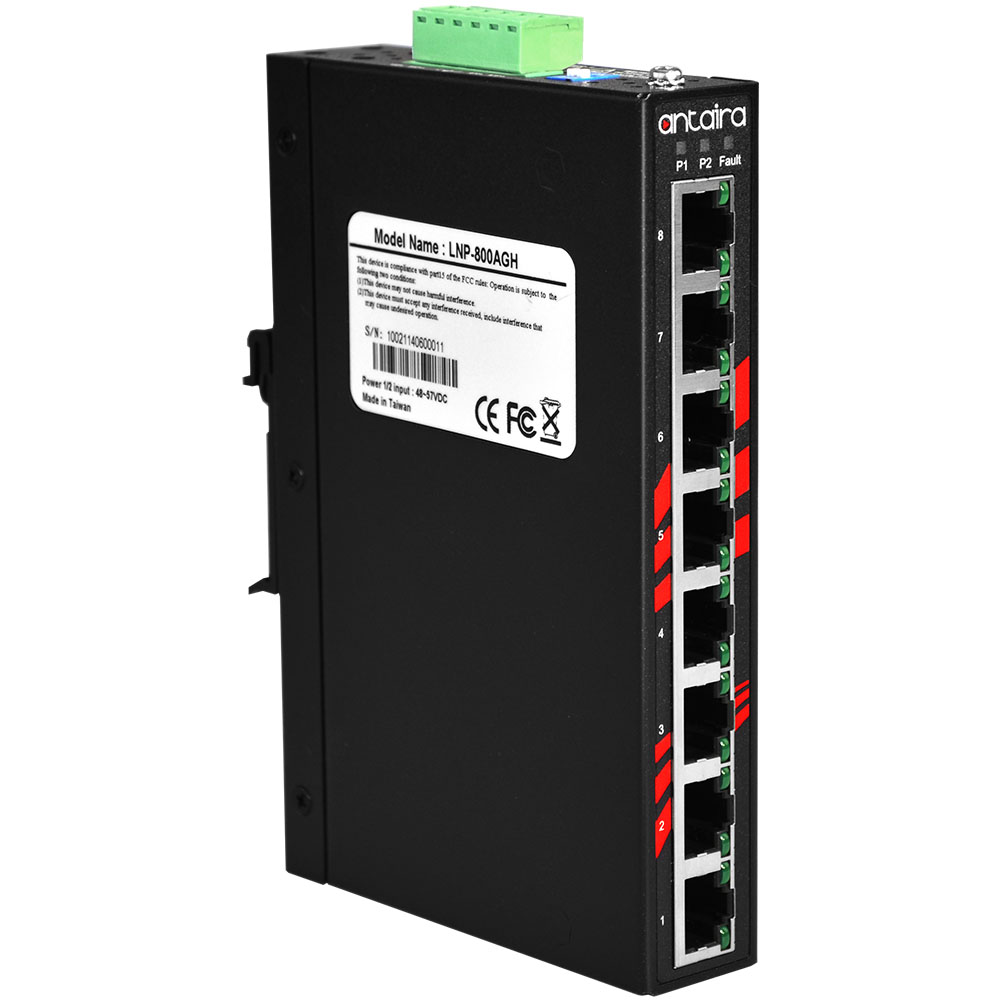

Antaira LNP-800AGH-T
LNP-800AGH-T is an unmanaged PoE Ethernet switch with P.S.E. function. LNP-800AGH-T supports Power over Ethernet, a system that transmits electrical power along with data to remote devices over standard twisted-pair cable in an Ethernet network. LNP-800AGH-T
switch has 8 X 10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. Moreover, the wide operating temperature range from -40 to 70° C can satisfy most operating
environments. LNP-800AGH-T switch is one of the most reliable choices for PoE Ethernet applications.
- Provides 8×10/100/1000Base-T(X) PoE (P.S.E.) Ports
- Supports P.S.E. Based on IEEE 802.3at Standard up to 30 Watts per Port
- 9.6Kbytes Jumbo Frame SupportSupports Auto-Negotiation and Auto-MDI/MDI-X
- Supports Store-and-Forward Transmission
- Supports Flow Control
- Rigid IP-30 Housing Design
- DIN-Rail and Wall Mounting Enabled
- 5-Year Warranty
| Technology | |
| IEEE Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3af/at Power over Ethernet |
| Processing Type | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Ethernet Interface | |
| Ethernet Port Count | 8 ports |
| 10/100/1000 BASE-T(X) | 8 ports |
| PoE Port | 8 ports (30W/port) |
| PoE Pin Assignment | V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A) |
| Performance | |
| MAC Table Size | 2048 MAC Addresses |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port |
| Switching Architecture | Back-Plane (Switching Fabric): 1.6Gbps |
| Power Requirements | |
| Power Connection | Removable 6-contact terminal block |
| Input Voltage | 48V–55V DC, Redundant Input |
| Power Redundancy | Yes |
| Relay Output | 24V DC, 1A resistive |
| System Power Consumption | 8 Watts |
| Max. PoE Power Budget | 240 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Environmental Limits | |
| Operating Temperature | -40° to 70° C (-40° to 158° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Ambient Relative Humidity | 5% to 95% non-condensing |
| Mechanical Characteristics | |
| Housing | Metal, IP30 protection |
| Mounting | DIN-Rail mount, Wall mount (Optional) |
| Dimensions (W × H × D) | 26.1 × 144.3 × 94.9 mm |
| Weight | Unit weight : 0.86 lb Shipping weight : 1.5 lbs |
| Regulatory Approvals | |
| Certifications | FCC, CE |
| UL 508 | ✔ |
| UL 60950-1 | ✔ |
| ISA 12.12.01 (UL C1D2) | ✔ |
| EMI | FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A |
| EMS | CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) |
| Stability Testing | Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
| Green | RoHs Compliant |
| Warranty | 5 years |
