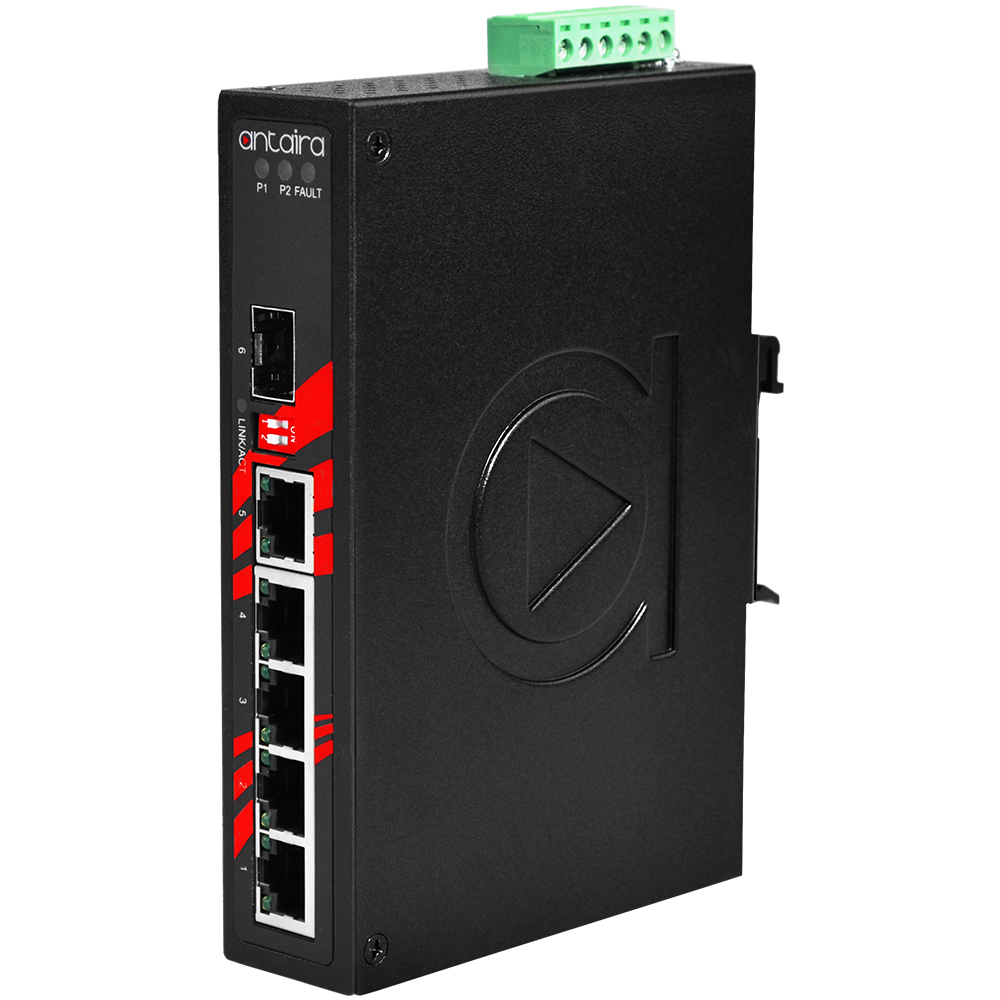

Antaira LNX-0601G-SFP-T

6-Port Industrial Unmanaged Ethernet Switch, w/5*10/100/1000Tx + 1*100/1000 SFP Slot. EOT: -40° ~ 75°C

Mã: LNX-0601G-SFP-T Danh mục: Switch công nghiệp Antaira Từ khóa: LNX-0601G-SFP-T

Mô tả
Sản phẩm liên quan

Antaira’s LNX-0601G-SFP-T industrial gigabit unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. The unit is designed with five gigabit Ethernet ports and one dual rate (100/1000) SFP slot, making it ideal for applications that demand high bandwidth
and long distance communication. LNX-0601G-SFP-T provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity
protection.

In addition, the built-in relay warning function alerts maintainers when power failures or port breaks occur. Also, the built-in advanced broadcast storm protection feature will block any data packet that exceeds a defined limit when it arrives to a port,
until the rate decreases to a lower threshold.

LNX-0601G-SFP-T has an extended operating temperature range of -40 to 75° C. It is a perfectly designed product to fulfill any special needs of industrial automation, outdoor applications and harsh weather enviornments.

5-Ports 10/100/1000 Tx Fast Ethernet &1-Port SFP
Supports Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
8K MAC Address Table
10Kbytes Jumbo Frame Support
Surge (EFT) Protection Support
Ethernet ESD Protection Support
Redundant Power Input Design: 12~48 VDC
Built-in 1 Relay Output for Port Break Alarm
IP30 Rugged Aluminum Case Design
DIN-Rail and Wall Mount Support
Operating Temperature Range – EOT: -40° to 75 °C
5-Year Warranty

Technology
IEEE Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Fiber IEEE 802.3x Flow Control IEEE 802.3az EEE Power Management
Processing Type	Store and Forward
Protocol	CSMA/CD
Flow Control	IEEE 802.3x flow control, back pressure flow control
Ethernet Interface
Ethernet Port Count	5 ports
10/100/1000 BASE-T(X)	5 ports
Fiber Interface
Fiber Port Count	1 port
100/1000 BASE-(F)X SFP	1 port
Wavelength	Refers to SFP module
Performance
MAC Table Size	8K
Jumbo Frame	10 Kbytes
Memory Buffer	7,926 pps
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port
Switching Architecture	Packet Throughput Ability (Full-Duplex); 14.88Mbps @64bytes
Power Requirements
Power Connection	Removable 6-contact terminal block
Input Voltage	12V–48V DC, Redundant Input
Power Redundancy	Yes
System Power Consumption	6.9 Watts
Overload Current Protection	Present
Reverse Polarity Protection	Present
Environmental Limits
Operating Temperature	-40° to 75° C (-40° to 167° F)
Storage Temperature	-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity	5% to 95% non-condensing
Mechanical Characteristics
Housing	Metal, IP30 protection
Mounting	DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)	30 × 142 × 99 mm
Weight	Unit weight : 1.4 lbs Shipping weight : 1.9 lbs
Regulatory Approvals
UL 508	✔
EMI	FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A
EMS	CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field)
Stability Testing	Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6
Green	RoHS Compliant
Warranty	5 years
