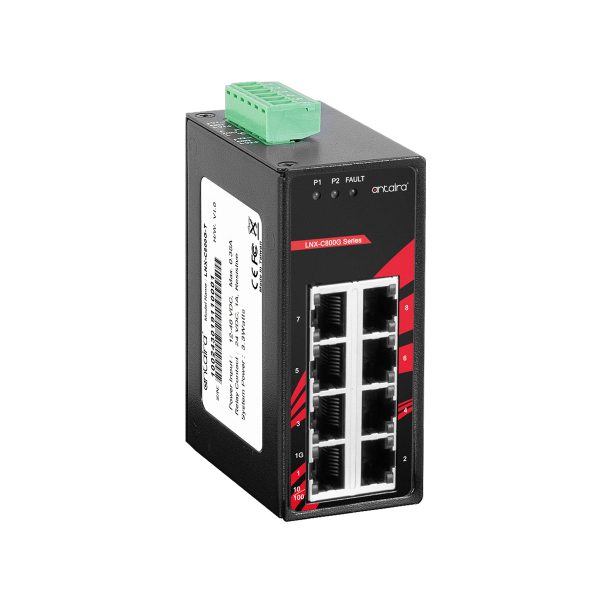

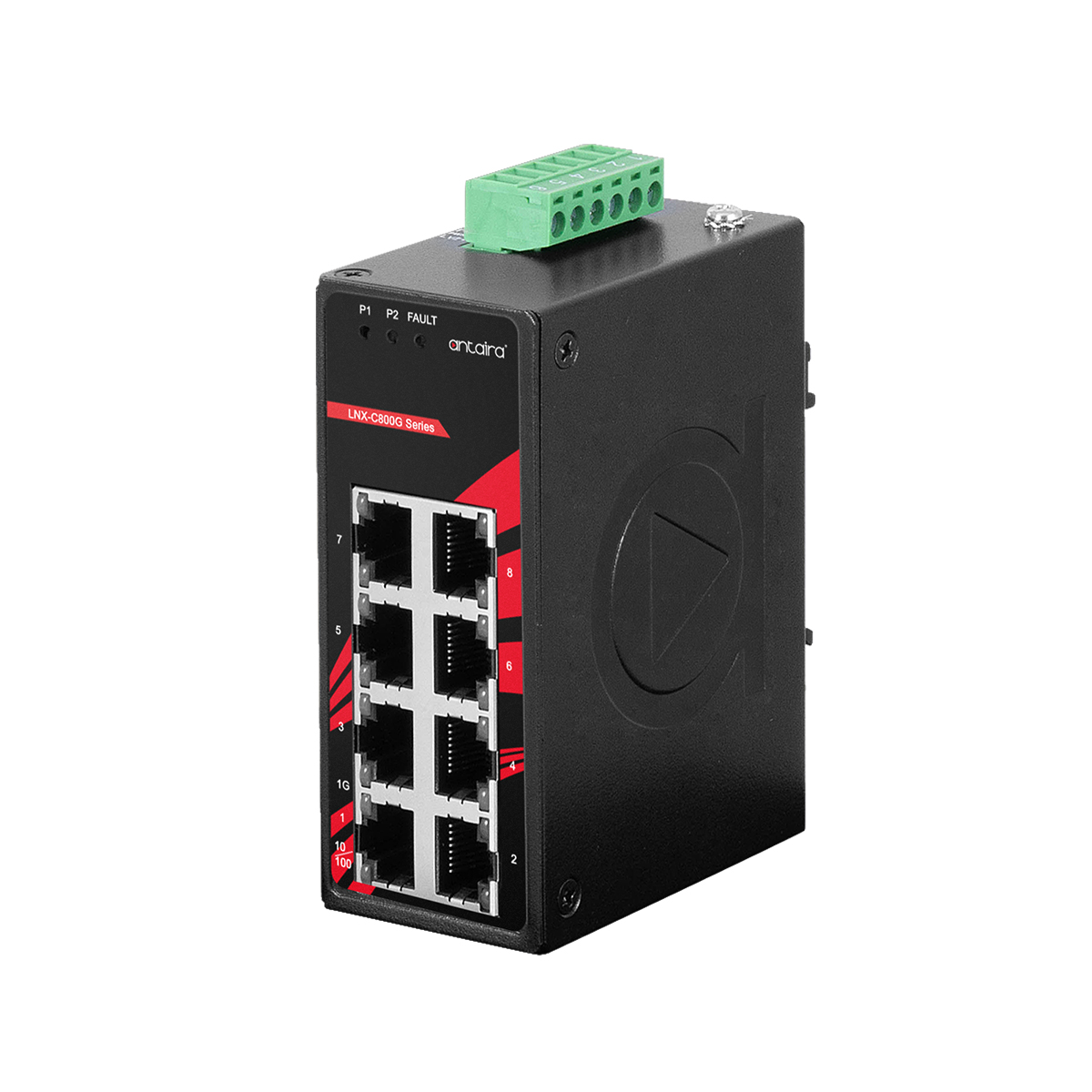

Antaira LNX-C800G-T
Antaira Technologies’ LNX-C800G-T is a compact 8-port industrial Ethernet switch. The small form factor of this metal IP30 rated industrial switch is 30% smaller allowing for a more versatile implementation. This model is equipped with 8*10/100/1000Tx RJ45
Ethernet ports; with a backplane speed of 16gbps. The industrial-grade design and compact size of LNX-C800G-T makes this the ideal unit for integration into projects or other applications that need a small footprint.
LNX-C800G-T supports reverse polarity and overload current protection. This model supports DIN-rail as well as wall-mountable orientations and provides extended operating temperature range model in -40° to 75° C. This is an industrial-grade unit applicable
for networking applications in factory automation, ITS, power/utility, water wastewater treatment plants, or any application that needs a compact solution.
- Compact Industrial Grade Design
- Supports 8-Port 10/100/1000Tx RJ45 Fast Ethernet
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- Redundant Power Input Design: 12~48VDC
- Power Polarity Reverse Protect
- Overload Current Protection
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operation Temperature Range: -40°C to 75°C
- 5-Year Warranty
| Technology | |
| IEEE Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000BaseT |
| Processing Type | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Ethernet Interface | |
| Ethernet Port Count | 8 ports |
| 10/100/1000 BASE-T(X) | 8 ports |
| Performance | |
| MAC Table Size | 4K |
| Jumbo Frame | 9,216 bytes |
| Memory Buffer | 512Kbits |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port |
| Switching Architecture | Back-Plane (Switching Fabric): 16Gbps |
| Power Requirements | |

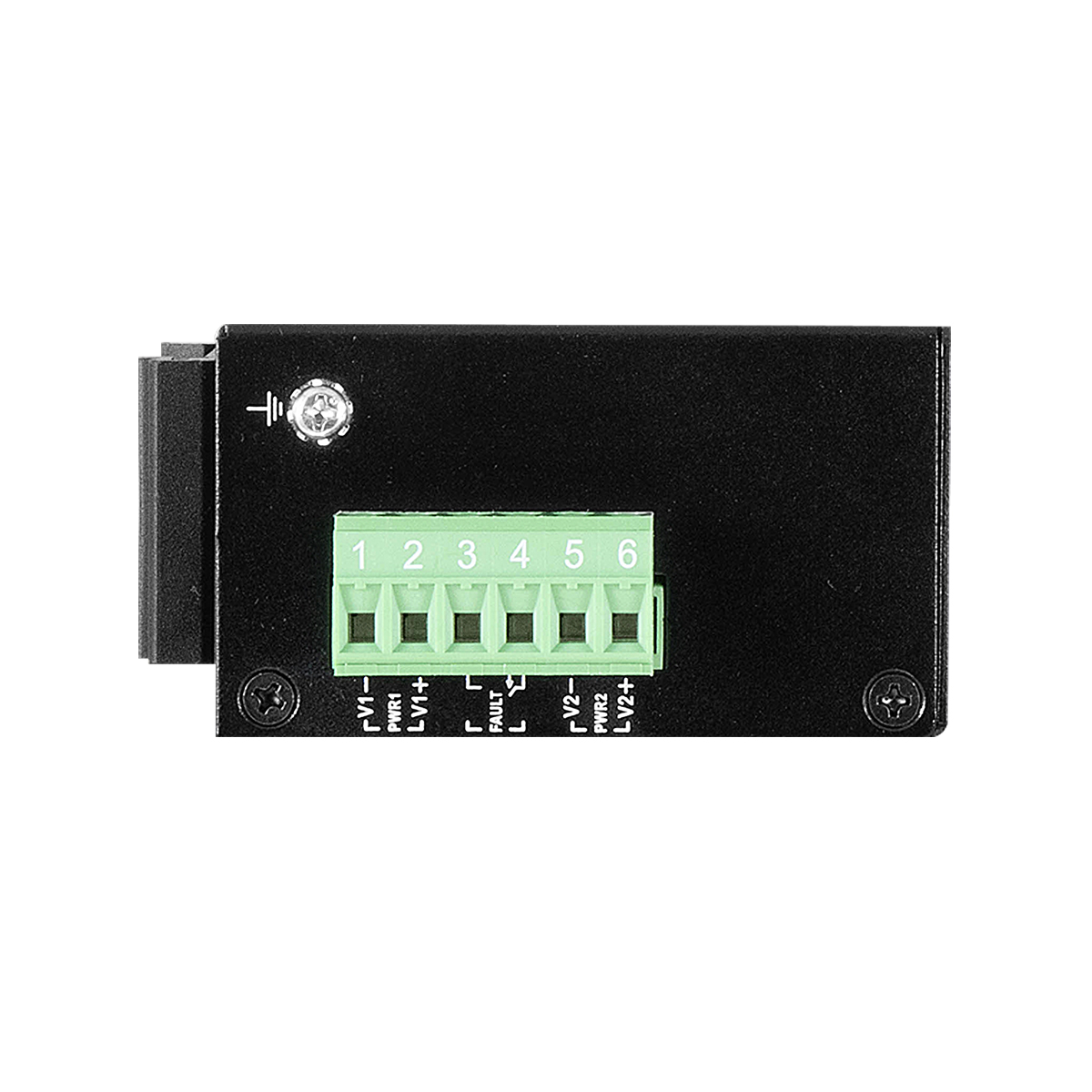

| Power Connection | Removable 6-contact terminal block |
| Input Voltage | 12V–48V DC, Redundant Input |
| Power Redundancy | Yes |
| System Power Consumption | 3.3 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Environmental Limits | |
| Operating Temperature | -40° to 75° C (-40° to 167° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Ambient Relative Humidity | 5% to 95% non-condensing |
| Mechanical Characteristics | |
| Housing | Metal, IP30 protection |

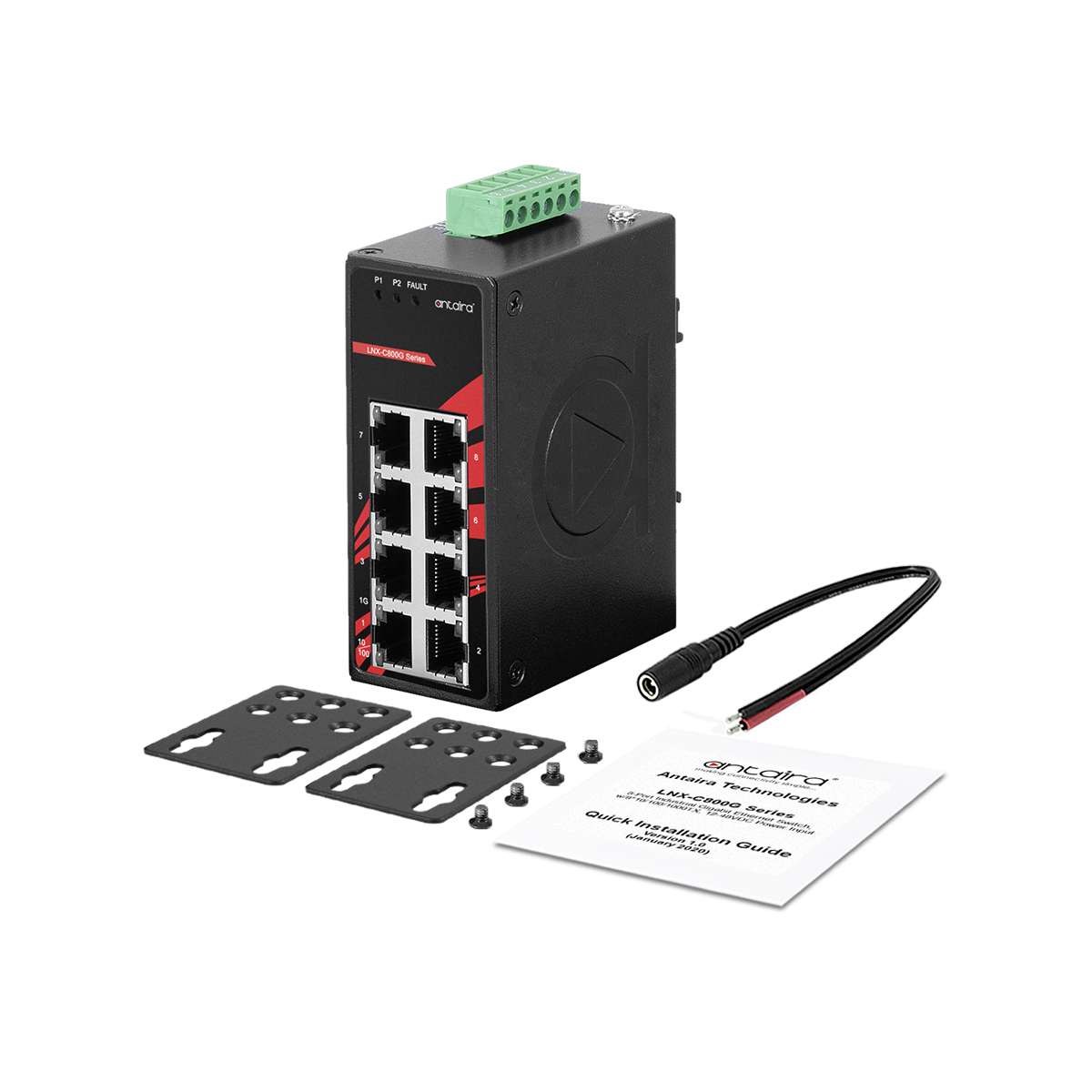

| Mounting | DIN-Rail mount, Wall mount (Optional) |
| Dimensions (W × H × D) | 40 × 95 × 70 mm |
| Weight | Unit weight : 0.72 lbs Shipping weight : 1.03 lbs |
| Regulatory Approvals | |
| Certifications | FCC, CE |
| EMI | FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A |
| EMS | CE EN 55035 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) |
| Stability Testing | Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
| Green | RoHs Compliant |
| Warranty | 5 years |
