Antaira LNX-C800G

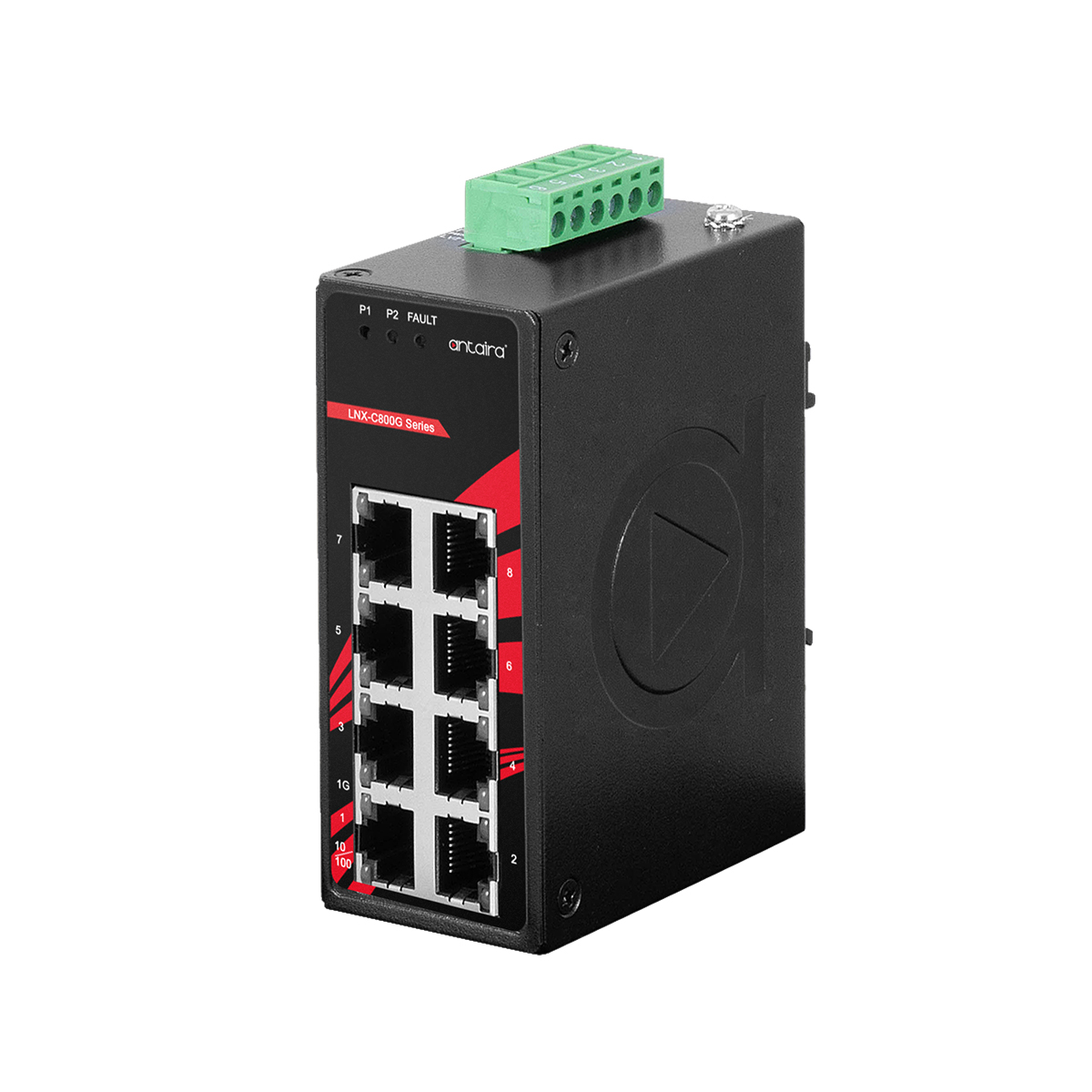

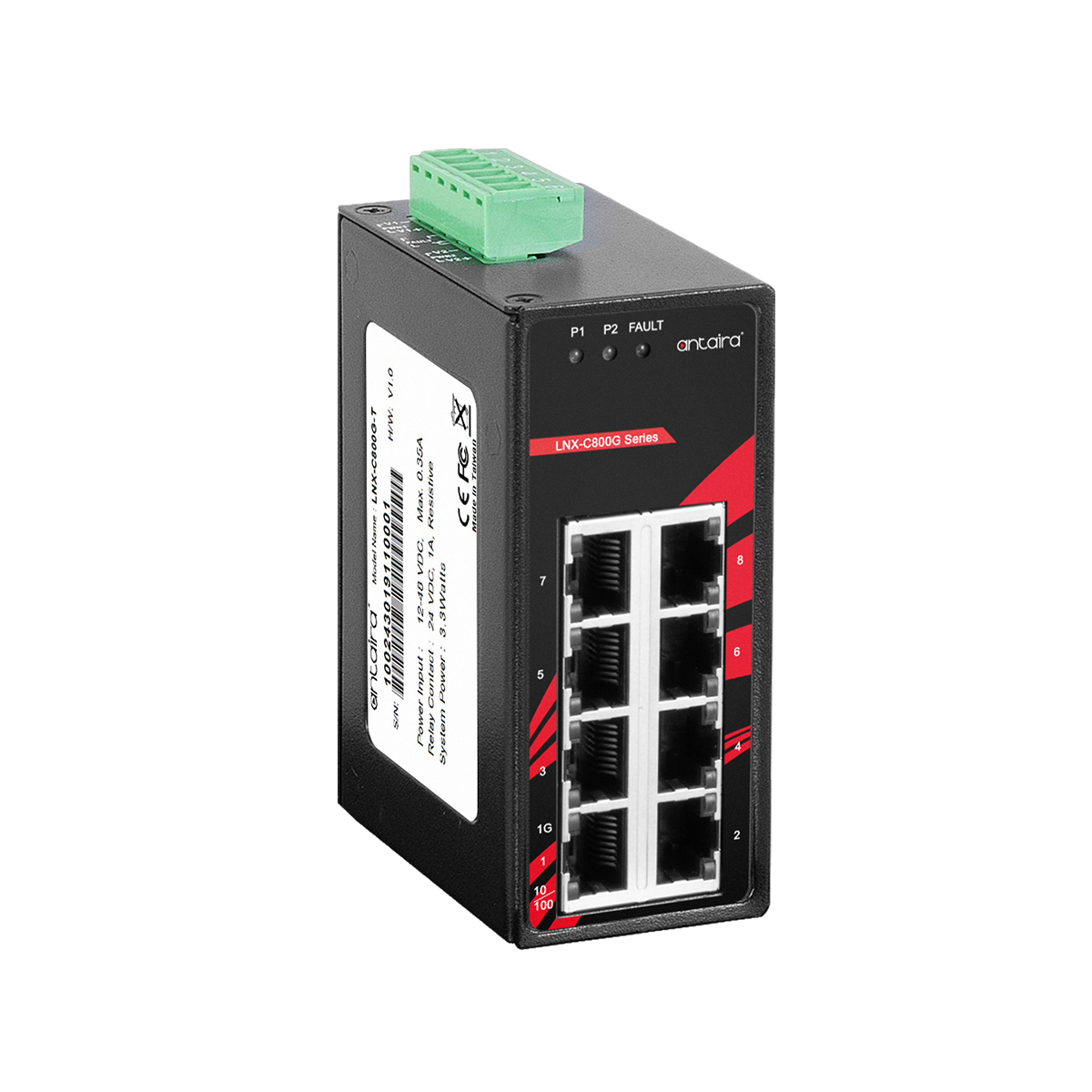

Antaira Technologies’ LNX-C800G is a compact 8-port industrial Ethernet switch. The small form factor of this metal IP30 rated industrial switch is 30% smaller allowing for a more versatile implementation. LNX-C800G is equipped with 8*10/100/1000Tx RJ45
Ethernet ports; with a backplane speed of 16gbps. The industrial-grade design and compact size of LNX-C800G makes this the ideal unit for integration into projects or other applications that need a small footprint.

LNX-C800G supports reverse polarity and overload current protection. This model supports DIN-rail as well as wall-mountable orientations and provides standard operating temperature range model in -10° to 65° C. This is an industrial-grade unit applicable
for networking applications in factory automation, ITS, power/utility, water wastewater treatment plants, or any application that needs a compact solution.

• Compact Industrial Grade Design
• Supports 8-Port 10/100/1000Tx RJ45 Fast Ethernet
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture

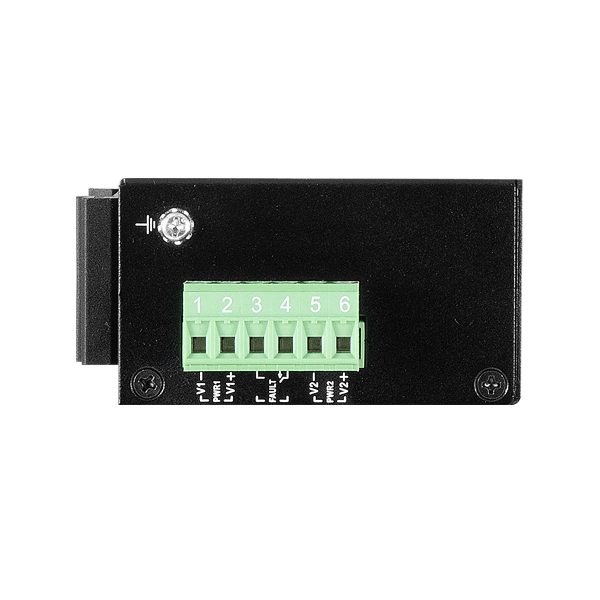

• Redundant Power Input Design: 12~48VDC
• Power Polarity Reverse Protect
• Overload Current Protection
• IP30 Rugged Metal Case Design

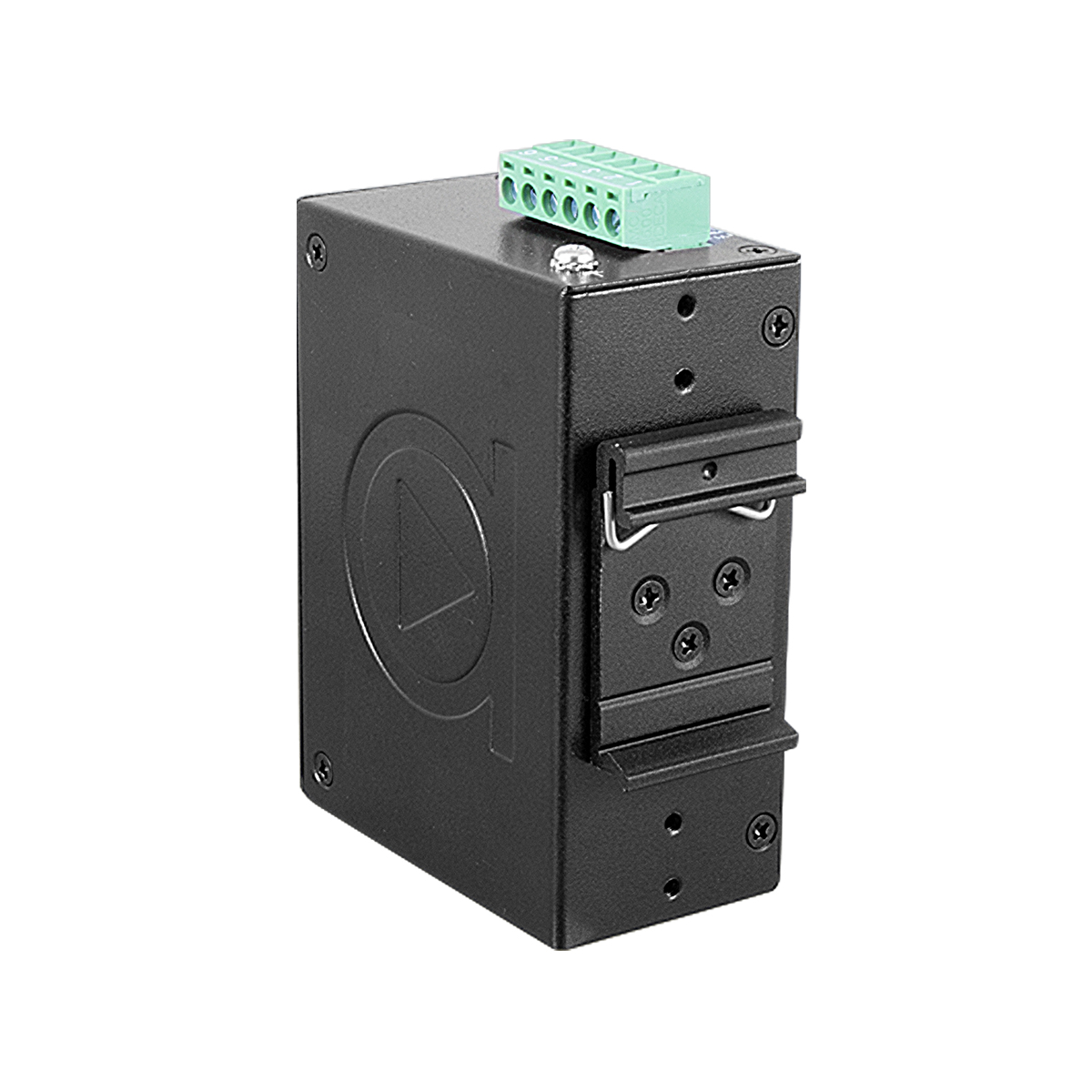

• DIN-Rail and Wall Mount Support
• Operation Temperature Range: -10°C to 65°C
• 5-Year Warranty
