DiskStation DS216play

OverView

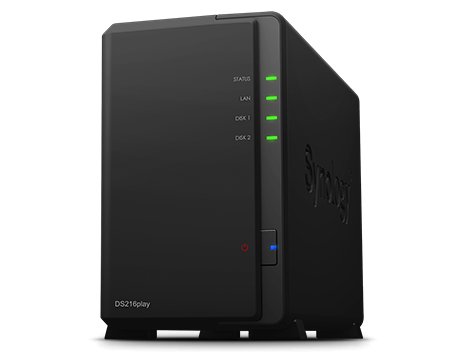

DS216play is a 2-bay NAS featuring 4K Ultra HD video transcoding and powerful processing capabilities, letting you enjoy high definition media contents, as well as keeping all the other aspects of a fully-fledged NAS uncompromised.

top-17

Powered by a hardware-accelerated transcoding engine, DS216play supports H.264/H.265 1080p and H.265 4K codecs, allows you to transcode 4K videos to 1080p, making them suitable for all screens and bandwidths whether they are local media players or remote mobile devices. In addition, you can also stream original 4K resolution videos to your multimedia player or 4K TV within a local network environment. 4K transcoding is available only through Synology’s Video Station, DS video, Media Server.

Specifications

Hardware Specifications
CPU
CPU Model	STM STiH412
CPU Architecture	32-bit
CPU Frequency	Dual Core 1.5 GHz
Floating Point
Hardware Encryption Engine
Hardware Transcoding Engine	H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1, Maximum resolution: 4K (3840 x 2160), Maximum FPS: 30
Memory
System Memory	1 GB DDR3
Storage
Drive Bay(s)	2
Compatible Drive Type	3.5″ SATA III / SATA II HDD 2.5″ SATA III / SATA II HDD (with optional 2.5″ Disk Holder) 2.5″ SATA III / SATA II SSD (with optional 2.5″ Disk Holder)
Maximum Internal Raw Capacity	16 TB (8 TB HDD x 2) (Capacity may vary by RAID types)
Maximum Single Volume Size	16 TB
External Ports
USB 2.0 Port	1
USB 3.0 Port	1
File System
Internal Drives	EXT4
External Drives	EXT4 EXT3 FAT NTFS HFS+ (Read Only, with max. volume size 2TB)
Appearance
Size (Height x Width x Depth)	165 mm x 100 mm x 225.5 mm
Weight	0.88 kg
Others
RJ-45 1GbE LAN Port	1
Wake on LAN/WAN
System Fan	92 mm x 92 mm x 1 pcs
Fan Speed Mode	Cool Mode Quiet Mode
Wireless Support (dongle)
Power Recovery
Noise Level*	18.5 dB(A)
Scheduled Power On/Off
Power Supply Unit / Adapter	60W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption*	15.08 W (Access) 6.83 W (HDD Hibernation)
British Thermal Unit	51.49 BTU/hr (Access) 23.32 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature	5°C to 40°C (40°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certification	FCC Class B CE Class B BSMI Class B
Warranty	2 Years
Notes	Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Support for Wake on WAN needs switch and routers which recognize Magic Packet. Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications
Storage Management
Maximum Internal Volume Number	256
Maximum iSCSI Target Number	10
Maximum iSCSI LUN	10
Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1
RAID Migration	Basic to RAID 1
Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1
Volume Expansion by Adding a HDD	Synology Hybrid RAID
File Sharing Capacity
Maximum User Accounts	2048
Maximum Groups	256
Maximum Shared Folder	256
Maximum Shared Folder Sync Tasks	4
Maximum Concurrent CIFS/AFP/FTP Connections	256
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
Log Center
Syslog Events per Second	400
Add-on Packages
Cloud Station Server
Maximum Concurrent File Transfers	256
Download Station
Maximum Concurrent Download Tasks	50
HiDrive Backup
Media Server
DLNA Certification
PDF Viewer
SpreadSheet
Maximum Simultaneous Editing Users	50
Surveillance Station
Maximum IP cam (Licenses required)	15 (including 2 Free License)
Total FPS (H.264)*	450 FPS @ 720p (1280×720) 180 FPS @ 1080p (1920×1080) 110 FPS @ 3M (2048×1536) 80 FPS @ 5M (2591×1944)
Total FPS (MJPEG)*	210 FPS @ 720p (1280×720) 70 FPS @ 1080p (1920×1080) 50 FPS @ 3M (2048×1536) 30 FPS @ 5M (2591×1944)
Notes	Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Video Station
Video Transcoding	4K Group 2
Maximum Transcoding Channel Number	1 channel, 30 FPS @ 4K (3840 x 2160), H.265 (HEVC) or 1 channel, 30 FPS @ 1080p (1920×1080), H.264 (AVC)/H.265 (HEVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1
VPN Server
Maximum Connections	15
Environment & Packaging
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Welcome Note X 1 Accessory Pack X 1 AC Power Adapter X 1 RJ-45 LAN Cable X 1
Optional Accessories	Camera License Pack Disk Holder: Type C VS360HD
