NAS Synology DS416j

Mã sản phẩm: DS416j

Mô tả: Powerful 4-bay NAS at an affordable price. Perfect for home and personal users to share data and enjoy multimedia.

Xuất xứ: Taiwan

Bảo hành: 12 tháng

Mã: DS416j Danh mục: NAS Synology Từ khóa: DS416j

Mô tả
Sản phẩm liên quan

With high performance and rich add-on applications, DS416j is budget-friendly and delivers an optimal value for home and personal users to build up an ideal home storage and entertainment center.

Equipped with a dual-core CPU, DS416j delivers average reading speed over 112.82 MB/sec and writing over 101.2 MB/sec under RAID 5 configuration in a Windows^® environment, a 37.33% increase on writing speed compared to its predecessor.¹ In addition, with the encryption engine, DS416j runs at an increased performance level when compared to a pure software encryption implementation.

Hardware Specifications
CPU
CPU Model	Marvell Armada 388 88F6828
CPU Architecture	32-bit
CPU Frequency	Dual Core 1.3 GHz
Floating Point
Hardware Encryption Engine
Memory
System Memory	512 MB DDR3
Storage
Drive Bay(s)	4
Compatible Drive Type	3.5″ SATA III / SATA II HDD 2.5″ SATA III / SATA II HDD 2.5″ SATA III / SATA II SSD
Maximum Internal Raw Capacity	32 TB (8 TB HDD x 4) (Capacity may vary by RAID types)
Maximum Single Volume Size	16 TB
External Ports
USB 2.0 Port	1
USB 3.0 Port	1
File System
Internal Drives	EXT4
External Drives	EXT4 EXT3 FAT NTFS HFS+ (Read Only, with max. volume size 2TB)
Appearance
Size (Height x Width x Depth)	184 mm x 168 mm x 230 mm
Weight	2.21 kg
Others
RJ-45 1GbE LAN Port	1
Wake on LAN/WAN
System Fan	80 mm x 80 mm x 2 pcs
Fan Speed Mode	Cool Mode Quiet Mode Low-power Mode
Wireless Support (dongle)
Brightness adjustable front LED indicators
Power Recovery
Noise Level*	19.1 dB(A)
Scheduled Power On/Off
Power Supply Unit / Adapter	90W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption*	21.6 W (Access) 12.75 W (HDD Hibernation)
British Thermal Unit	73.75 BTU/hr (Access) 43.53 BTU/hr (System Hibernation)
Environment Temperature
Operating Temperature	5°C to 40°C (40°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certification	FCC Class B CE Class B BSMI Class B
Warranty	2 Years
Notes	Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Support for Wake on WAN needs switch and routers which recognize Magic Packet. Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications
Storage Management
Maximum Internal Volume Number	256
Maximum iSCSI Target Number	10
Maximum iSCSI LUN	10
Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1 RAID 5 RAID 6
Volume Expansion by Adding a HDD	Synology Hybrid RAID RAID 5 JBOD
Global Hot Spare Supported RAID Type	Synology Hybrid RAID RAID 1 RAID 5
File Sharing Capacity
Maximum User Accounts	1024
Maximum Groups	256
Maximum Shared Folder	256
Maximum Shared Folder Sync Tasks	2
Maximum Concurrent CIFS/AFP/FTP Connections	128
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
Log Center
Syslog Events per Second	100
Add-on Packages
Cloud Station Server
Maximum Concurrent File Transfers	128
Download Station
Maximum Concurrent Download Tasks	30
HiDrive Backup
Media Server
DLNA Certification
PDF Viewer
SpreadSheet
Maximum Simultaneous Editing Users	35
Surveillance Station
Maximum IP cam (Licenses required)	16 (including 2 Free License)
Total FPS (H.264)*	480 FPS @ 720p (1280×720) 240 FPS @ 1080p (1920×1080) 150 FPS @ 3M (2048×1536) 60 FPS @ 5M (2591×1944)
Total FPS (MJPEG)*	240 FPS @ 720p (1280×720) 100 FPS @ 1080p (1920×1080) 60 FPS @ 3M (2048×1536) 30 FPS @ 5M (2591×1944)
Notes	Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Video Station
Video Transcoding	Group 2
VPN Server
Maximum Connections	5
Environment & Packaging
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Welcome Note X 1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 1
Optional Accessories	Camera License Pack VS360HD

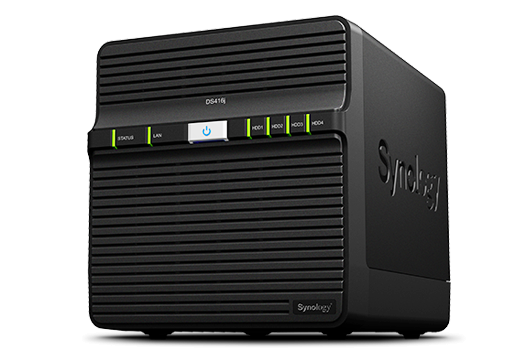

top-19
