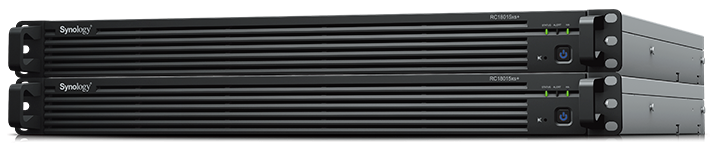

NAS Synology RC18015xs+
Mã sản phẩm: RC18015xs+
Mô tả: Uncompromising reliability, unyielding data protection
Xuất xứ: Taiwan
Bảo hành: 12 tháng
Featuring a high-availability design, next-generation snapshot technology, and massive scalability up to 180 drives, RC18015xs+ and RXD1215sas deliver the secure, reliable, and superior performance storage solution for enterprises seeking business continuity and point-in-time data recovery.
High-availability cluster design
RC18015xs+ and RXD1215sas are specifically designed to work together as a high-availability cluster — requiring two RC18015xs+ and at least one RXD1215sas expansion unit. By combining the two computing servers and multiple storage units into a single high-availability cluster, RC18015xs+ and RXD1215sas deliver unyielding reliability and data availability. With the active/passive structure, services are automatically switched over to one server if the other unexpectedly goes offline, helping your business avoid costly downtime.1 For technical details and best practices, please see the High Availability for RC18015xs+ White Paper.
| Hardware Specifications | |
| CPU | |
| CPU Model | Intel Xeon E3-1230 v2 |
| CPU Architecture | 64-bit |
| CPU Frequency | Quad Core 3.3 GHz |
| Floating Point | |
| Hardware Encryption Engine (AES-NI) | |
| Memory | |
| System Memory | 8 GB DDR3 ECC |
| Memory Module Pre-installed | 4 GB x 2 |
| Total Memory Slots | 4 |
| Memory Expandable up to | 32 GB (8 GB X 4) |
| Storage | |
| Maximum Drive Bays with Expansion Unit | 180 |
| Compatible Drive Type |
|
| Maximum Raw Capacity with Expansion Units | 1440 TB (8 TB HDD x 180) (Capacity may vary by RAID types) |
| Maximum Single Volume Size |
|
| External Ports | |
| USB 3.0 Port | 2 |
| Expansion Port | 1 |
| File System | |
| Internal Drives |
|
| External Drives |
|
| Appearance | |
| Size (Height x Width x Depth) | 44 mm x 430 mm x 480 mm |
| Weight | 7.3 kg |
| Others | |
| RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) + 1 for Heartbeat |
| PCIe x8 Slot for 10GbE / 1GbE Network Card | 1 (at x8 mode) |
| Wake on LAN/WAN | |
| System Fan | 40 mm x 40 mm x 6 pcs |
| Fan Speed Mode |
|
| Easy Replacement System Fan | |
| Power Recovery | |
| Noise Level* | 48 dB(A) |
| Scheduled Power On/Off | |
| Power Supply Unit / Adapter | 2 X 150W |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption* | 60.16 W (Access) |
| British Thermal Unit | 205.27 BTU/hr (Access) |
| Redundant Power Supply (for xs+ and RP model) | |
| Environment Temperature | |
| Operating Temperature | 5°C to 35°C (40°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Certification |
|
| Warranty | 5 Years |
| Notes | When upgrading RAM to more than 24GB, the original 4GB RAM modules must be removed. |
| DSM Specifications | |
| Storage Management | |
| Maximum Internal Volume Number | 1024 |
| Maximum iSCSI Target Number | 128 |
| Maximum iSCSI LUN | 512 |
| iSCSI LUN Clone/Snapshot, Windows ODX | |
| RAID Group | |
| Supported RAID Type |
|
| RAID Migration |
|
| Volume Expansion with Larger HDDs |
|
| Volume Expansion by Adding a HDD |
|
| Global Hot Spare Supported RAID Type |
|
| SSD Support | |
| SSD Read/Write Cache | |
| File Sharing Capacity | |
| Maximum User Accounts | 16000 |
| Maximum Groups | 512 |
| Maximum Shared Folder | 512 |
| Maximum Shared Folder Sync Tasks | 32 |
| Maximum Concurrent CIFS/AFP/FTP Connections | 2048 |
| Windows Access Control List (ACL) Integration | |
| NFS Kerberos Authentication | |
| High Availability Manager | |
| Log Center | |
| Syslog Events per Second | 3000 |
| Virtualization | |
| VMware vSphere 5 with VAAI | |
| Windows Server 2012 | |
| Windows Server 2012 R2 | |
| Citrix Ready | |
| Add-on Packages | |
| Antivirus by McAfee (Trial) | |
| Central Management System | |
| Cloud Station Server | |
| Maximum Concurrent File Transfers | 2000 |
| Maximum Concurrent File Transfers (with RAM expansion) | 10000 |
| Docker DSM | |
| Maximum Docker DSM Number (Licenses required) | 45 (including 1 Free License) |
| Document Viewer | |
| Download Station | |
| Maximum Concurrent Download Tasks | 80 |
| HiDrive Backup | |
| MailPlus / MailPlus Server | |
| Free Email Accounts | 5 |
| Recommended MailPlus Client Number | Up to 500 |
| Maximum Server Performance | 932,000 emails per day, approx. 30.1 GB |
| Notes |
|
| Media Server | |
| DLNA Compliance | |
| PetaSpace | |
| Snapshot Replication | |
| Maximum Snapshots per Shared Folder | 1024 |
| Maximum Snapshots of all Shared Folder | 65536 |
| SpreadSheet | |
| Maximum Simultaneous Editing Users | 220 |
| Surveillance Station | |
| Maximum IP cam (Licenses required) | 90 (including 2 Free License) |
| Total FPS (H.264)* | 2700 FPS @ 720p (1280×720) 1080 FPS @ 1080p (1920×1080) 650 FPS @ 3M (2048×1536) 500 FPS @ 5M (2591×1944) |
| Total FPS (MJPEG)* | 900 FPS @ 720p (1280×720) 360 FPS @ 1080p (1920×1080) 250 FPS @ 3M (2048×1536) 150 FPS @ 5M (2591×1944) |
| Notes | Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera. |
| Video Station | |
| Video Transcoding | Group 1 – Type 2 |
| Maximum Transcoding Channel Number | 1 channel, 30 FPS @ 720p (1280×720), H.264 (AVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1 |
| Virtual DSM Manager | |
| VPN Server | |
| Maximum Connections | 30 |
| Environment & Packaging | |
| Environment | RoHS Compliant |
| Packaging Content |
|
| Optional Accessories |
|
