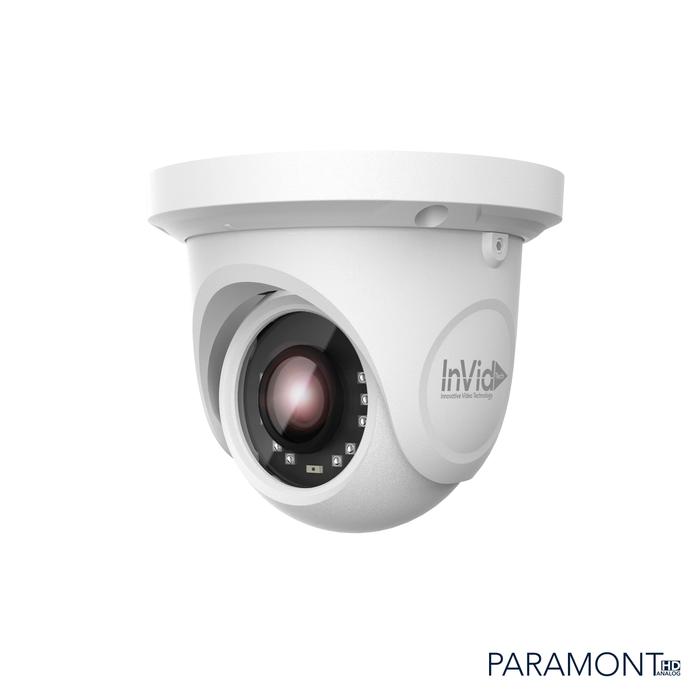

Camera Canada Invidtech PAR-C5TIR: 5 Megapixel Turret

5 Megapixel TVI/AHD/CVBS, Outdoor Turret, Smart 65’ IR Range, D-WDR, 12VDC

5 Megapixel TVI/AHD/CVBS, Outdoor Turret, Smart 65’ IR Range, D-WDR, 12VDC

Features

Camera	PAR-C5TIR
Image Sensor	1 / 2.7 “CMOS
Resolution	5MP or 4MP
Image Size	5MP: 2592 x 1944, 4MP: 2560 x 1440
Video Output	5MP: TVI/AHD 4MP: TVI/AHD/CVI 960h Analog
Image System	PAL/NTSC
Electronic Shutter	Auto; 1 / 50s ~ 1 / 100000s ( PAL ); 1 / 60s ~ 1 / 100000s ( NTSC )
IR Distance	65ft
Frame Rate	5MP @20fps, 4MP @30FPS
Min. Illumination	Color: 0.01 lux at F1.2, AGC ON; B/W : 0 lux with IR
Lens	3.6 mm ( 2.8 mm, Horizontal Field of View, 101°)
Lens Mount	M12
S / N Ratio	≥52dB ( AGC OFF )
Ingress Protection	IP66
Functions
Function Control	OSD / UTC
Day & Night	Yes (ICR)
Digital WDR	Yes
Digital NR	Yes (2nd NR)
AGC	Yes
Auto White Balance	Yes
BLC / HLC	Yes
Lens Shadow compensation	Yes
Defogging	No
Sharpness	Yes
Mirror Image	Yes
Smart IR	Yes
Image Setting	Yes
Defect Correction	Auto / Manual
Language	13 languages
Angle Adjustment	Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°
Others
Power Supply	DC12V ( ± 10% )
Power Consumption	IR OFF : < 1W; IR ON : < 3W
Working Environment	-22°F – 122°F, 10 % ~ 90 % ( -30 °C – 50 °C )
Dimensions ( mm )	Φ 87 x 108, ( Φ 3.43 x 4.25in )
Weight ( net )	Approx. .08lbs (.36kg)
