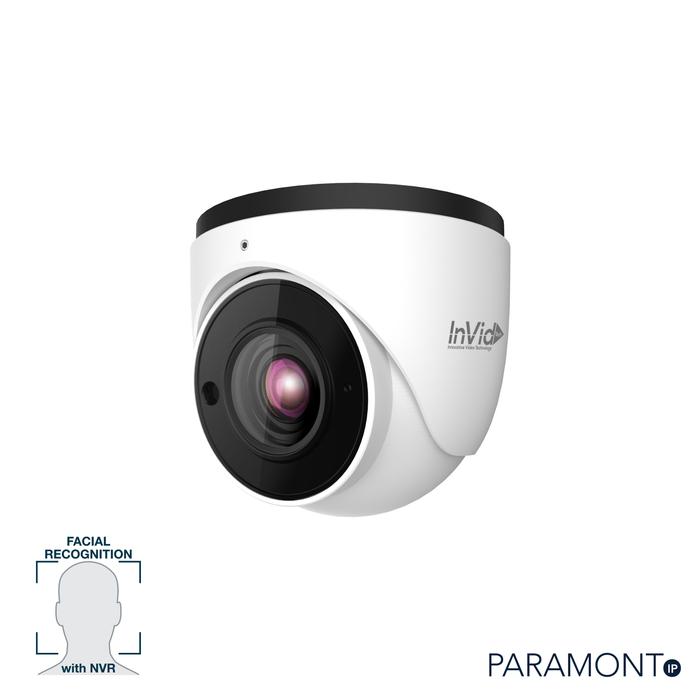

Camera Canada Invidtech PAR-P5TXIRA3312N: 5 Megapixel Turret, 3.3-12mm A/F Motorized, Facial Rec

5 Megapixel IP Plug & Play, Outdoor Turret, 3.3-12mm Auto-Focus Motorized, 164’ EXIR Range, CVBS Output, WDR, Built-in Mic, Audio Input , SD Card Slot, PoE/12VDC, Facial Rec

Danh mục: Camera Invidtech Canada

Mô tả
Sản phẩm liên quan

5 Megapixel IP Plug & Play, Outdoor Turret, 3.3-12mm Auto-Focus Motorized, 164’ EXIR Range, CVBS Output, WDR, Built-in Mic, Audio Input , SD Card Slot, PoE/12VDC, Facial Rec

Features

5 Megapixel (2592×1944) Resolution
Motorized Auto-Focus 3.3-12mm Lens
Facial Recognition Capable with Compatible NVR
H.265/H.264/MJPEG Compression
True Day/Night
30 FPS Recording and Live
True WDR 120dB
IR Range up to 164’
CVBS Video Output
TF Card Local Storage, 128GB
Audio Input: Built-In Mic
IP66 Weather Resistant
12VDC/PoE Operation
ONVIF
Smart Analytics
Free iOS & Android Apps for Smart Phones & Tablets
Free Central Management Software (CMS) to manage multiple units & sites from a single platform
Free MAC client software available, through the Paramont NVR, to manage your system from your Apple computer

Camera	PAR-P5TXIRA3312N
Image Sensor	1 / 2.5 “CMOS
Image Size	2592×1944
Electronic Shutter	1 / 25 s ~ 1 / 100000 s
Iris Type	Fixed Iris
Min. Illumination	0.036 lux @F2.0, AGC ON; 0 lux with IR
Lens	3.3 ~ 12 mm @F1.4, horizontal field of view:93.9° ~ 34.8°
Lens Mount	Φ14
Day & Night	ICR
Wide Dynamic Range	120dB
BLC	Yes
HLC	Yes
Digital NR	2D / 3D DNR
Angle Adjustment	Pan : 0°~360°, Tilt : 0°~80°, Rotation : 0°~360°
Video Compression	H.265 / H.264 / MJPEG
H.265 Compression Standard	Main Profile @Leve4.1 High Tier
Resolution	5MP ( 2592 × 1944 ), 4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240
Main Stream	60Hz : 5MP(1~30fps)/4MP(1~30fps)/ 2K(1~30fps)/ 3MP(1~30fps)/ 1080P(1~30fps)/ 720P(1~30fps)/ 50Hz : 5MP(1~25fps)/ 4MP（1~25fps）/ 2K（1~25fps）/ 3MP（1~25fps）/ 1080P（1~25fps）/ 720P（1~25fps）
Bit Rate	128 Kbps ~ 10 Mbps
Encode Mode	VBR / CBR
Quality	Five levels under VBR; Freely adjustable under CBR
Image Settings	ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser
Audio Compression	G711A / U
ROI	Each ROI to be configured separately
Interfaces
Network	RJ45
Audio	MIC IN × 1, Built-in Mic
Video Output	CVBS video output ( BNC × 1 )
Storage	Built-in micro SD card slot; up to 128GB
Functions
Remote Monitoring	Web browsing, CMS remote control
Online Connection	Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission
Network Protocol	TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
Interface Protocol	ONVIF, GB-T/28181-2011
Storage	Network remote storage; local storage
Smart Alarm	Motion alarm
Smart Analysis	Yes
PoE	Yes
IR Distance	164’
Water-proof	IP67
Others
Power Supply	DC 12V / PoE
Power Consumption	< 9.5W
Operating Environment	– 30 °C ~ 60 °C, humidity: < 95 % (non-condensing)
Dimensions ( mm )	Φ 4.39 x 3.92” (Φ111.5 × 99.6)
