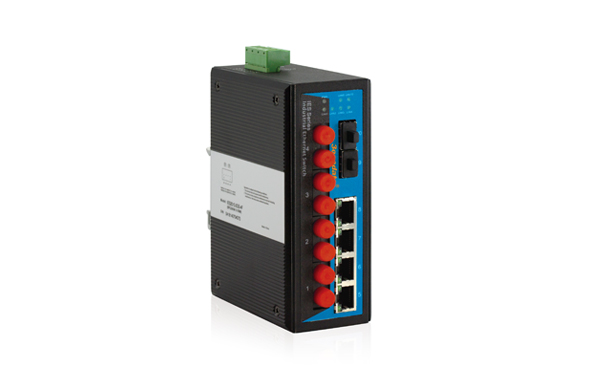

Switch công nghiệp 4 cổng Ethernet+2 cổng quang+2 cổng quang SFP IES2010-2GS-4F

Mã: Model : IES2010-2GS-4F Danh mục: Switch công nghiệp 3Onedata

Mô tả
Sản phẩm liên quan

1.Support 4 * 10/100M Ethernet ports, 4 * 100M optic fiber ports(SC/ST) and 2 gigabit Ethernet ports (SFP slots)

2.Support IEEE802.3/802.3u /802.3x

3.Support 10/100M, half/full duplex, MDI/MDI-X

4.Support broadcast storm shield

5.DC12～48V Power input

6.Support industrial grade 4 level

7.IP30 protection, metal shell, DIN Rail mounted

Technology
Standard: IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x
Flow control: IEEE802.3x flow control, Back-pressure based flow control
Exchange attribute
100M forward speed: 148810pps
1000M forward filter speed: 1488100pps
Transmit mode: store and forward
System exchange bandwidth: 5.6G
MAC address table: 8K
Memory: 1M
Interface
Electric port: RJ45 connector, 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect;
100M fiber port: 100Base-FX, SC/ST/FC connector, support single mode (20/40/60/80Km optional), multi mode (2Km), wavelength: 1310nm, 1550nm
1000M fiber port: 1000Base-FX (SFP port, LC connector)
Transfer distance
Twisted cable: 100M (standard CAT5/CAT5e cable)
Multi-mode: 1310nm, 2/5Km
Single-mode: 1310nm, 20/40/60Km
1550nm, 80/100/120Km
LED indicator
Interface indicator: Link (1~10)
Power supply indicator: PWR
Power supply
Input Voltage: 24VDC(12～48VDC)
Type of input: 4 bits 7.62mm terminal block
Support dual power supply redundancy
Support over-current protection
Working environment
Working temperature: -40～75℃
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation)
Mechanical Structure
Shell: IP30 protection grade, metal shell
Installation: DIN-Rail mounted
Size (W×H×D): 136mm×52mm×105mm
Weight: 800g
Industry Standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS
Warranty: 5 years
Packing list
1. 3onedata Industrial Ethernet Switch IES2010-2GS-4F(plus terminal block) × 1
2. User manual × 1
3. Certificate of quality × 1
4. Warranty card × 1

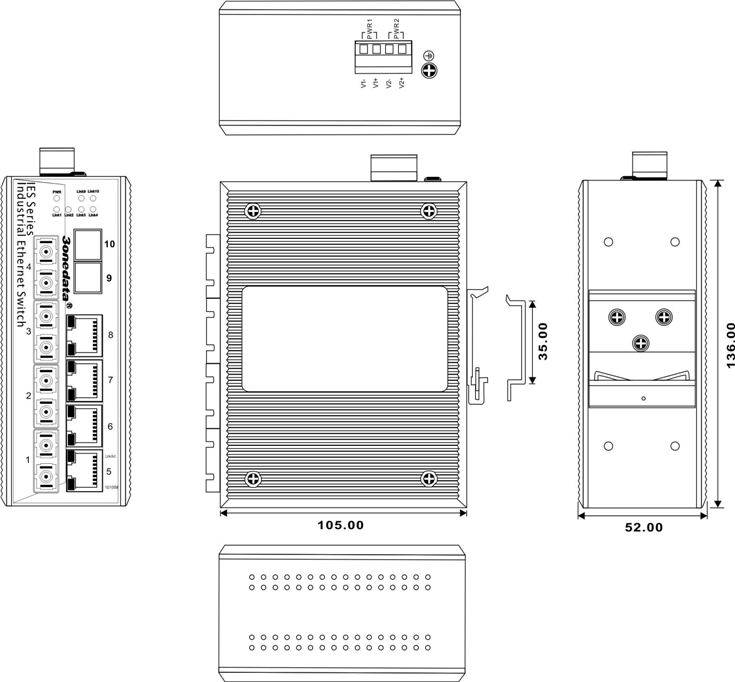

ies2010-2gs-4f-kt

ies2010-2gs-4f-datasheet

ies2010-2gs-4f-usermanual

IES2010-2GS-4F(M):

4-port 10/100Base-T(X) + 4-port 100Base-FX Multi-mode SC/ST/FC + 2-port 1000Base-FX(SFP socket), 12~48VDC

IES2010-2GS-4F(S):

4-port 10/100Base-T(X) + 4-port 100Base-FX Single-mode SC/ST/FC + 2-port 1000Base-FX(SFP socket), 12~48VDC

IES2010-2GS-4F(SS):

4-port 10/100Base-T(X) + 4-port 100Base-FX Single-mode, single fiber SC/ST/FC+ 2-port 1000Base-FX(SFP socket), 12~48VDC
