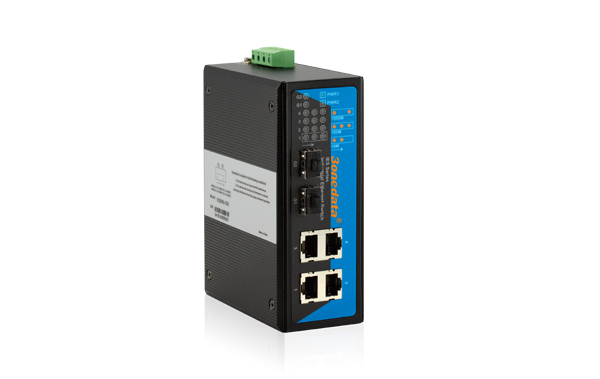

Switch công nghiệp 4 cổng Gigabit Ethernet + 2 cổng quang SFP IES206G-2GS

Technology
Standard: IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x
Flow control: IEEE802.3x flow control, Back-pressure based flow control
Exchange attribute
100M forward speed: 148810pps
1000M forward filter speed: 1488100pps
Transmit mode: store and forward
System exchange bandwidth: 12G
MAC address table: 1K
Memory: 1M
Interface
Electric port: RJ45 connector, 10Base-T/100Base-TX/1000Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect;
1000M fiber port: 1000Base-FX (SFP port, LC connector)
Transfer distance
Twisted cable: 100m (standard CAT5/CAT5e cable)
LED indicator
Ethernet port: 1, 2, 3, 4
Fiber port: G1, G2
Power: PWR1/PWR2
Power supply
Input Voltage: 24VDC(12～48VDC)
Type of input: 4 bits 7.62mm terminal block
Support dual power supply redundancy
Support over-current protection
Support reverse connection protection
Consumption
No-load power consumption:1.440W@24VDC
Full-load power consumption: 4.344W@24VDC
Working environment
Working temperature: -40～75℃
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation)
Mechanical Structure
Shell: IP40 protection grade, metal shell
Installation: DIN-Rail mounted
Weight: 690.8g

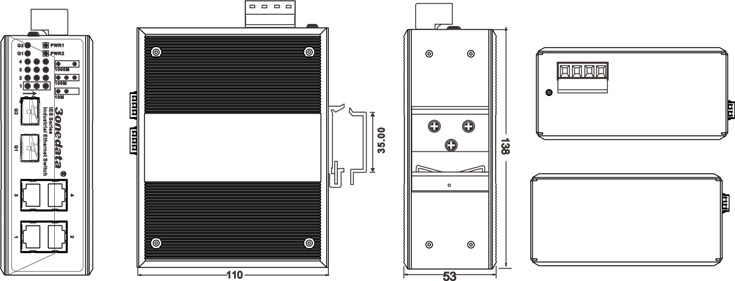

Dimension（W×H×D）:138mm×53mm×110mm
Industry Standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS, UL508 (Pending)
Warranty: 5 years
Packing list
1. 3onedata Industrial Ethernet Switch IES206G-2GS(plus terminal block) × 1
2. User manual × 1
3. Certificate of quality × 1
4. Warranty card × 1
