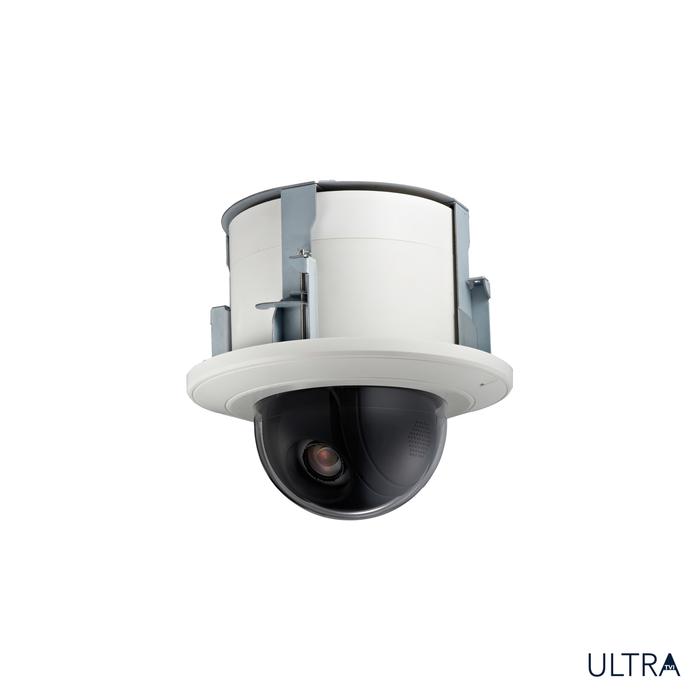

Camera Canada Invidtech ULT-C2PTZ25R: 2 Megapixel PTZ, 25x Zoom

Model Number

ULT-C2PTZ25R

Image Sensor

1/2.8” CMOS

Effective Pixel

1920×1080

Frame Rate

60Hz:30fps(1920×1080)

Min. Illumination

Color: 0.005Lux@(F1.6,AGC ON), B/W: 0.001Lux@(F1.6,AGC ON)

Wide Dynamic Range

120dB

Shutter Time

NTSC: 1-1/10,000s

Focal Length

4.8 – 120mm, 25X

Optical Zoom

25X

Digital Zoom

16x

HD Video Output

Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)

White Balance

Auto / Manual / ATW / Indoor / Outdoor

AGC

Auto / Manual

S / N Ratio

≥ 50dB

3D DNR

Support

Backlight Compensation

Support

Day & Night

IR Cut Filter

Privacy Mask

8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen

Focus Model

Auto / Semiautomatic / Manual

Zoom Speed

Approx.3.6s(Optical Wide-Tele)

Angle of View

57.6-2.5 degree(Wide-Tele)

Min. Working Distance

10-1500mm (Wide-Tele)

Aperture

F1.6-F3.5

Park Action

Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan

Scheduled Task

Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan

Pan Range

360° endless

Pan Speed

Pan Manual Speed: 0.1°-250°/s, Pan Preset Speed: 300°/s

Tilt Range

-5°-90° (Auto Flip )

Tilt Speed

Tilt Manual Speed: 0.1°-150°/s, Tilt Preset Speed: 200°/s

Proportional Zoom

Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset

256

Patrol

8 patrols, up to 32 presets per patrol

Pattern

4 patterns, with the total recording time not less than 10 minutes

Power-off Memor

Support

PTZ Position Display

On / Off

Preset Freezing

Support

RS-485 communication diagnosis

Pelco-P, Pelco-D, OSD (UTC control) via DVR

RS-485 Interface

Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol

Power

24VAC, Max. 18W

Operating Temperature

-22°F-149°F (-30 °C-65°C)

Dimension

φ6.14”×9.57”

Weight

6.61Ibs
