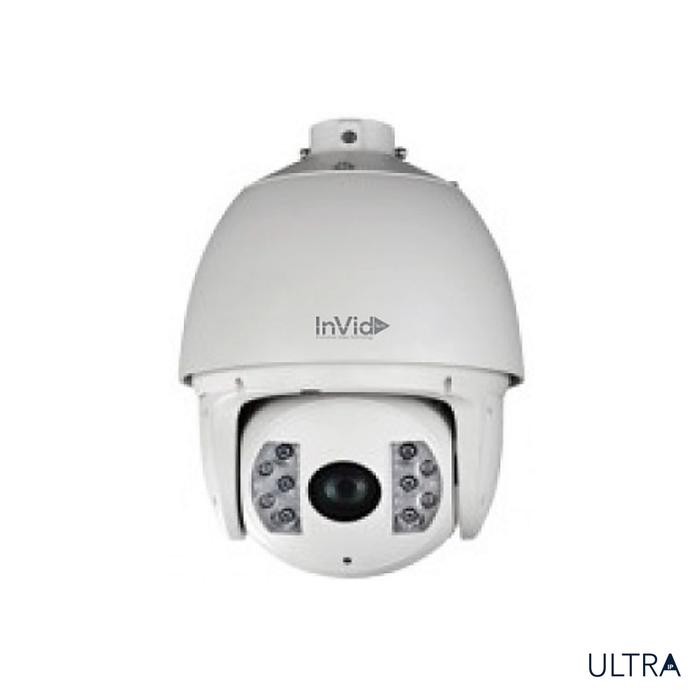

Camera Canada Invidtech ULT-P2PTZXIRT30: 2 Megapixel PTZ, 30x

Model

ULT-P2PTZXIRT30

Image Sensor

1/2.8” Progressive Scan CMOS

Effective Pixels

1320K pixels

Min. Illumination

Color 0.05Lux (F1.6, AGC ON), B/W 0.005Lux@(F1.6, AGC On); 0 Lux with IR

White Balance

Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

AGC

Auto/Manual

S/N Ratio

>50dB

Day & Night

IR Cut Filter

Digital Zoom

16X

Privacy Masking

Up to 24 zones, maximum 8 zones on a same image, multiple colors and mosaics optional

Backlight Comp

HLC/BLC

DNR

3D DNR (Digital Noise Reduction)

WDR

Digital WDR (Wide Dynamic Range)

Shutter Speed

50Hz 1~1/30,000s; 60Hz 1~1/30,000s

Focus Mode

Auto/Semiautomatic/Manual

Enhancement

Smart Defog on/off

Focal Length

4.3 ~ 129.0mm, 30x

Zoom Speed

Approx.3s(Optical Wide-Tele)

Angle of View

57.4 ~ 2.8degree (Wide-Tele)

Min. Working Distance

10 ~ 1,500mm (Wide-Tele)

Aperture Range

F1.6 ~ F5.0

Smart Tracking

Support

Pan / Tilt Range

Pan 360° endless; Tilt -2° ~ 90° (Auto-Flip)

Pan / Tilt Speed

Pan Manual Speed 0.1° ~ 160° /s, Pan Preset Speed 160° /s Tilt Manual Speed 0.1° ~ 120° /s, Tilt Preset Speed 120° /s

Proportional Zoom

Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset

256

Patrol

8 patrols, up to 32 presets per patro

Pattern

4 patterns, with the recording time not less than 10 minutes per pattern

Power-off Memory

Support

Park Action

Preset/Patrol/Pattern/Pan scan/Tilt scan/Random scan/Frame scan, Panorama scan

PTZ Position Display

On/Off

Preset Freezing

Support

Scheduled Task

Preset/Patrol/Pattern/Pan scan/Tilt scan/Random scan/Frame scan/Panorama scan/Dome reboot/Self-test/Alarm output

Smart IR

Support

IR Distance

Up to 600 ft

IR Intensity

Automatically adjusted, depending on the zoom ratio

Alarm Input

7

Alarm Output

2 relay outputs, alarm response actions configurable

Alarm Action

Preset, Patrol, Pattern, SD/SDHC card recording, Relay output, Notification on Client

Audio Input

Audio input (LINE input), 2~2.4[p-p]; output impedance 1KΩ, ±10%

Audio Output

Line level, impedance 600Ω

Ethernet

10Base-T/100Base-TX, RJ45 connector

Max. Image Res

1920×1080

Frame Rate

60Hz 30 fps (1920 x 1080), 30 fps (1280 x 960) 30 fps (1280 x 720)

Image Comp

H.264/MPEG4, H.264 encoding with Baseline/Main/High profile

ROI encoding

Support 24 areas with adjustable levels

Audio Compression

G.711u/G.711a/G.726

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE

Simultaneous Live View

Up to 10

Streams

Three Streams

Mini SD Memory Card

Built-in SD/SDHC Slot, up to 128GB, support manual/alarm/edge recording

User/Host Level

Up to 32 users, 3 Levels Administrator, Camera control, Live view only

Security Measures

User authentication (ID and PW), Host authentication (MAC address); IP address filtering

Application prog

Open-ended API, support Onvif, PSIA and CGI

Web Browser

IE 7, IE 8, IE 9, Chrome 8+, Firefox 3.5+, Safari 5+, support multi-language

RS-485 Protocols

Pelco-P, Pelco-D, Hikvision, self-adaptive

Working Temp

24VAC -40°C~65°C (-40°F~149°F) High-PoE -30°C~65°C (-22°F~149°F)

Humidity

90% or less

Protection Level

IP66 standard (outdoor dome) TVS 4,000V lighting protection, surge protection and voltage transient protection

Dimensions

Φ245x399mm (Φ9.65”x15.71”)

Weight (approx.)

5.5kg (12.13lbs)

Mount Option

Long-arm wall mount, Corner mount, Pole Mount, Power box mount

Power

24VAC Max. 65W (heater 45W) High-PoE Max. 50W (heater 20W)
