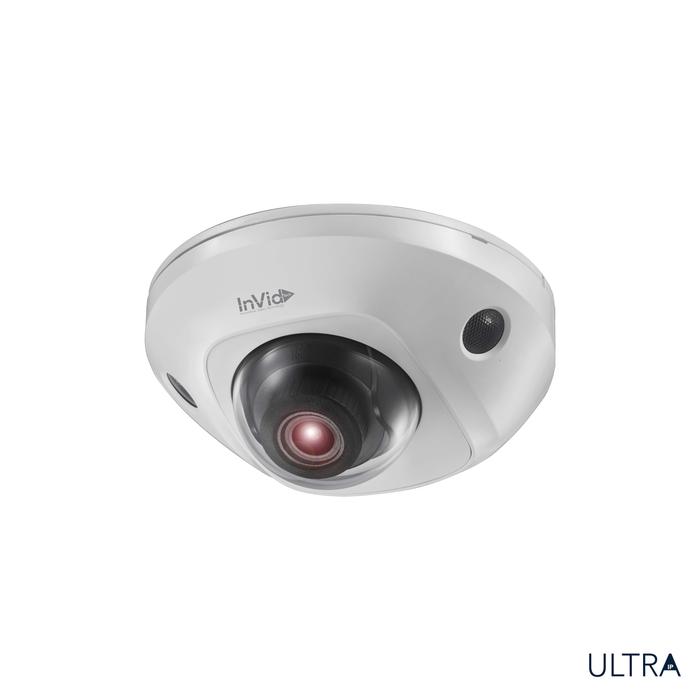

Camera Canada Invidtech ULT-P4LIRN: 4 Megapixel Low Profile Camera, Fixed Lens

Model Number

ULT-P4LIRN

Image sensor

1/2.9” progressive scan CMOS

Min. illumination

0.01lux @ F1.2, AGC on, 0 lux with IR

Shutter time

1/30s ~ 1/100,000s

Lens

2.8mm @ F2.0

Day & night

ICR

Digital noise reduction

3D DNR

Wide Dynamic Range

True WDR, 120db

Video compression

H.264 / MJPEG / H.264+ / H.265 / H.265+

Alarm

1/1

Audio

1/1

Max. image resolution

2688 x 1520

Frame rate

30fps (2688 x 1520)

Alarm trigger

Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception, storage error

Protocols

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos

System compatibility

ONVIF, PSIA, CGI

General functionalities

Flickerless, dual stream, heartbeat, mirror, user authentication, video mask, watermark

Communication interface

1 RJ45 10M / 100M ethernet port

On-board storage

Built-in Micro SD card slot, up to 128 GB

Operating conditions

-22 °F ~140 °F (-30 °C ~ 60 °C), humidity 95% or less (non-condensing)

Power supply

DC12V ± 10%, PoE (802.3af)

Power consumption

Max. 9.5W

Ingress protection level

IP66, IK08

IR range

Up to 30ft

Dimensions

4.33″ x 2.22″

Weight

250g (0.88 lbs)
