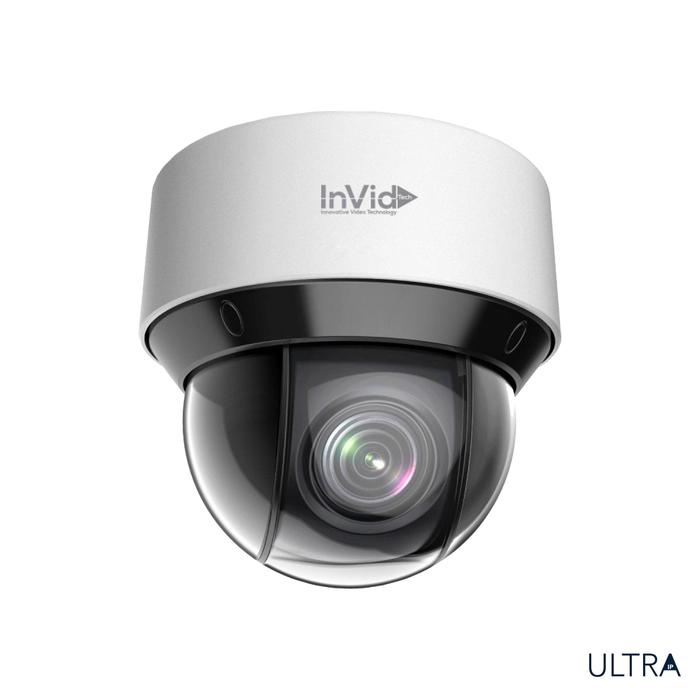

Camera Canada Invidtech ULT-P4PTZXIR25X: 4 Megapixel IP PTZ, 25x Zoom

4 Megapixel IP PTZ, 25x Zoom, WDR, 150’ IR Distance, 12VDC/PoE

Mô tả
Sản phẩm liên quan

4 Megapixel IP PTZ, 25x Zoom, WDR, 150’ IR Distance, 12VDC/PoE

Features

4 Megapixel (2560 x 1440) Resolution
H.265/H.265+/H.264/H.264+ Compression
True Day/Night
25x Optical Zoom
True WDR
IR Range up to 150’
Audio Input/Output
IP66 Weather Resistant
SD Card Storage, 128 GB
12VDC/PoE Operation
Free iOS & Android Apps for Smart Phones & Tablets
Free Central Management Software (CMS) to manage multiple units & sites from a single platform
Free MAC client software available

Model Number	ULT-P4PTZXIR25X
Image sensor	1/2.5” Progressive Scan CMOS
Min. illumination	Color: 0.005 Lux@(F1.6, AGC On) ; B/W: 0.001Lux@(F1.6, AGC On) ; 0 lux with IR
White balance	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC	Auto / Manual
Digital noise reduction	3D DNR
Backlight compensation	Support
Wide Dynamic Range	True WDR
Shutter speed	1/1~ 1/30,000s
Day & Night	IR Cut Filter
Digital zoom	16X
Focus mode	Auto / Semiautomatic / Manual
Privacy Mask	8 privacy masks programmable
Focal length	4.8 ~ 120mm, 25X
Zoom speed	Approx. 3.2s (Optical Wide-Tele)
Angle of view	57.6 – 2.5 degree (Wide-Tele)
Min. working distance	10 ~ 1500mm (Wide-Tele)
Aperture range	F1.6 ~ F3.5
Proportional zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of preset	300
Patrol	8 patrols, up to 32 presets per patrol
Park action	Pattern/Pan scan/Tilt scan/Frame scan/Panorama scan/Random scan
Power-off memory	Support
PTZ position display	Support
Scheduled task	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan/ Dome reboot/ Self-test action / Alarm output
Alarm I/O	2/2
IR distance	Up to 150 ft
IR intensity	Automatically adjusted, depending on the zoom ratio
Ethernet	10Base-T / 100Base-TX, RJ45 connector
Max. image resolution	2560 × 1440
Frame rate	60Hz: 30 fps (2560 x 1440), 60 fps (1920 x 1080)
Image compression	H.265+ / H.265 / H.264+ / H.264 / MJPEG
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP,
	TCP, UDP,IGMP, ICMP, DHCP, PPPoE
Simultaneous live view	Up to 6
Audio	1/1
SD memory card	Built-in micro SD card slot, up to 128GB
Security measures	User authentication (ID and PW), Host authentication (MAC address), IP address filtering
Power	12VDC/PoE+(802.3at), Max 18W
Working temperature	-30°C ~ 65°C (-22°F ~ 149°F)
Humidity	95% or less
Protection level	IP66 (outdoor model); TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions	Φ169×161mm (Φ6.67”×6.34”)
Weight	Approx. 2Kg (5.40lbs)
