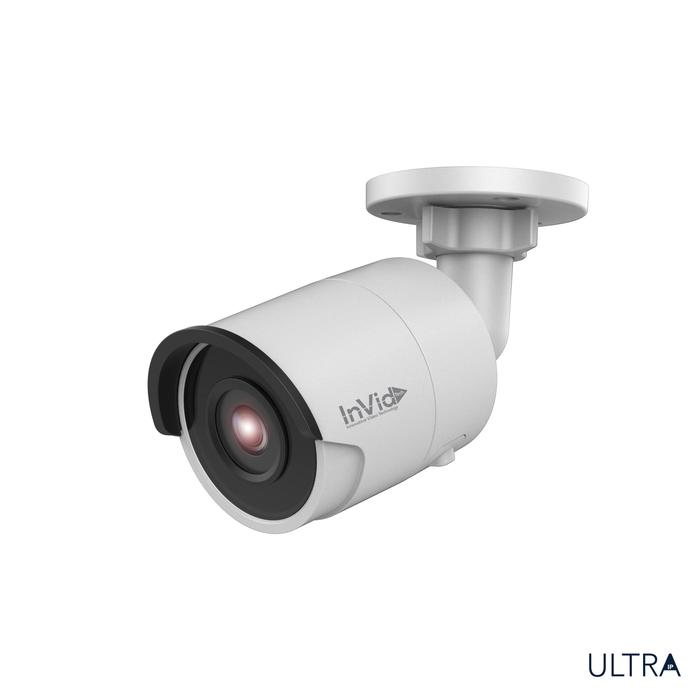

Camera Canada Invidtech ULT-P6BIRN: 6 Megapixel, IP Plug & Play Bullet

Camera

ULT-P6BIRN

Image Sensor

1/2.9” Progressive Scan CMOS

Min. illumination

Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Auto-Iris

No

Day & Night

IR Cut Filter

Digital Noise Reduction

3D DNR

WDR

120 dB

3-Axis Adjustment

PAN: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Focal Length

2.8/4/6/8 mm

Aperture

F2.0

Focus

Auto

FOV

2.8mm, horizontal FOV: 97°, vertical FOV: 63°, Diagonal FOV: 120°, 4mm, horizontal FOV: 78°, vertical FOV: 50°, Diagonal FOV: 97°, 6mm, horizontal FOV: 60°, vertical FOV: 39°, Diagonal FOV: 75°, 8mm, horizontal FOV: 39.5°, vertical FOV: 26°, Diagonal FOV: 48°

Lens Mount

M12

IR

IR Range

Up to 30m

Wavelength

850nm

Compression Standard

Video Compression

Main Stream: H.265/H.264, Sub-Stream: H.265/H.264/MJPEG, Third Stream H.265/H.264

H.264 Type

Main Profile/High Profile

H.264+

Main Stream Supports

H.265 Type

Main Profile

H.265+

Main Stream Supports

Video Bit Rate

32 Kbps to 16 Mbps

Smart feature Set

Behavior Analysis

Line Crossing Detection, Intrusion Detection

Face Detection

Yes

Region Of Interest

Support 1 fixed region for main stream and sub-stream


Max. Resolution

3072 x 2048

Main Stream

50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25fps(1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps(1280 × 720, 640 × 360, 352 × 240)

Image Enhancement

BLC/3D DNR

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser

Day/Night Switch

Day/Night/Auto/Schedule

Network

Network Storage

Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

General Function

One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users, 3 Levels: Administrator, Operator, and user

Client

iVMS-4200, Hik-Connect, iVMS-5200

Web Browser

IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

Video Output

No

Communication Interface

1 RJ45 10M/100M self‐adaptive Ethernet port

On-board Storage

Built‐in microSD/SDHC/SDXC slot, up to 128 GB

SVC

H.264 and H.265 Encoding Support

Reset Button

Yes

General

Operating Conditions

‐22 °F to +140 °F (-30 °C to +60 °C), Humidity 95% or less (non‐condensing)

Power Supply

12 VDC ± 25%, Φ 5.5mm coaxial power plug PoE(802.3af, class 3)

Power Consumption And Current

12 VDC, 0.5 A, max. 6.0W PoE: (802.3af, 36V to 57V), 0.3 A to 0.2 A, max. 7.5W

Protection Level

IP67

Material

Metal

Dimensions

Camera: Φ 70 × 155mm (Φ 2.8” × 6.1”) Package: 216 × 121 × 118 mm (8.5” × 4.8” × 4.7”)

Weight

Camera: 0.9 lb. (410 g)
